APPLICATIONS INFORMATION

EVALUATION BOARD

The ADRF5040-EVALZ evaluation board shown in Figure 27 is

designed using proper RF circuit design techniques. Signal lines

at the RF port have 50 Ω impedance, and the package ground

leads and backside ground slug must be connected directly to

the ground plane. The evaluation board is available from Analog

Devices, Inc. upon request.

RF1

RF2

VDD

V1

GND

V2

VSS

RF4

RFC

RF3

J4

J5

J2

J1

U1

J3

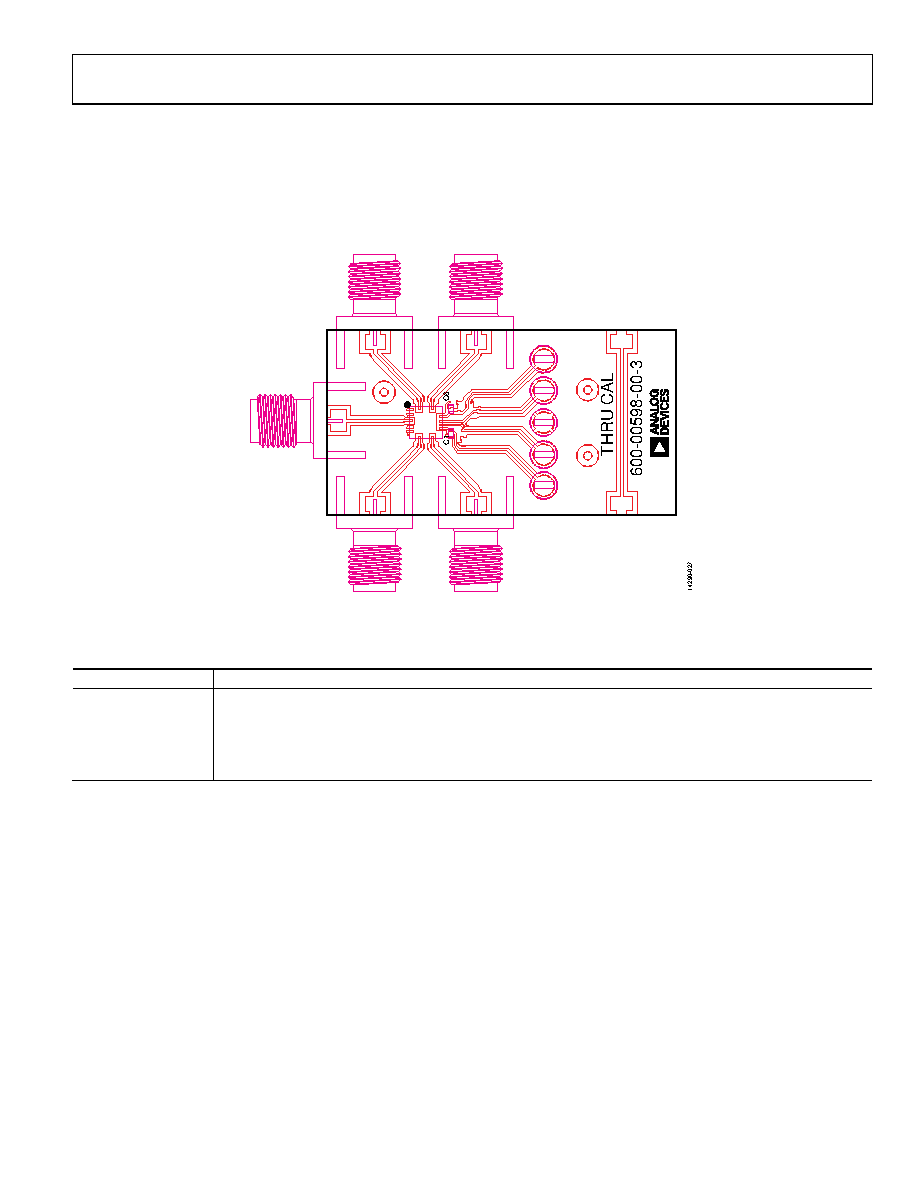

Figure 27. Evaluation PCB

Table 7. Bill of Materials for the ADRF5040-EVALZ Evaluation Board

Item

Description

J1 to J5

PC mount SMA RF connectors

TP1 to TP5

Through hole mount test points

C1, C6

100 pF capacitors, 0402 package

U1

ADRF5040 SP4T switch

PCB

600-00598-00-3 evaluation PCB, Rogers 4350 circuit board material
