TS4621B
Electrical characteristics
Doc ID 022194 Rev 2
23/48

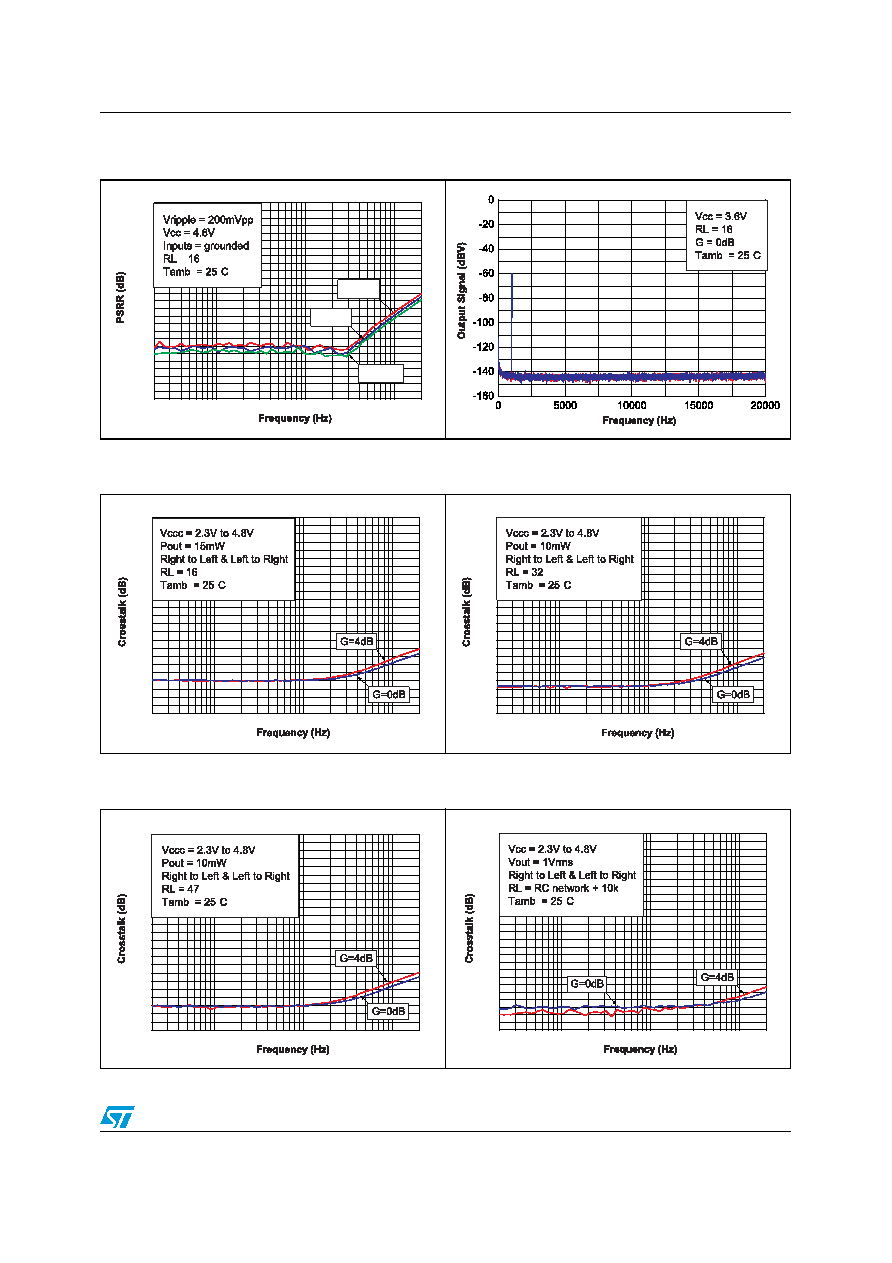

Figure 64.
PSRR vs. frequency
VCC = 4.8 V
Figure 65.
Output signal spectrum
100
1000
10000
-130
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
G=-6dB
G=0dB
G=4dB
20k
20
≥
Ω
°
Ω
°
Figure 66.
Crosstalk vs. frequency
RL = 16
Ω
Figure 67.
Crosstalk vs. frequency
RL = 32
Ω
100
1000
10000
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
20k
20
Ω
°
100
1000
10000
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
20k
20
Ω
°
Figure 68.
Crosstalk vs. frequency
RL = 47
Ω
Figure 69.
Crosstalk vs. frequency
RL = 10 k
Ω
100
1000
10000
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
20k
20
Ω
°
100
1000
10000
-130
-120
-110
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
20k
20
Ω
°
