Installation and Operation
 2015 Microchip Technology Inc.
DS50002364A-page 21
2.3.2
Test Results for MCP1663 - BOTTOM Circuit
The second circuit was developed for applications where an input voltage higher than
the typical working range is needed. Refer to Figure 2-7 for the maximum output
current that can be obtained for different input voltages.

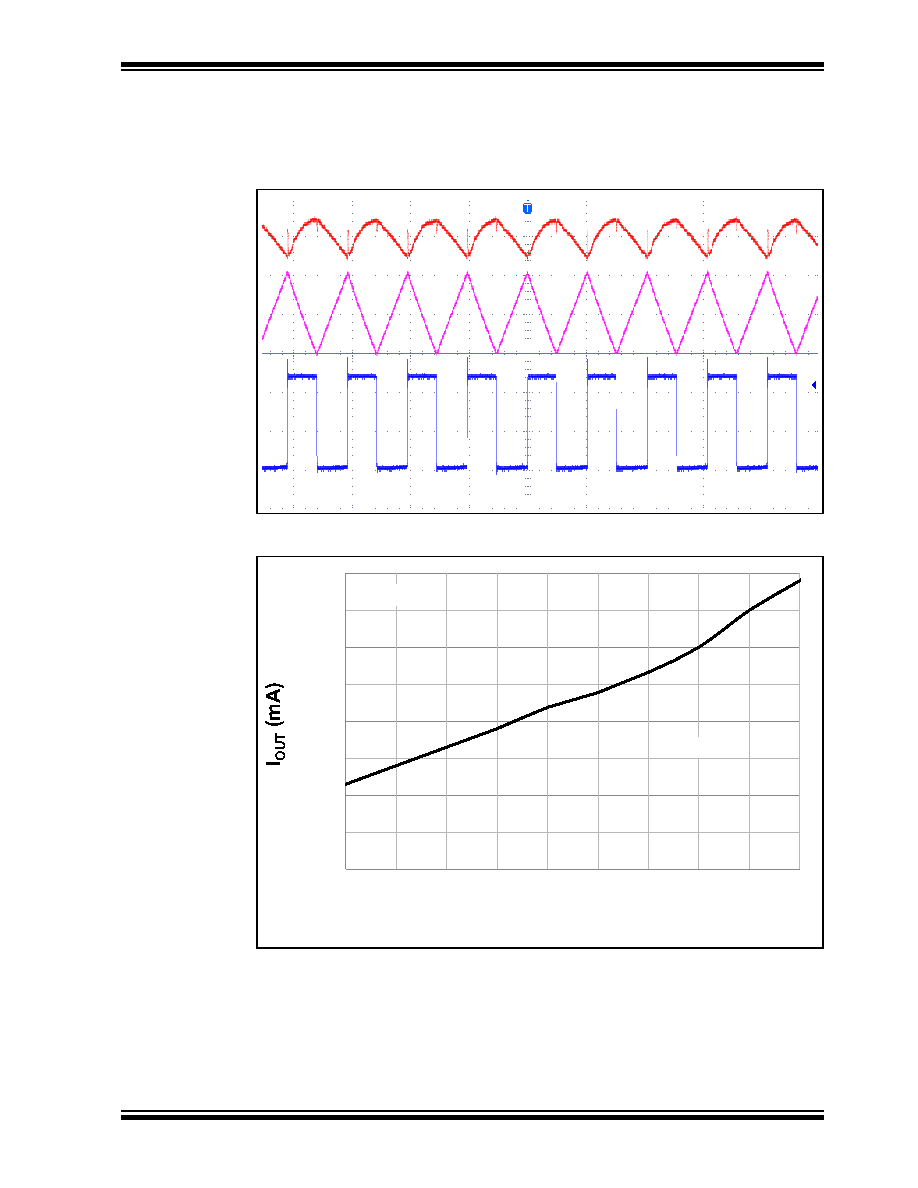

FIGURE 2-6:
MCP1663 24.0V VOUT High Load Operation Waveforms.
FIGURE 2-7:
MCP1663 Maximum IOUT vs. VIN.
VOUT 50 mV/div, AC Coupled
20 MHz BW
IL
500 mA/div
10 V/div
IOUT = 500 mA
2µs/div
VIN 12V
VSW
0
200
400
600
800
6
8
10
12
14
VIN (V)
VOUT = 24V
TA = 25°C
Note: VDD = 4.5V
