Page: 5/13

Environmental Characteristics (PWR)

Test Item

Specification

Test Method

Short Time Overload

±0.5%

JIS-C-5201-1 4.13

IEC-60115-1 4.13

RCWV*2.5 or Max Overloading Voltage whichever is lower for 5 seconds

Leaching

Individual leaching area ≥5%

Total leaching area ≥10%

JIS-C-5201-1 4.18

IEC-60068-2-58 8.2.1

-55℃~155℃, 5 cycles

Temperature Coefficient of

Resistance

As Spec.

JIS-C-5201-1 4.8

IEC-60115-1 4.8

+25/-55/+25/+125/+25℃

Load Life

(Endurance)

±(1%+0.05Ω)

JIS-C-5201-1 4.25

IEC-60115-1 4.25.1

RCWV, 70℃, 1.5 hours ON, 0.5 hours OFF,

total 1000 hours

Humidity (Steady State)

(Damp Heat with Load)

±(0.5%+0.05Ω)

JIS-C-5201-1 4.24

IEC-60115-1 4.24

40±2℃, 90~95%RH, RCWV 1.5 hours ON,

0.5 hours OFF, total 1000 hours

Resistance to Dry Heat

±0.5%

JIS-C-5202-7.2

96 hours @ +155℃ without load

Low Temperature

Operation

±0.5%

JIS-C-5202-7.1

1hour,-65℃ followed by 45 minutes of RCWV

Dry Heat

±(0.5%+0.05Ω)

JIS-C-5201-1 4.23

IEC-60115-1 4.23.2

at +155℃ for 1000 hrs. 2010, 2512 sizes: 2mm; Other sizes: 3mm

Bending Strength

±(1%+0.05Ω)

JIS-C-5201-1 4.33

IEC-60115-1 4.33

Bending once for 5 seconds. 2010, 2512 sizes: 2mm; Other sizes: 3mm

Resistance to Soldering

Heat

±(0.5%+0.05Ω)

JIS-C-5201-1 4.18

IEC-60115-1 4.18

260±5℃, 10±1seconds

Solderability

95% min coverage

JIS-C-5201-1 4.17

IEC-60115-1 4.17

245℃±5℃ for 3 seconds

Dielectric Withstand

Voltage

(Voltage Proof)

No breakdown or flashover

JIS-C-5201-1 4.7

IEC-60115-1 4.7

1.42 times Max. Operating Voltage for 1 minute

Insulation Resistance

>10GΩ

JIS-C-5201-1 4.6

IEC-60115-1 4.6

Max. Overload Voltage for 1 minute

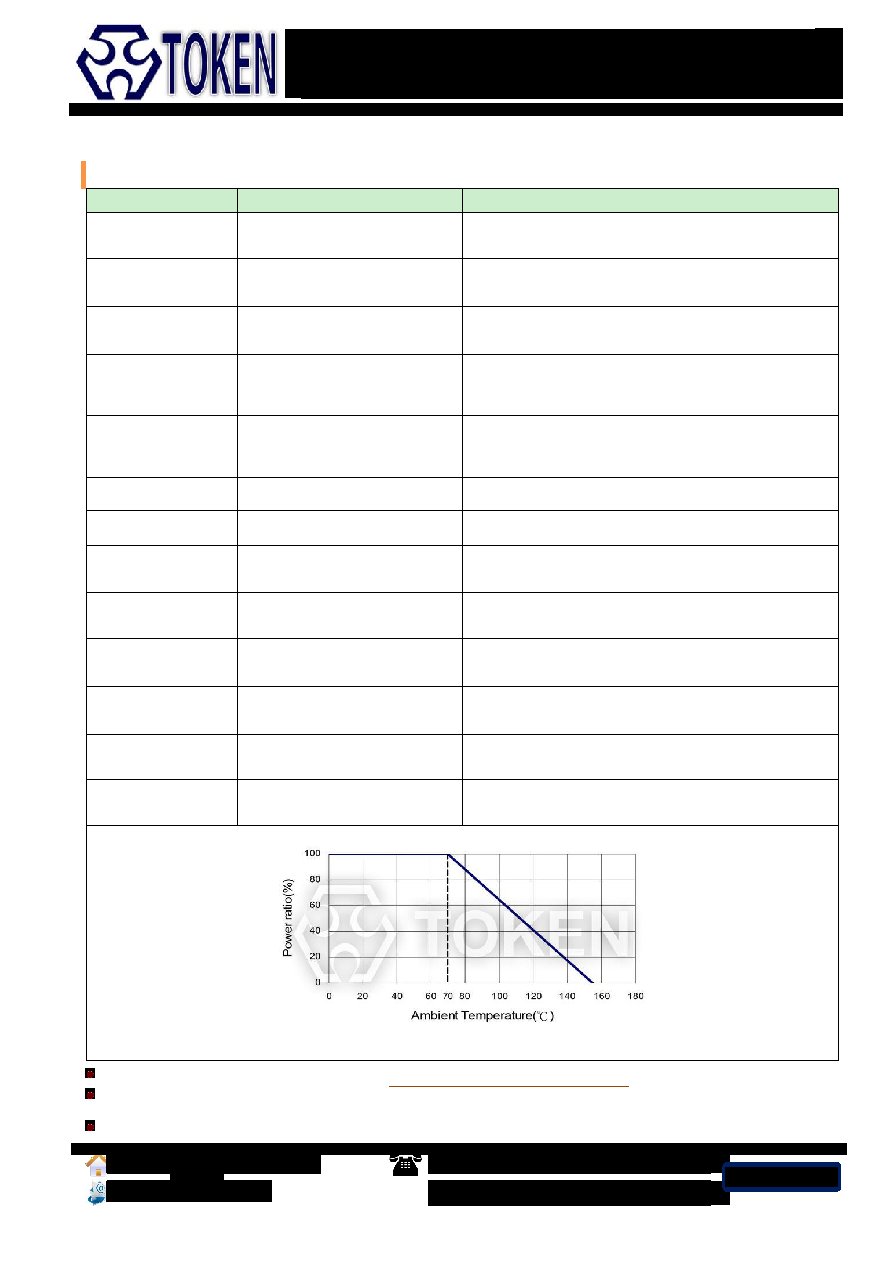

Power Derating Curve (PWR)

Note: Storage Temperature: 25±3℃; Humidity: <80%RH

Rated continuous Working Voltage (RCWV) =

√�������������������� ������������������������ × ���������������������������������������� �������������������� (����) or Max. Operating voltage

whichever is lower.

Storage Temperature: 15℃~28℃; Humidity < 80%RH;
