Paper Tape Specifications (Unit: mm) (PWR)

Codes

A (mm)

B (mm) W (mm) E (mm)

F (mm)

ΦD

T (mm)

PWR03 1.10±0.10 1.90±0.1

8.0±0.2

1.75±0.1 3.50±0.05 4.00±0.10 4.00±0.05 2.00±0.05

1.50

+0.1,-0

0.70±0.1

PWR05 1.60±0.10 2.40±0.2

8.0±0.2

1.75±0.1 3.50±0.05 4.00±0.10 4.00±0.05 2.00±0.05

1.50

+0.1,-0

0.85±0.1

PWR06 1.90±0.10 3.50±0.2

8.0±0.2

1.75±0.1 3.50±0.05 4.00±0.10 4.00±0.05 2.00±0.05

1.50

+0.1,-0

0.85±0.1

PWR13 2.90±0.10 3.50±0.2

8.0±0.2

1.75±0.1 3.50±0.05 4.00±0.10 4.00±0.05 2.00±0.05

1.50

+0.1,-0

0.85±0.1

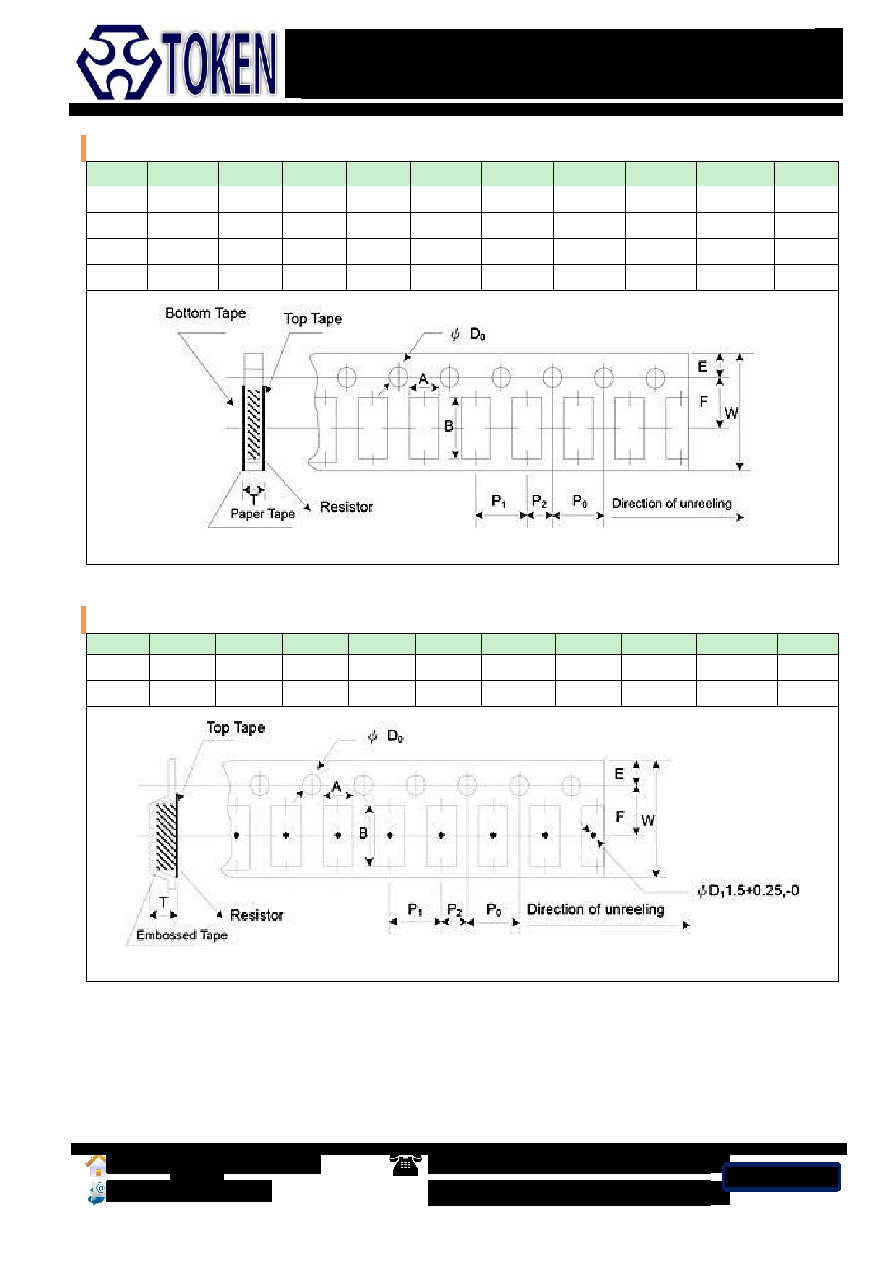

Paper Tape Specifications (PWR)

Emboss Plastic Tape Specifications (Unit: mm) (PWR)

Codes

A (mm)

B (mm)

W (mm)

E (mm)

F (mm)

ΦD

T (mm)

PWR10 2.8±0.10 5.5±0.10 12.0±0.3 1.75±0.1 5.5±0.05 4.00±0.10 4.00±0.1 2.00±0.05

1.50

+0.1, -0

1.2

+0

PWR12 3.5±0.10 6.7±0.10 12.0±0.3 1.75±0.1 5.5±0.05 4.00±0.10 4.00±0.1 2.00±0.05

1.50

+0.1, -0

1.2

+0

Embossed Plastic Tape (PWR)
