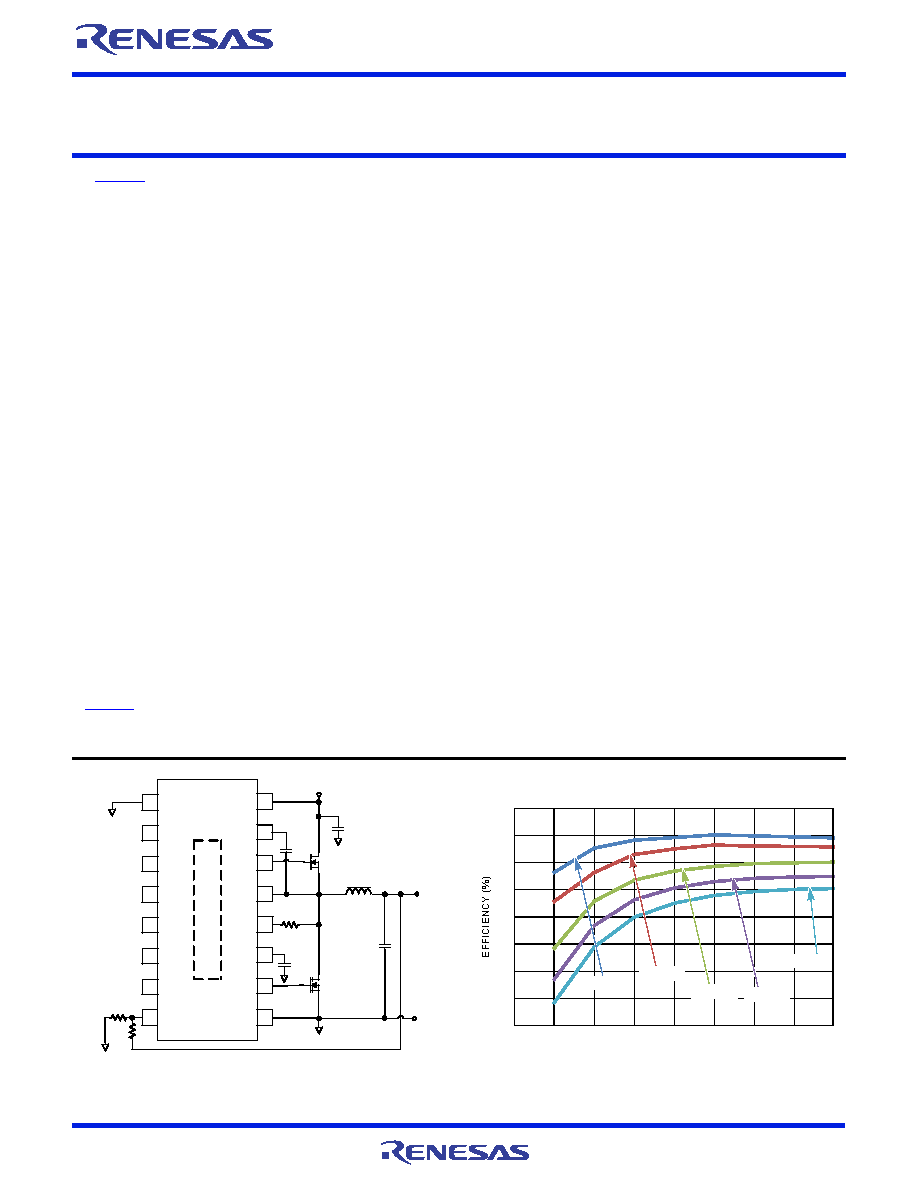

1 / 24 page  FN8666 Rev 4.00 Page 1 of 24 Apr 19, 2018 FN8666 Rev 4.00 Apr 19, 2018 ISL8117 Synchronous Step-Down PWM Controller DATASHEET The ISL8117 is a synchronous buck controller used to generate POL voltage rails and bias voltage rails for a wide variety of applications in industrial and general purpose segments. Its wide input and output voltage ranges make it suitable for telecommunication and after-market automotive applications. The ISL8117 uses the valley current modulation technique to bring hassle-free power supply design with a minimal number of components and complete protection from unwanted events. The ISL8117 offers programmable soft-start and enable functions along with a power-good indicator for ease of supply rail sequencing and other housekeeping requirements. In ideal situations, a complete power supply circuit can be designed with 10 external components and provide OV/OC/OT protections in a space conscious 16 Ld 4mmx4mm QFN or easy to assemble 6.4mmx5mm 16 Ld HTSSOP package. Both packages use an EPAD to improve thermal dissipation and noise immunity. Low pin count, fewer external components, and default internal values makes the ISL8117 an ideal solution for quick to market simple power supply designs. The ISL8117 uses internal loop compensation and single resistor settings for other functions such as operating frequency and overcurrent protection. Its current mode control with VIN feed- forward enables it to cover various applications even with fixed internal compensations. The unique DEM/Skipping mode at light-load dramatically lowers standby power consumption with consistent output ripple over different load levels. Related Literature For a full list of related documents, visit our website • ISL8117 product page Features • Wide input voltage range: 4.5V to 60V • Wide output voltage range: 0.6V to 54V • Light-load efficiency enhancement - Low ripple Diode Emulation mode with pulse skipping •Programmable soft-start • Supports prebiased output with SR soft-start • Programmable frequency: 100kHz to 2MHz •External sync •PGOOD indicator •Forced PWM • Adaptive shoot-through protection • No external current sense resistor - Use lower MOSFET rDS(ON) • Complete protection - Overcurrent, overvoltage, over-temperature, undervoltage • Pb-free (RoHS compliant) Applications • PLC and factory automation •Amusement machines •Security surveillance • Servers and data centers •Switchers and routers • Telecom and datacom •LED panels FIGURE 1. TYPICAL APPLICATION FIGURE 2. EFFICIENCY VIN VOUT ISEN PGOOD CLKOUT SS/TRK RT EN PHASE LGATE OCS VCC5V UGATE BOOT VIN EXTBIAS 16 1 2 3 4 5 6 7 10 11 12 13 14 15 MOD SYNC SGND FB 8 PGND 9 84 86 88 90 92 94 96 98 100 02468 10 12 14 16 OUTPUT CURRENT (A) VIN = 24V VIN = 36V VIN = 18V VIN = 48V VIN = 60V |
