FAST READ QUAD I/O OPERATION IN QPI MODE (FRQIO, EBh)

The FRQIO instruction is also used in QPI mode to read memory data at up to a 133MHz clock.

It is not required to set QE bit

to “1”.before Fast Read Quad I/O instruction in QPI mode.

The FRQIO instruction in QPI mode utilizes all four IO lines to input the instruction code so that only two clocks are

required, while the FRQIO instruction in SPI mode requires that the byte-long instruction code is shifted into the

device only via IO0 line in eight clocks. As a result, 6 command cycles will be reduced by the FRQIO instruction in

QPI mode. In addition, subsequent address and data out are shifted in/out via all four IO lines like the FRQIO

instruction. In fact, except for the command cycle, the FRQIO operation in QPI mode is exactly same as the FRQIO

operation in SPI mode.

The device supports the AX read operation by applying mode bits during dummy period. Mode bits consist of 8

bits, such as M7 to M0. Two cycles after address input are reserved for Mode bits in FRQIO execution. M7 to M4

are important for enabling this mode. M3 to M0 become don’t care for future use. When M[7:4]=1010(Ah), it enables

the AX read operation and subsequent FRQIO execution skips command code. It saves cycles as described in

Figure 8.9. When the code is different from AXh (

where X is don’t care), the device exits the AX read operation.

After finishing the read operation, device becomes ready to receive a new command. SPI or QPI mode configuration

retains the prior setting. Mode bit must be applied during dummy cycles. Number of dummy cycles in Table 6.11

includes number of mode bit cycles. If dummy cycles are configured as 6 cycles, data output will start right after

mode bits and 4 additional dummy cycles are applied.

If the FRQIO instruction is issued while an Erase, Program or Write cycle is in process (WIP=1) the instruction is

ignored and will not have any effects on the current cycle.

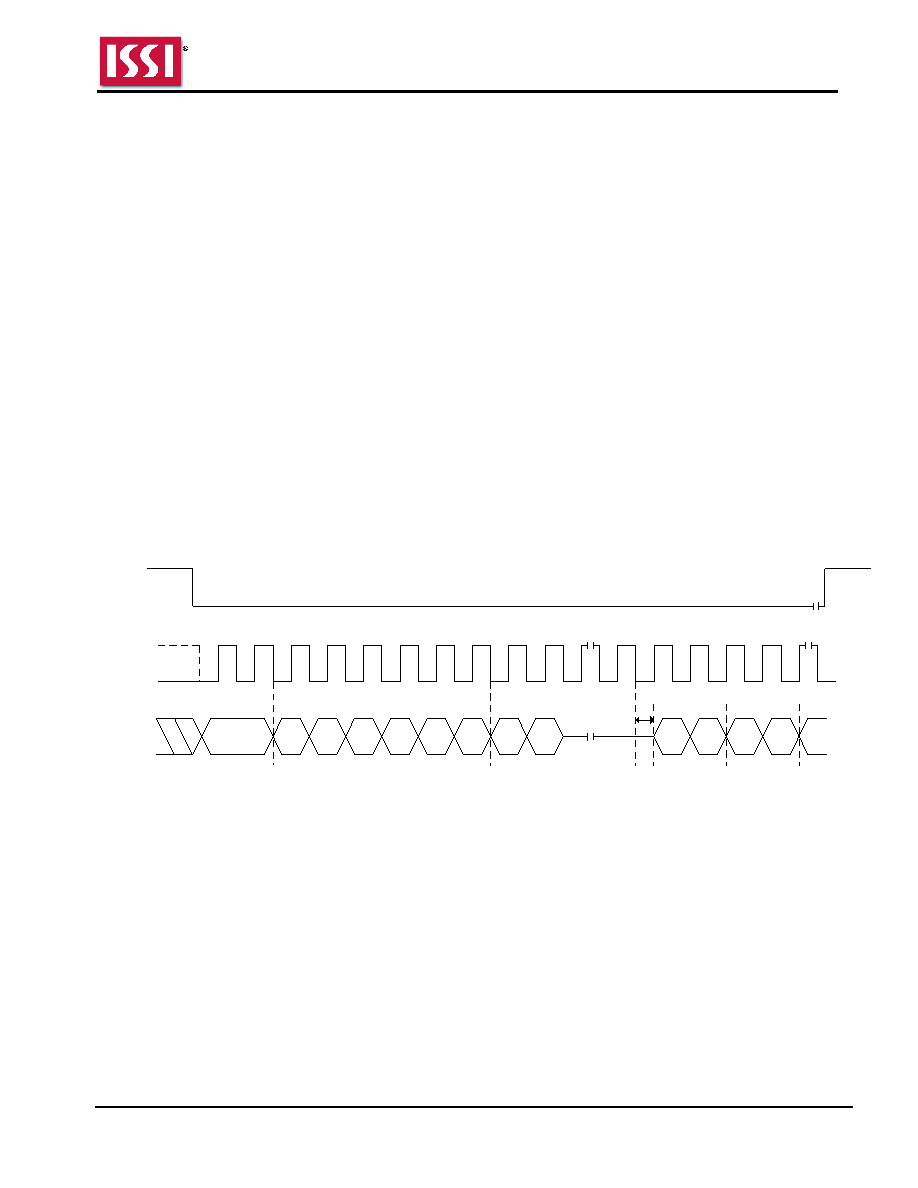

Figure 8.10 Fast Read Quad I/O Sequence In QPI Mode

EBh

CE#

SCK

IO[3:0]

6 Dummy Cycles

3-byte Address

...

Mode 3

Mode 0

23:20

7:4

3:0

7:4

3:0

Data 1

Data 2

19:16 15:12 11:8

7:4

3:0

...

Instruction

Mode Bits

7:4

3:0

...

Note: Number of dummy cycles depends on Read Parameter setting. Detailed information in Table 6.11 Read Dummy

Cycles.
