ADPA9002
Data Sheet
Rev. 0 | Page 8 of 19

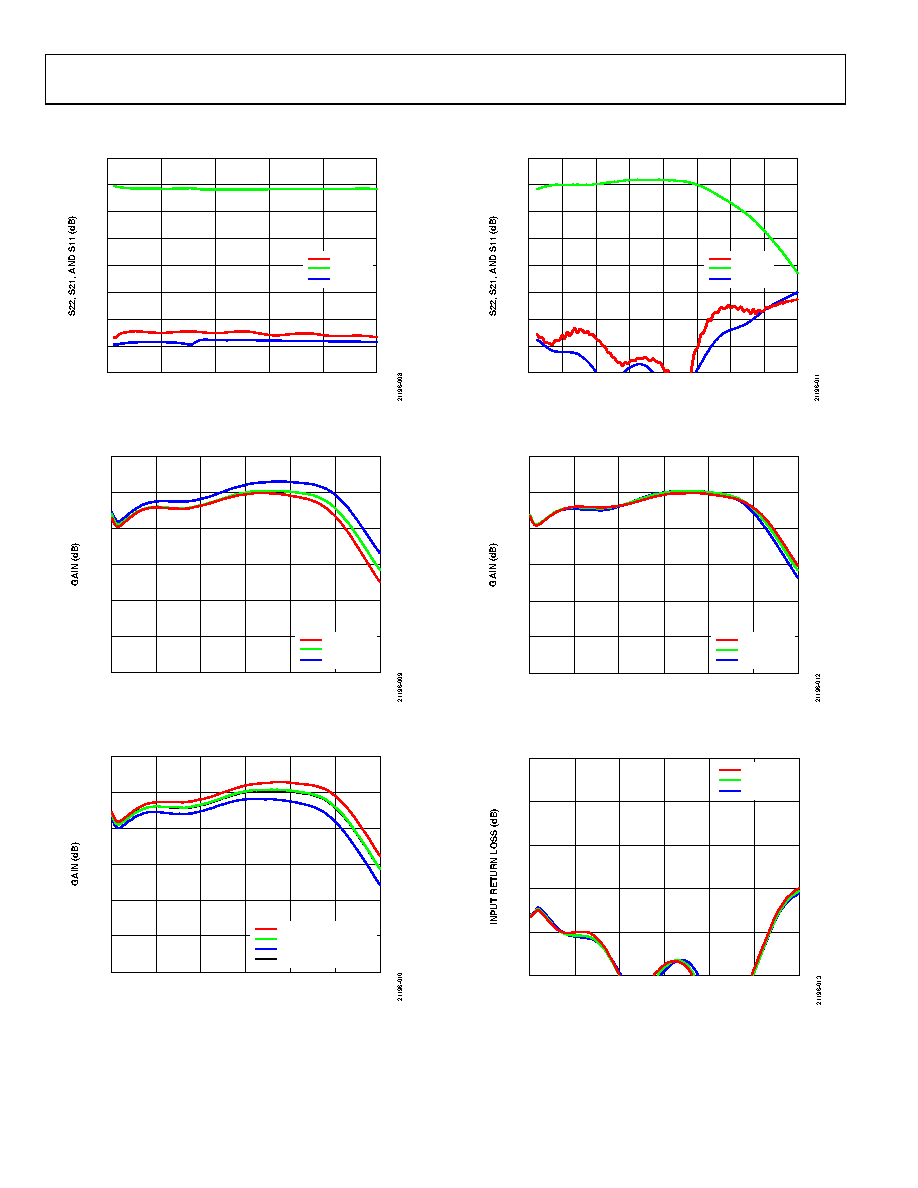

TYPICAL PERFORMANCE CHARACTERISTICS
20
–20
–10
–15
–5
0
5
10
15
0
100
200
300
400
500
FREQUENCY (MHz)
S11 (dB)
S21 (dB)
S22 (dB)
Figure 8. S22, S21, and S11 vs. Frequency, 10 MHz to 500 MHz,
Self Biased Mode, VDD = 12 V, VGG1 = GND
10
12
18
6
8
10
12
14
16
0
2
4
6
8
FREQUENCY (GHz)
TA = –40°C
TA = +25°C
TA = +85°C
Figure 9. Gain vs. Frequency for Various Temperatures, Self Biased Mode,
VDD = 12 V, VGG1 = GND
10
12
18
6
8
10
12
14
16
0
2
4
6
8
FREQUENCY (GHz)
300mA
400mA
385mA, SELF BIASED
500mA
Figure 10. Gain vs. Frequency for Various IDQ, Externally Biased Mode,
VDD = 12 V, Controlled VGG1
20
–20
–10
–15
–5
0
5
10
15
0
2
6
4
10
8
12
14
16
FREQUENCY (GHz)
S11 (dB)
S21 (dB)
S22 (dB)
Figure 11. S22, S21, and S11 vs. Frequency, 500 MHz to 16 GHz,
Self Biased Mode, VDD = 12 V, VGG1 = GND
10
12
18
6
8
10
12
14
16
0
2
4
6
8
FREQUENCY (GHz)
10V, 375mA
12V, 385mA
15V, 410mA
Figure 12. Gain vs. Frequency for Various VDD and Quiescent Currents,
Self Biased Mode, VGG1 = GND
10
12
0
–20
–16
–12
–8
–4
0
2
4
6
8
FREQUENCY (GHz)
TA = –40°C
TA = +25°C
TA = +85°C
Figure 13. Input Return Loss vs. Frequency for Various Temperatures,
Self Biased Mode, VDD = 12 V, VGG1 = GND
