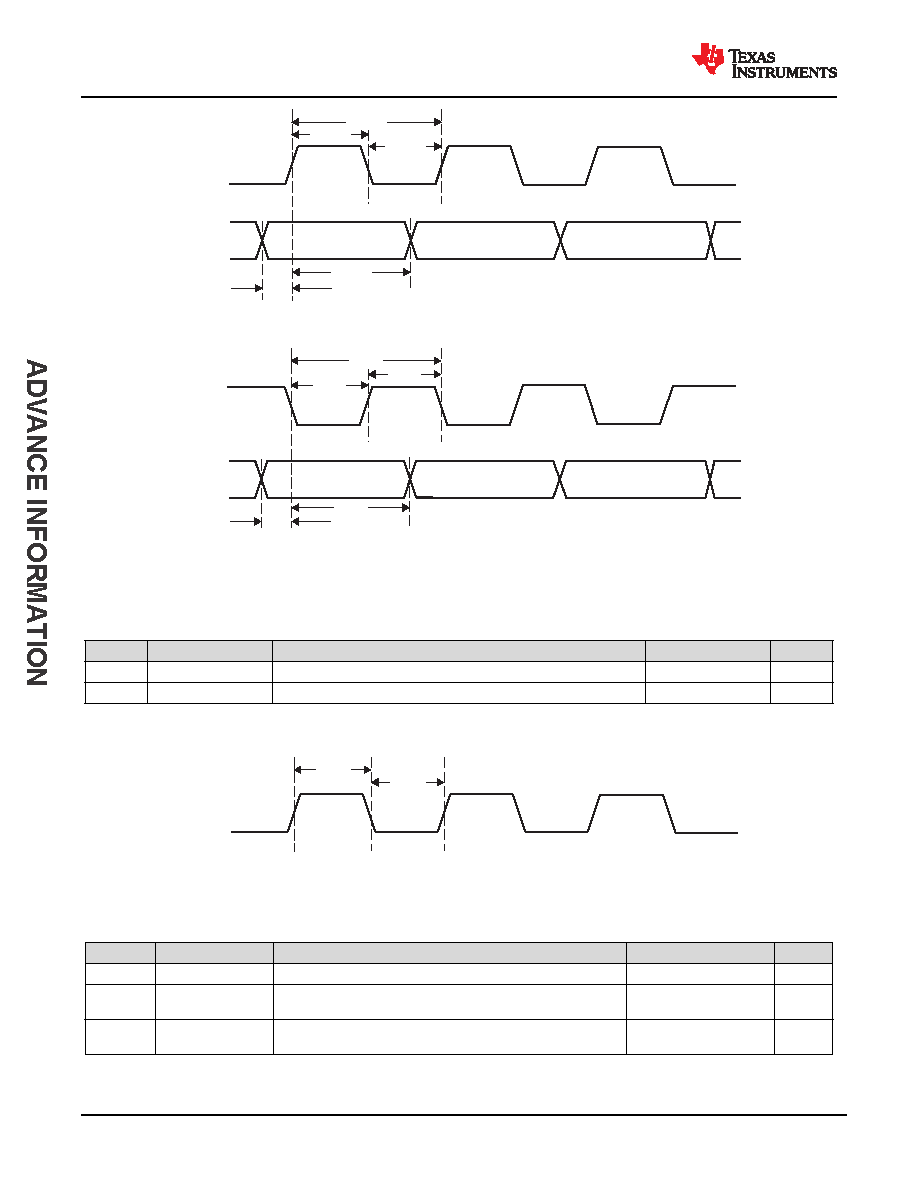

196 / 244 page  CLOCKIN DATAIN PRPC1 PRPC3 PRPC2 PRPC4 PRPC5 PRU_TIMING_03 Figure 7-92. PRU_ICSSG PRU Parallel Capture Timing Requirements – Rising Edge Mode CLOCKIN DATAIN PRPC1 PRPC2 PRPC3 PRPC5 PRU_TIMING_04 PRPC4 Figure 7-93. PRU_ICSSG PRU Parallel Capture Timing Requirements – Falling Edge Mode 7.10.5.16.1.3 PRU_ICSSG PRU Shift Mode Timing Table 7-110. PRU_ICSSG PRU Timing Requirements – Shift In Mode see Figure 7-94 NO. PARAMETER DESCRIPTION MIN MAX UNIT PRSI1 tw(DATAINH) Pulse duration, DATAIN high 2P(1) + 2 ns PRSI2 tw(DATAINL) Pulse duration, DATAIN low 2P(1) + 2 ns (1) P = Internal shift in clock period, defined by PRUn_GPI_DIV0 and PRUn_GPI_DIV1 bit fields in the ICSSG_GPCFGn_REG register. PRUn represents the respective PRU0 or PRU1 instance. DATAIN PRSI1 PRSI2 PRU_TIMING_05 Figure 7-94. PRU_ICSSG PRU Shift In Timing Table 7-111. PRU_ICSSG PRU Switching Characteristics – Shift Out Mode see Figure 7-95 NO. PARAMETER DESCRIPTION MIN MAX UNIT PRSO1 tc(CLOCKOUT) Cycle time, CLOCKOUT 10 ns PRSO2L tw(CLOCKOUTL) Pulse duration, CLOCKOUT low 0.475P(1)Z(2) - 0.3 ns PRSO2H tw(CLOCKOUTH) Pulse duration, CLOCKOUT high 0.475P(1)Y(3) - 0.3 ns AM6442, AM6441, AM6421, AM6412, AM6411 SPRSP56D – JANUARY 2021 – REVISED JULY 2022 www.ti.com 196 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated Product Folder Links: AM6442 AM6441 AM6421 AM6412 AM6411 |
|
