ADL5306ACP-R2 datasheet(8/16 Pages) AD

8 / 16 page

ADL5306

FREQUENCY (Hz)

–40

–35

–30

–25

–20

–15

–10

–5

100k

10k

100

10M

100M

03727-0-015

100nA

µA

100

µA

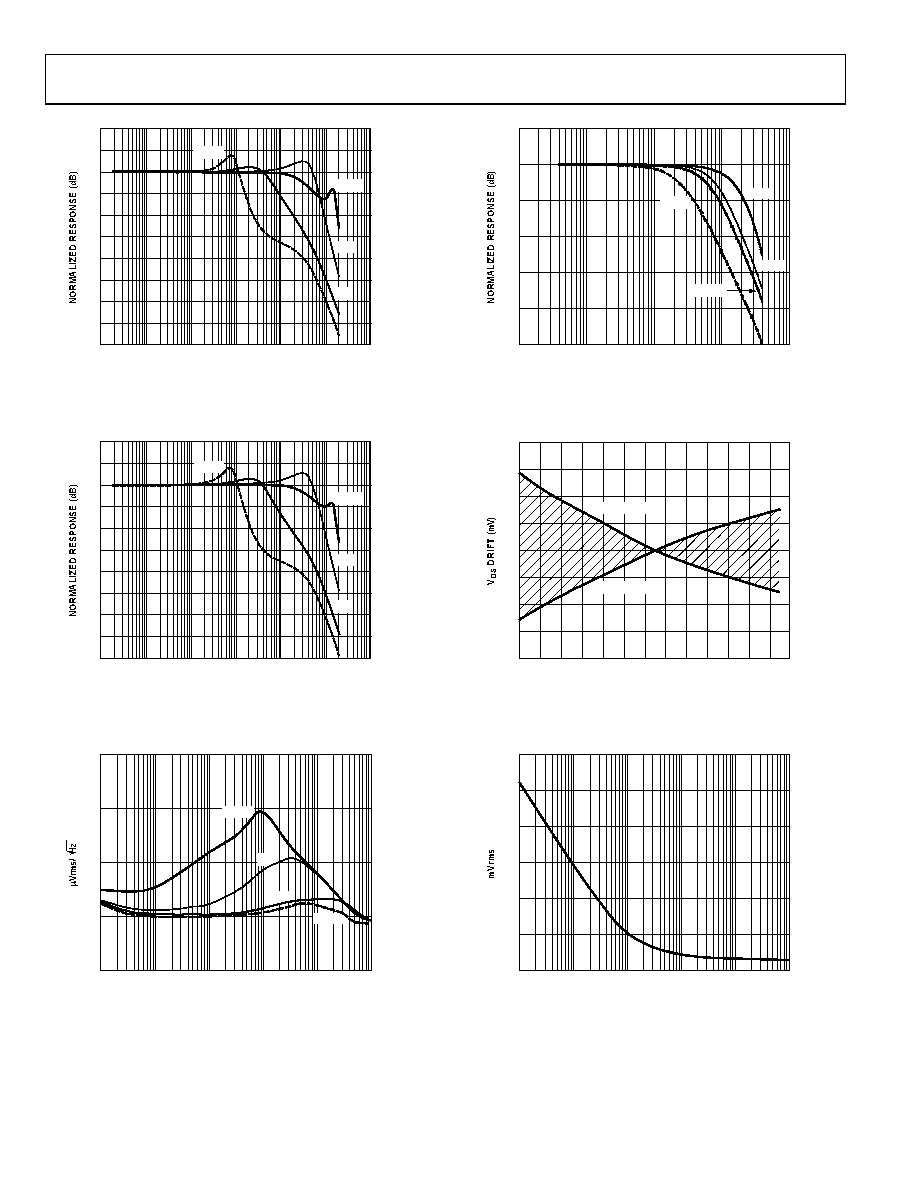

Figure 15. Small-Signal AC Response (5% Sine Modulation), from IPD to VOUT

(G = 1) for IPD in Decade Steps from 10 nA to 1 mA

FREQUENCY (Hz)

–40

–35

–30

–25

–20

–15

–10

–5

100k

10k

100

10M

100M

03727-0-016

100nA

µA

100

µA

Figure 16. Small-Signal AC Response (5% Sine Modulation), from IREF to VOUT

(G = 1) for IREF in Decade Steps from 10 nA to 1 mA

0.01

0.1

100

10k

100k

10M

FREQUENCY (Hz)

03727-0-017

100nA

µA

100

µA

Figure 17. Spot Noise Spectral Density at VOUT (G = 1) vs. Frequency

for IPD in Decade Steps from 10 nA to 1 mA

FREQUENCY (Hz)

–25

–20

–15

–10

–5

100k

10k

10M

100M

03727-0-018

Av = 5

Av = 2.5

Av = 2

Av = 1

Figure 18. Small-Signal AC Response of the Buffer for Various

Closed-Loop Gains (RL = 1 kΩ, CL < 2 pF)

–40 –30 –20 –10

80 90

–2.0

–1.0

1.0

1.5

2.0

–1.5

–0.5

0.5

TEMPERATURE (°C)

03727-0-019

MEAN + 3

MEAN – 3

Figure 19. Buffer Input Offset Drift vs. Temperature

σ to Either Side of Mean)

10n

100n

100

IPD (A)

03727-0-020

Figure 20. Total Wideband Noise Voltage at VOUT vs. IPD (G = 1)

Rev. 0 | Page 8 of 16
