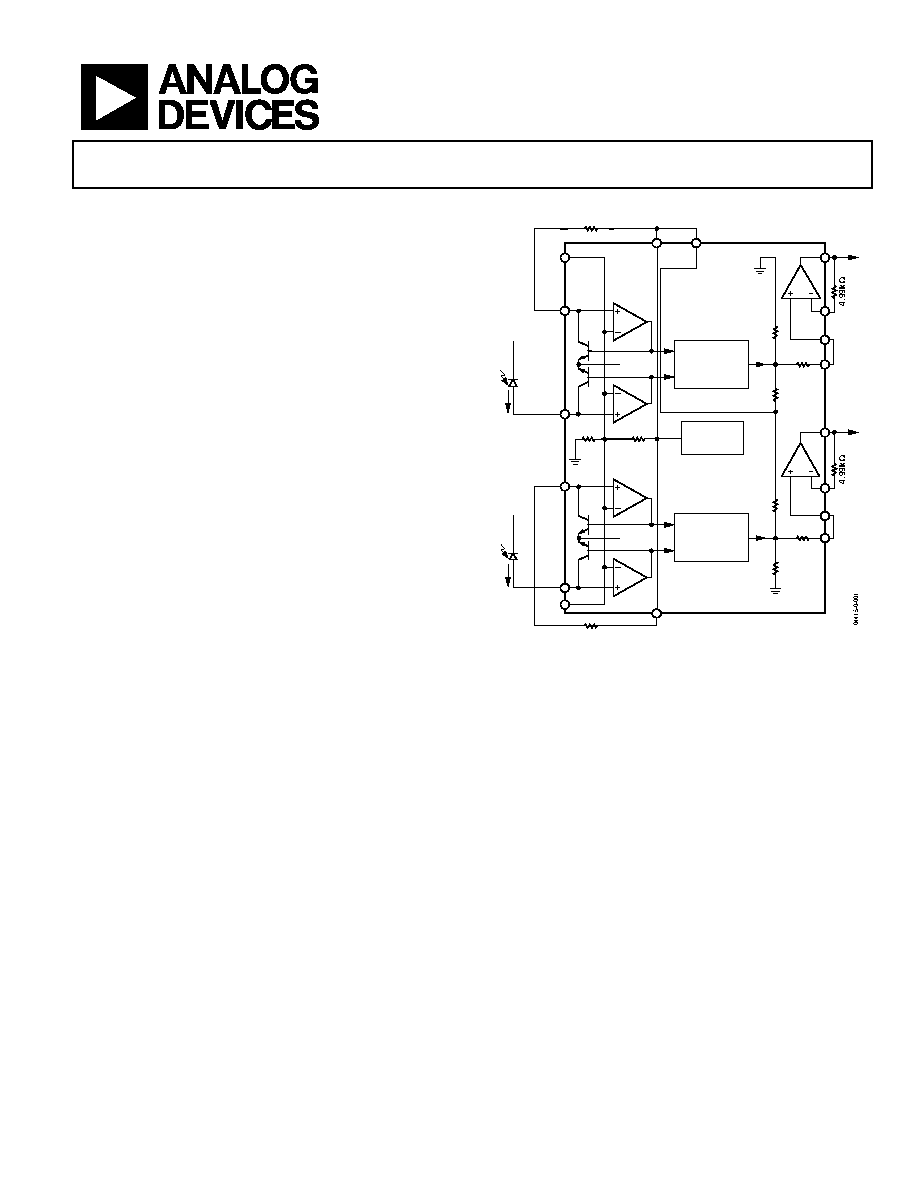

1 / 20 page ![]() 120 dB Range (3 nA to 3 mA) Dual Logarithmic Converter ADL5310 Rev. A Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 www.analog.com Fax: 781.326.8703 © 2004 Analog Devices, Inc. All rights reserved. FEATURES 2 independent channels optimized for photodiode interfacing 6-decade input dynamic range Law conformance 0.3 dB from 3 nA to 3 mA Temperature-stable logarithmic outputs Nominal slope 10 mV/dB (200 mV/dec), externally scalable Intercepts may be independently set by external resistors User-configurable output buffer amplifiers Single- or dual-supply operation Space-efficient, 24-lead 4 mm × 4 mm LFCSP Low power: < 10 mA quiescent current APPLICATIONS Gain and absorbance measurements Multichannel power monitoring General-purpose baseband log compression PRODUCT DESCRIPTION The ADL53101 low cost, dual logarithmic amplifier converts input current over a wide dynamic range to a linear-in-dB output voltage. It is optimized to determine the optical power in wide-ranging optical communication system applications, including control circuitry for lasers, optical switches, atten- uators, and amplifiers, as well as system monitoring. The device is equivalent to a dual AD8305 with enhanced dynamic range (120 dB). While the ADL5310 contains two independent signal channels with individually configurable transfer function constants (slope and intercept), internal bias circuitry is shared between channels for improved power consumption and channel matching. Dual converters in a single, compact LFCSP package yield space-efficient solutions for measuring gain or attenuation across optical elements. Only a single supply is required; optional dual-supply operation offers added flexibility. The ADL5310 employs an optimized translinear structure that use the accurate logarithmic relationship between a bipolar transistor’s base emitter voltage and collector current, with appropriate scaling by precision currents to compensate for the inherent temperature dependence. Input and reference current pins sink current ranging from 3 nA to 3 mA (limited to ±60 dB between input and reference) into a fixed voltage defined by the VSUM potential. The VSUM potential is internally set to 500 mV but may be externally grounded for dual-supply opera- tion, and for additional applications requiring voltage inputs. FUNCTIONAL BLOCK DIAGRAM TEMPERATURE COMPENSATION REFERENCE GENERATOR 451 Ω 14.2k Ω 80k Ω 20k Ω 6.69k Ω COMM COMM VREF VREF VRDZ VNEG VSUM INP2 IRF2 2.5V 0.5V ILOG OUT2 SCL2 BIN2 LOG2 VBIAS TEMPERATURE COMPENSATION 451 Ω 14.2k Ω 6.69k Ω COMM VNEG VSUM INP1 IRF1 ILOG OUT1 VOUT1 VOUT2 SCL1 BIN1 LOG1 VBIAS IPD1 IPD2 665k Ω 665k Ω Figure 1. The logarithmic slope is set to 10 mV/dB (200 mV/decade) nominal and can be modified using external resistors and the independent buffer amplifiers. The logarithmic intercepts for each channel are defined by the individual reference currents, which are set to 3 μA nominal for maximum input range by connecting 665 kΩ resistors between the 2.5 V VREF pins and the IRF1 and IRF2 inputs. Tying VRDZ to VREF effectively sets the x-intercept four decades below the reference current— typically 300 pA for a 3 µA reference. The use of individually optimized reference currents may be valuable when using the ADL5310 for gain or absorbance measurements where each channel input has a different current- range requirement. The reference current inputs are also fully functional dynamic inputs, allowing log ratio operation with the reference input current as the denominator. The ADL5310 is specified for operation from –40°C to +85°C. 1 US Patents: 4,604,532, 5,519,308. Other patents pending. |
