ADL5904ACPZN-R7 datasheet(15/27 Pages) AD

15 / 27 page

Data Sheet

ADL5904

Rev. B | Page 15 of 27

CH2 1.0V

M10ns 20GS/s

A CH2

1.52V

Ω

CH3 500mV

Ω

T 20ps/pt

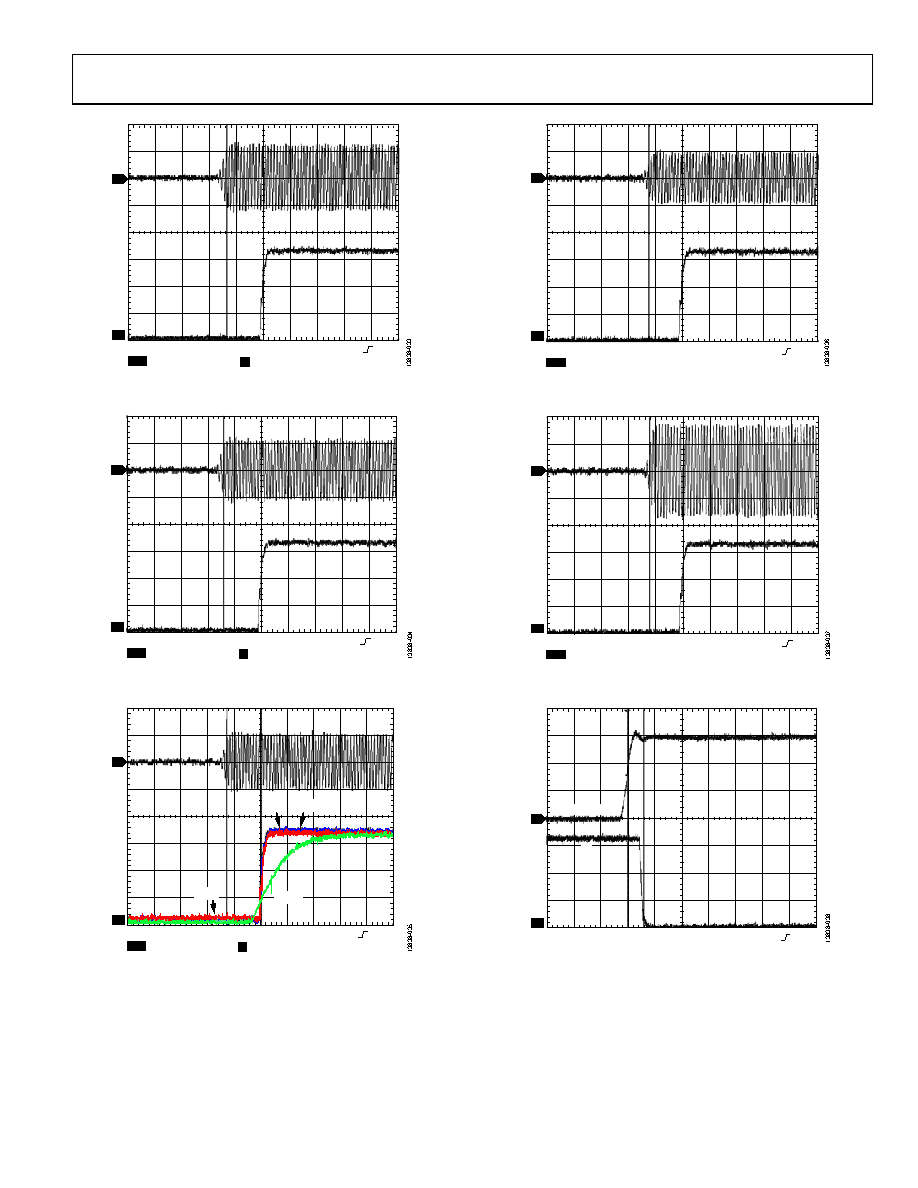

Figure 33. Q Output Response, PIN = Off to 6 dBm, VIN− (400 mV) Set to

Trigger at 5 dBm (Overdrive Level = 1 dB)

CH2 1.0V

M10ns 20GS/s

A CH2

1.52V

Ω

CH3 100mV

Ω

T 20ps/pt

Figure 34. Q Output Response, PIN = Off to −9 dBm, Overdrive Threshold

Voltage Set to Trigger at −10 dBm (Overdrive Level = 1 dB, VIN− = 75 mV)

CH2 1.0V

M10ns 20GS/s

A CH2

400mV

Ω

CH3 100mV

Ω

T 50ps/pt

2pF

100pF

10pF

0pF

Figure 35. Q Output Response vs. Load Capacitance, PIN = Off to −10 dBm;

Overdrive Threshold Voltage Set to Trigger at −11 dBm (Overdrive Level =

1 dB, VIN− = 65 mV)

CH2 1.0V

M10ns 20GS/s

A CH2

1.52V

Ω

CH3 1.0V

Ω

Figure 36. Q Output Response, PIN = Off to 10 dBm, VIN− (400 mV) Set to

Trigger at 5 dBm (Overdrive Level = 5 dB)

CH2 1.0V

M10ns 20GS/s

A CH2

1.52V

Ω

CH3 100mV

Ω

Figure 37. Q Output Response, PIN = Off to −5 dBm, Overdrive Threshold

Voltage Set to Trigger at −10 dBm (Overdrive Level = 5 dB, VIN− = 75 mV)

CH2 1.0V

M20ns 10GS/s

A CH1

1.36V

Ω

CH1 1.0V

Ω

RST PULSE

Figure 38. Response of Q Output to RST
