ADP1612/ADP1613
Rev. A | Page 7 of 28
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.8
2.3
2.8
3.3
3.8
4.3
4.8
INPUT VOLTAGE (V)
ADP1612
TA = +25°C
TA = +85°C
TA = –40°C

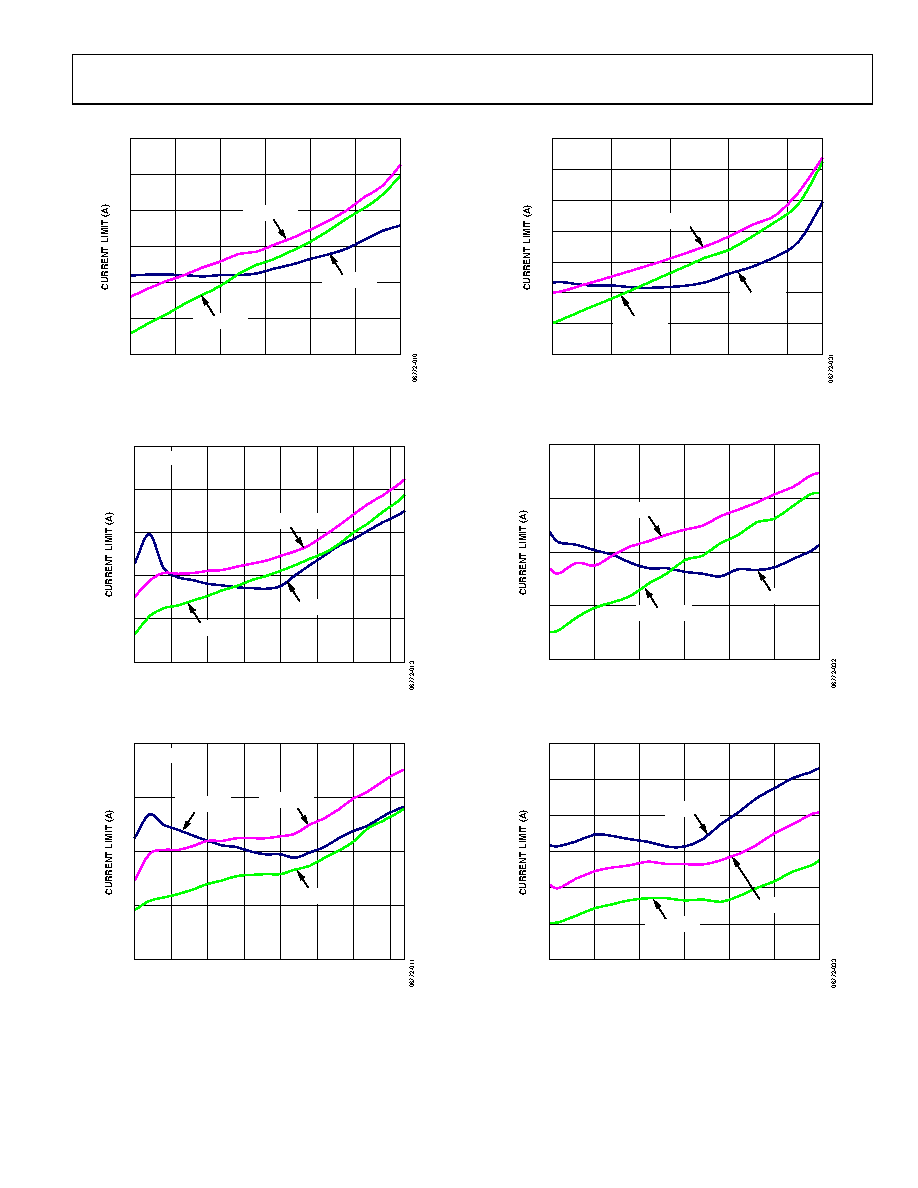

Figure 10. ADP1612 Switch Current Limit vs. Input Voltage, VOUT = 5 V
2.0
1.8
1.6
1.4
1.2
1.0
1.8
2.3
2.8
3.3
3.8
4.3
4.8
5.3
INPUT VOLTAGE (V)
ADP1612
TA = +25°C
TA = +85°C
TA = –40°C
Figure 11. ADP1612 Switch Current Limit vs. Input Voltage, VOUT = 8 V
1.6
1.4
1.2
1.0
0.8
1.8
2.3
2.8
3.3
3.8
4.3
4.8
5.3
INPUT VOLTAGE (V)
ADP1612
TA = +25°C
TA = –40°C
TA = +85°C
Figure 12. ADP1612 Switch Current Limit vs. Input Voltage, VOUT = 15 V
3.4
3.2
3.0
2.8
2.6
2.4
2.2
2.0
2.5
3.0
3.5
4.0
4.5
INPUT VOLTAGE (V)
ADP1613
TA = +25°C
TA = +85°C
TA = –40°C
Figure 13. ADP1613 Switch Current Limit vs. Input Voltage, VOUT = 5 V
2.6
2.4
2.2
2.0
1.8
2.5
3.0
3.5
4.0
INPUT VOLTAGE (V)
4.5
5.0
5.5
ADP1613
TA = +25°C
TA = +85°C
TA = –40°C
Figure 14. ADP1613 Switch Current Limit vs. Input Voltage, VOUT = 8 V
2.6
2.4
2.2
2.0
1.8
1.6
1.4
2.5
3.0
3.5
4.0
INPUT VOLTAGE (V)
4.5
5.0
5.5
ADP1613
TA = +85°C
TA = +25°C
TA = –40°C
Figure 15. ADP1613 Switch Current Limit vs. Input Voltage, VOUT = 15 V
