POWER MANAGEMENT

1

SC1302A/B/C/D/E/F

Dual High Speed Low-Side

MOSFET Driver

Features

Operating Voltage — +4.5V to +16.5V

Fast rise and fall times (20ns typical with 1000pf load)

Dual MOSFET driver

Peak drive current — 2A

propagation delay — 40ns

8-pin SOIC / MSOP lead free packages. This product is

fully WEEE and RoHS compliant

Enable/disable control

TTL-compatible input

Under voltage lockout with hysteresis

Low shutdown supply current

Over temperature protection

ESD protection

Dual inverting/non-inverting and inverting/non-in-

verting configurations

Applications

Switch-mode power supplies

Battery powered applications

Solenoid and motor drives

Description

The SC1302A/B/C/D/E/F family are low cost dual low-side

MOSFET drivers. These drivers accept TTL-compatible

inputs and are capable of supplying high current outputs

(> 2A peak) to external MOSFETs. Fast switching allows

operation up to 1 MHz. The SC1302A/B/C is available in six

configurations: SC1302A is a dual non-inverting, SC1302B

is a dual inverting and SC1302C alone has an inverting

plus one non-inverting output.

The SC1302D/E/F is the derivative part from SC1302A/B/C

with pin 1 (EN) and pin 8 (SHDN) internally tied to VCC.

An under-voltage lockout circuit guarantees that the

driver outputs are low when Vcc is less than 4.5V (typical).

An internal temperature sensor shuts down the driver in

the event of over temperature.

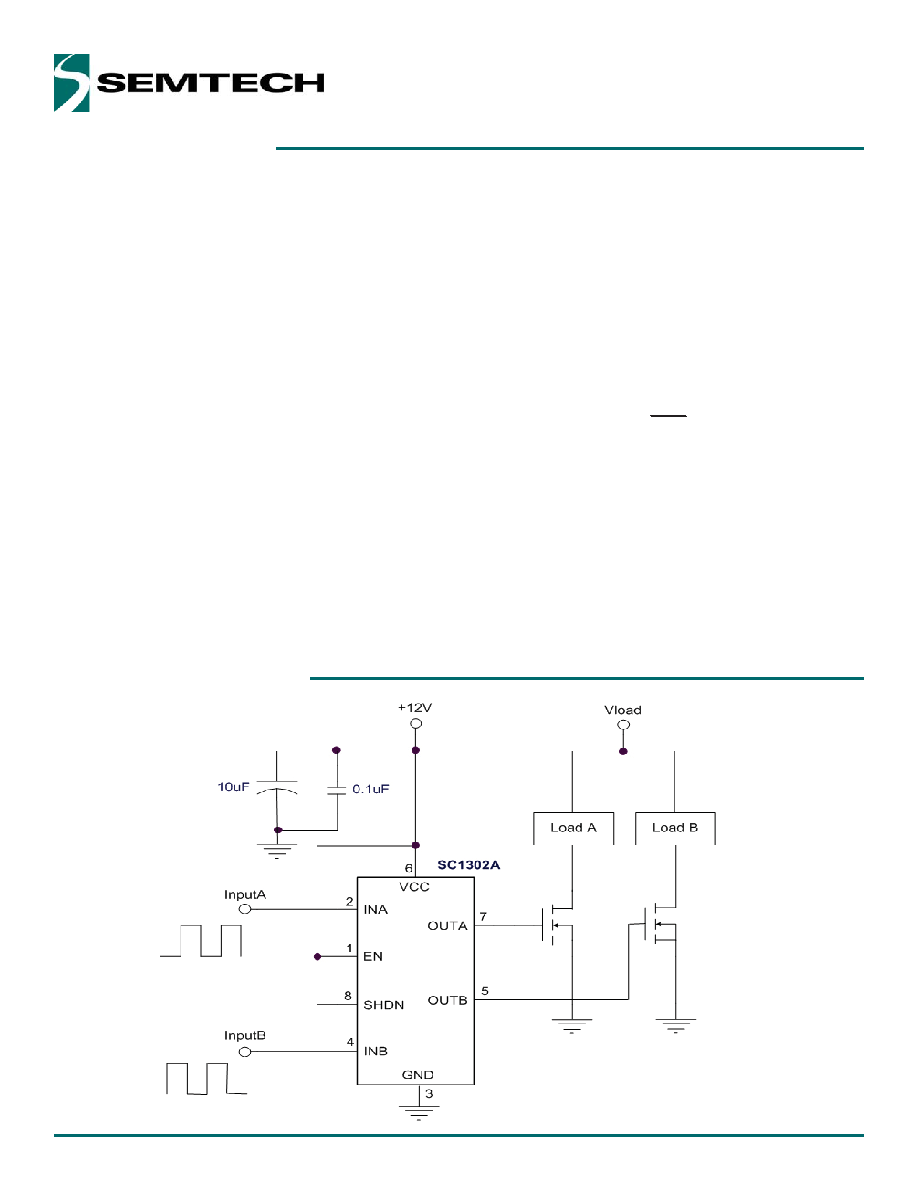

Typical Application Circuit

July 13, 2009
