AD8141/AD8142

Rev. 0 | Page 8 of 24

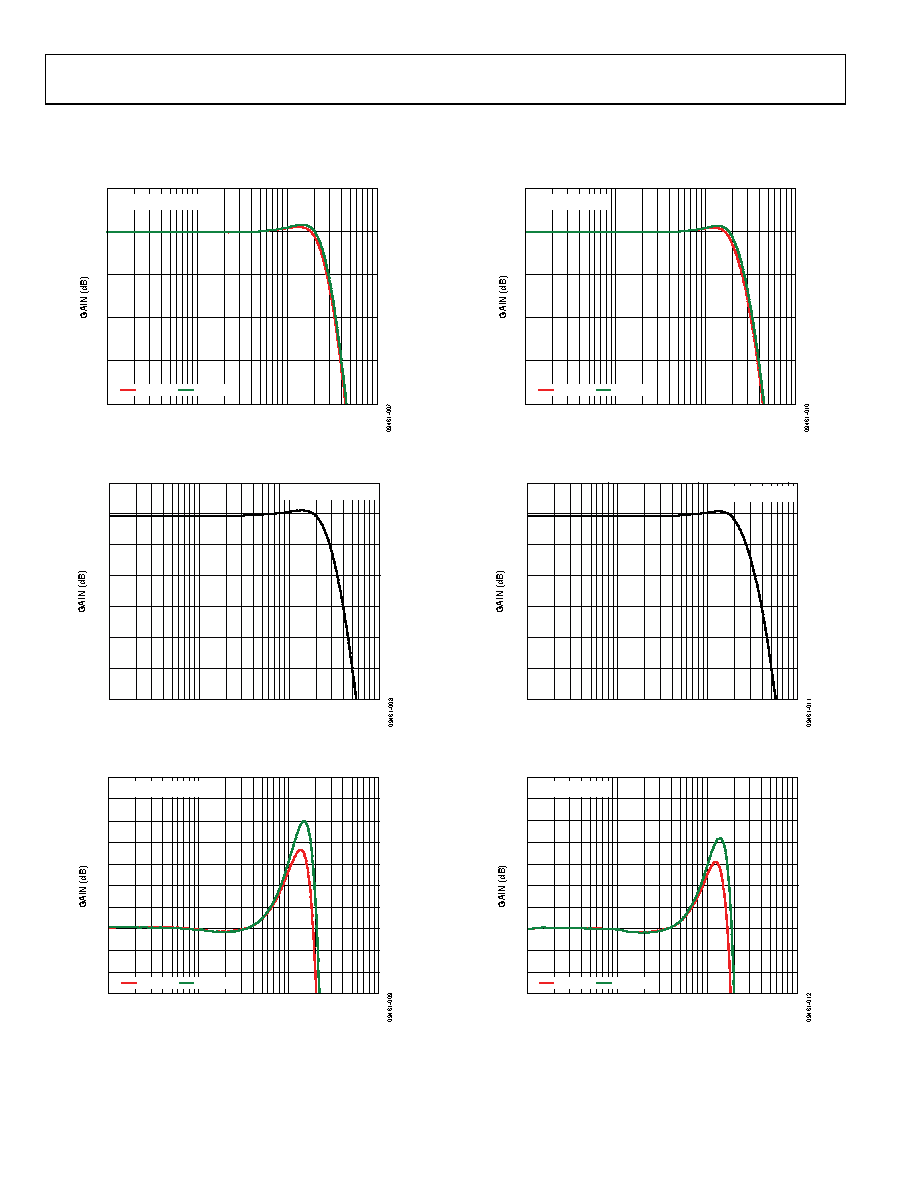

TYPICAL PERFORMANCE CHARACTERISTICS

VS+ = 5 V, VS− = 0 V, RL,dm = 200 Ω, TA = 25°C, VOCM = 1.5 V (AD8141), HSYNC, VSYNC, and SYNC LEVEL = 0 V (AD8142), unless otherwise noted.

–3

–6

100

FREQUENCY (MHz)

VOUT, dm = 200mV p-p

AD8141

AD8142

Figure 6. Small Signal Frequency Response

–3

–6

–9

–12

100

FREQUENCY (MHz)

VOUT, dm = 200mV p-p

Figure 7. Small Signal Frequency Response at VOCM = 2.5 V (AD8141)

6.7

6.6

6.5

6.4

6.3

6.2

6.1

6.0

5.9

5.8

5.7

100

FREQUENCY (MHz)

VOUT, dm = 200mV p-p

AD8141

AD8142

Figure 8. Small Signal 0.1 dB Flatness

–3

–6

100

FREQUENCY (MHz)

VOUT, dm = 2V p-p

AD8141

AD8142

Figure 9. Large Signal Frequency Response

–3

–6

–9

–12

100

FREQUENCY (MHz)

VOUT, dm = 2V p-p

Figure 10. Large Signal Frequency Response at VOCM = 2.5 V (AD8141)

6.7

6.6

6.5

6.4

6.3

6.2

6.1

6.0

5.9

5.8

5.7

100

FREQUENCY (MHz)

VOUT, dm = 2V p-p

AD8141

AD8142

Figure 11. Large Signal 0.1 dB Flatness
