CM-SCE - 2.5K -

1/4 - 4H-9

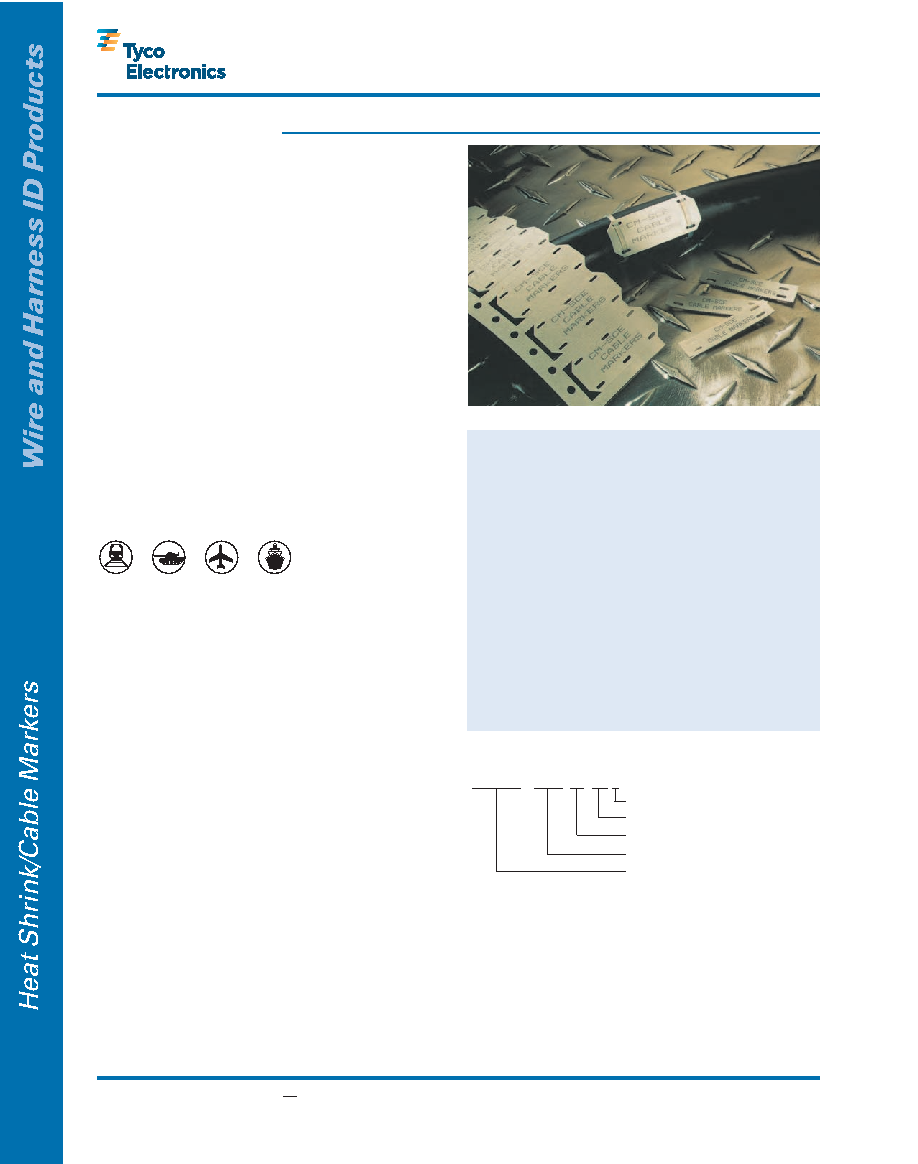

CM-SCE Military grade tie-on cable marker tags

Catalog 1654227

Dimensions not italicized are

Dimensions are shown for

USA: 1-800-522-6752

South America: 55-11-3611-1514

Revised 04-07

in millimeters while dimensions

reference purposes only.

Canada: 1-905-470-4425

Hong Kong: 852-2735-1628

in inches are italicized.

Specifications subject

Mexico: 01-800-733-8926

Japan: 81-44-844-8013

www.tycoelectronics.com

to change.

C. America: 52-55-5-729-0425

UK: 44-141-810-8967

Heat-Shrink/Cable Markers

Part numbering system

Color

Tie-wrap holes

Markable height of marker (inches)

Pack size

Product family

CM-SCE markers are flat, rigid, non-adhesive labels that can be

used to identify large cables and wire bundles in environments

such as military and aerospace. Marker tags are applied to cables

or wire bundles with cable ties.

Print performance meets or exceeds the requirements of

SAE AS81531 4.6.2 and MIL-STD-202.

Features and benefits

I Side entry provides access to big size and wire bundles

as well as retrofit and repair capability

I Highly flame-retardant

I Highly resistant to abrasion, mechanical abuses, fluids,

lubricants and solvents

I Ease of use: markers can be easily removed from the carrier

I Easy installation: only standard cable tie-wraps

are needed to install markers. No extra steps required

I Excellent print permanence when printing on the rough

side of the marker

Temperature rating

Operating temperature range

–55°C to +135°C

–67°F to +275°F

Specifications/approvals

Tyco Electronics

RW 2513

TTDS-021

Military

Mark permanence: SAE AS81531 4.6.2

Solvent resistance: MIL-STD-202

Method 215J

Industry

UL MH26328 Group PG1S2

Printer information

Tyco Electronics printer

AM6310 (dot matrix)

T312M (thermal transfer)

Tyco Electronics ribbon

1892BK04-RIBBON (dot matrix) (dot matrix)

1966-RIBBON (thermal transfer)
