F–15

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

www.ck-components.com

F

7000 Series

Miniature Toggle Switches

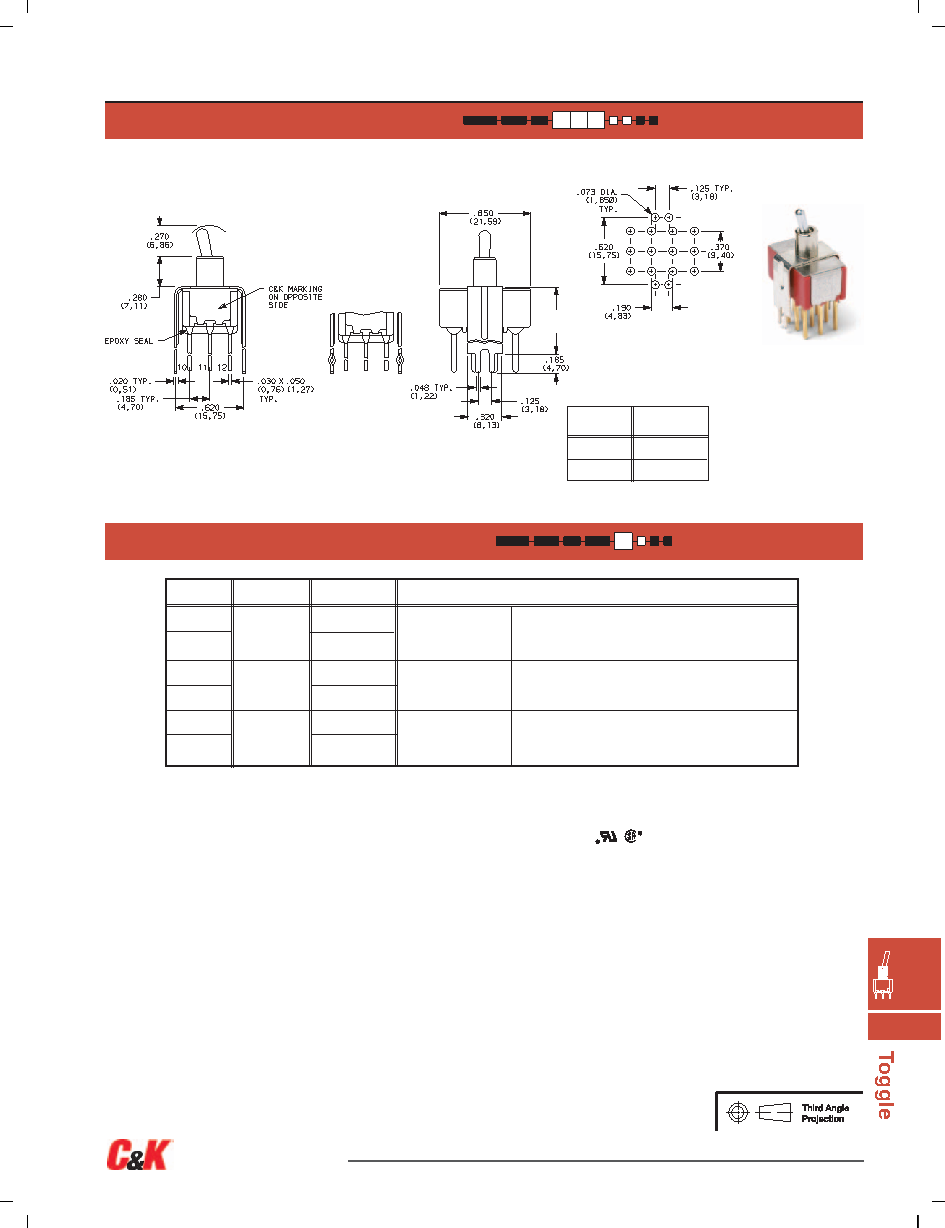

TERMINATIONS

Dim 'A'

Actuator Shown In Pos. 1

Snap-In

PC MOUNTING

V4, V9

VERTICAL MOUNT, V-BRACKET

V41

VERTICAL MOUNT, V-BRACKET, SNAP-IN

7401MD9__BE

4PDT

Not available with I seal option.

V4, V41

.630 (16,00)

V9

1.150 (29,21)

DIM ‘A’

OPTION

CODE

CONTACT MATERIAL

* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.

over nickel plate.

NOTE: Any models supplied with P, S, R, Q, B or G contact material are RoHS compliant.

U11-U415 model numbers

with all options when ordered with G,

S, R, or Q contact material.

B contact material standard with all terminations except C, Z & Z3.

Q contact material standard with C, Z & Z3 terminations.

P, S & R contact materials not available with Z & Z3 terminations.

OPTION

CODE

CONTACT

MATERIAL

TERMINAL

PLATING

RATINGS

GOLD OVER

LOW LEVEL/

DRY CIRCUIT

POWER

LOW LEVEL/DRY

CIRCUIT OR POWER

0.4 VA MAX. @ 20 V AC OR DC MAX.

5 AMPS @ 120 V AC OR 28 V DC; 2 AMPS @ 250 V AC.

0.4 VA MAX @ 20 V AC OR DC MAX. OR 5 AMPS @ 120 V AC

OR 28 V DC; 2 AMPS @ 250 V AC.

B

P

Q

S

G

R
