F–9

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

www.ck-components.com

F

7000 Series

Miniature Toggle Switches

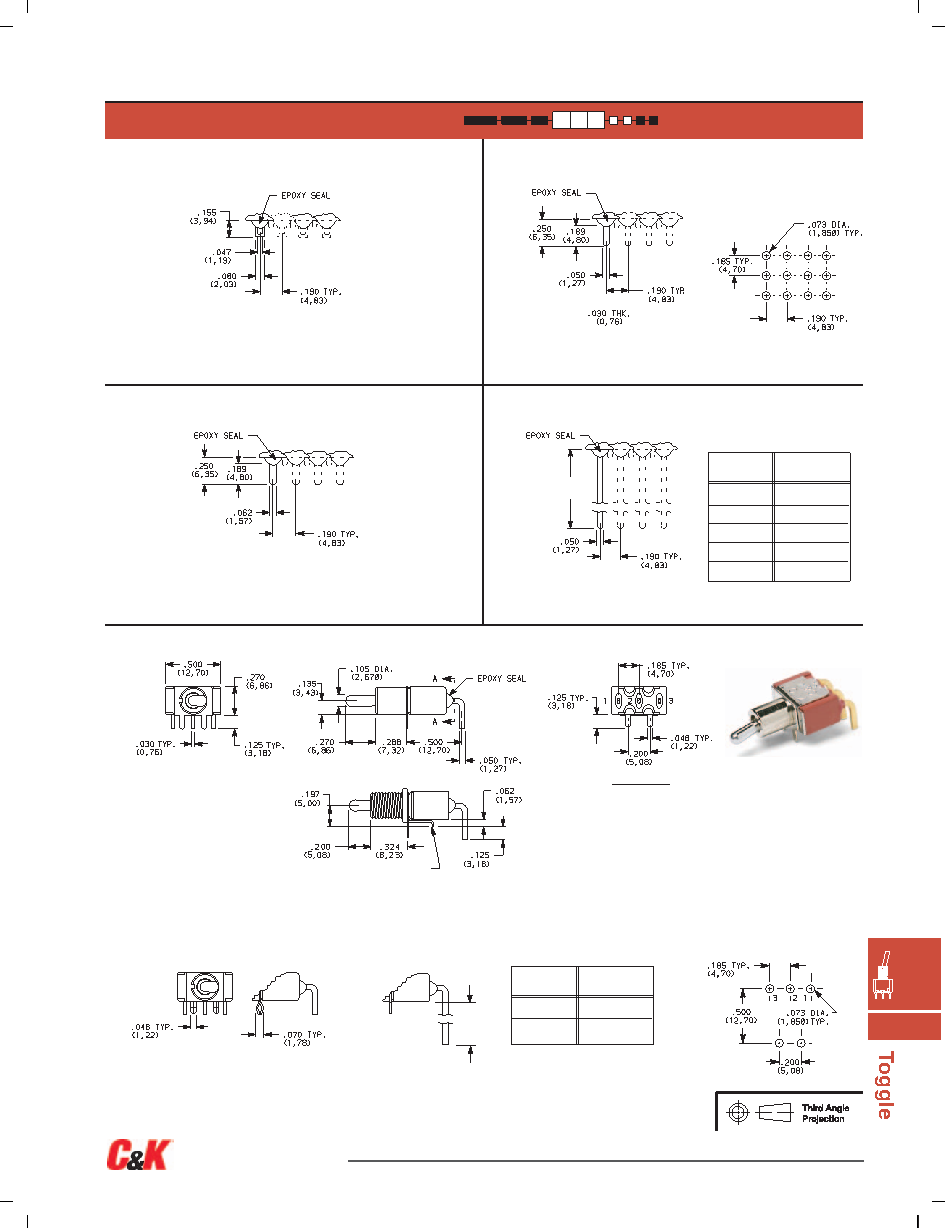

TERMINATIONS

Switch support with CW, H, H3, H4, Y1, Y4

bushings and KXX actuators.

Terminal Nos.

For Reference Only

Actuator Shown

In Pos. 1

SECTION A-A

Dim 'A'

PC MOUNTING

PC MOUNTING

Dim 'A'

.030 (0,76) Thk.

.030 (0,76) Thk.

.030 (0,76) Thk.

Z

SOLDER LUG

C

PC THRU-HOLE

Z3

QUICK CONNECT

A3

RIGHT ANGLE, SNAP-IN, PC THRU-HOLE

AW1, AW4

RIGHT ANGLE, EXTENDED,

PC THRU-HOLE

W, W1, W3, W4, W5

WIRE WRAP

SPDT thru 4PDT

SPDT thru 4PDT

SPDT thru 4PDT

Not available with P, R or S contact materials.

Not available with P, R or S contact materials.

Mating quick connector available, order part

number 530100000, page F-16.

Not available with I seal option.

Terminal bend radii and lead-in manufacturing option.

SPDT thru 4PDT

W

.750 (19,05)

W1

.964 (24,48)

W3

.425 (10,80)

W4

1.062 (26,97)

W5

1.305 (33,15)

DIM ‘A’

OPTION

CODE

AW1

.72 (18,3)

AW4

.83 (21,1)

DIM ‘A’

OPTION

CODE

Part No. Shown: 7101MHABE

7101MD9ABE

Horizontal Actuation

SPDT

A

RIGHT ANGLE, PC THRU-HOLE
