FX-100

Fiber sensor

Ampiliﬁers

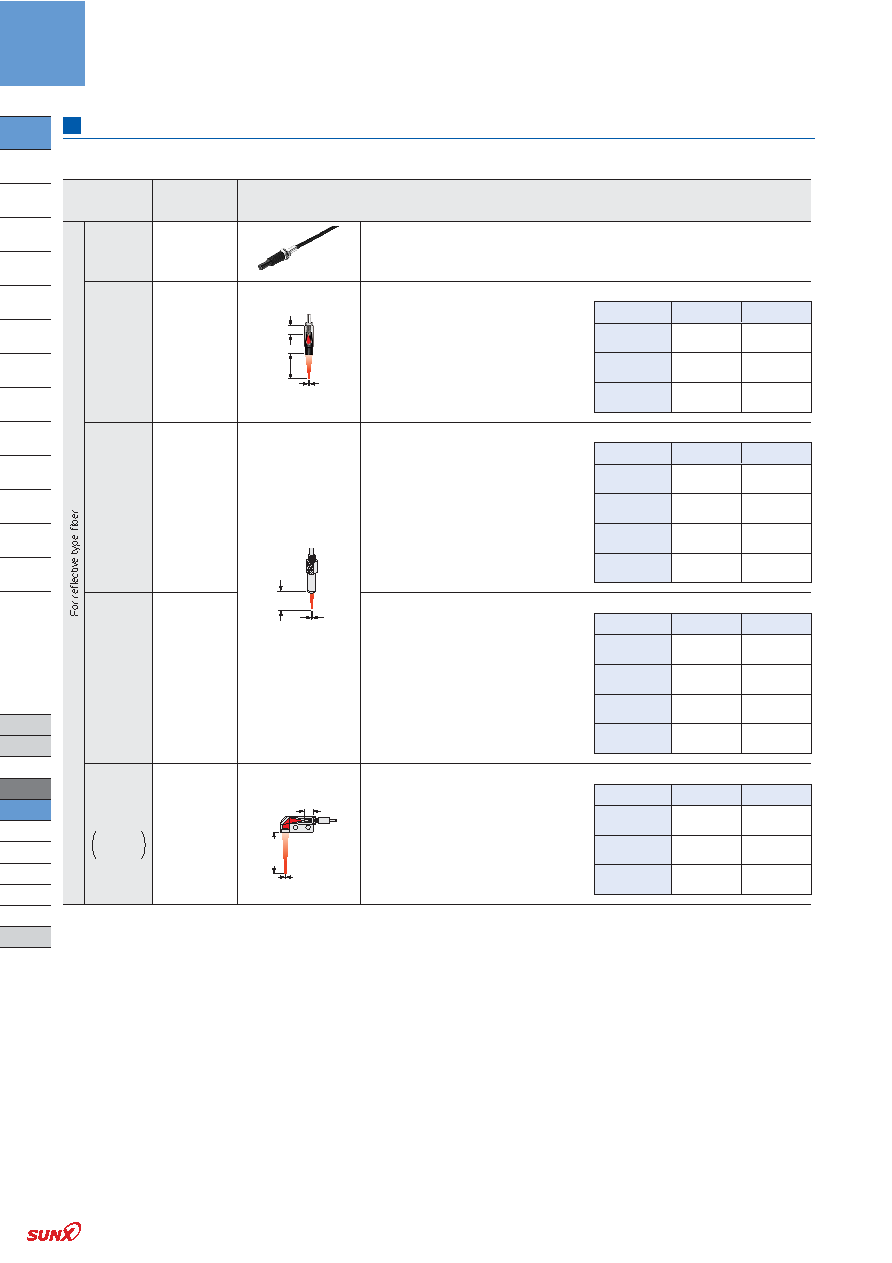

Lens (For reﬂective type ﬁber)

Designation

Model No.

Description

Pinpoint spot

lens

FX-MR1

Pinpoint spot of ø0.5 mm ø0.020 in. Enables detection of minute objects or small marks.

• Distance to focal point: 6 ± 1 mm 0.236 ± 0.039 in • Applicable ﬁbers: FD-WG4, FD-G4

• Ambient temperature: –40 to +70 °C –40 to +158 °F (Note 2)

Zoom lens

FX-MR2

Screw-in

depth

Distance to

focal point

Spot

diameter

The spot diameter is adjustable from ø0.7 to

ø2 mm ø0.028 to ø0.079 in according to how

much the ﬁber is screwed in.

• Applicable ﬁbers: FD-WG4, FD-G4

• Ambient temperature: –40 to +70 °C

–40 to +158 °F (Note 2)

• Accessory: MS-EX-3 (mounting bracket)

Sensing range for FX-101□ (mm in) (Note 1)

Screw-in depth Distance to focal point Spot diameter

7 mm 0.276 in

18.5 0.728

approx.

ø0.7 ø0.028

12 mm 0.472 in

27 1.063

approx.

ø1.2 ø0.047

14 mm 0.551 in

43 1.693

approx.

ø2.0 ø0.079

Finest spot

lens

FX-MR3

Distance to

focal point

Spot diameter

Extremely ﬁne spot of ø0.3 mm ø0.012 in

approx. achieved.

• Applicable ﬁbers: FD-WG4, FD-G4, FD-EG1,

FD-EG2, FD-EG3, FD-G6X, FD-G6

• Ambient temperature: –40 to +70 °C

–40 to +158 °F (Note 2)

Sensing range for FX-101□ (mm in) (Note 1)

Fiber model No. Distance to focal point Spot diameter

FD-EG3

7.5 ± 0.5

0.295 ± 0.020

ø0.15 ø0.006

approx.

FD-EG2

7.5 ± 0.5

0.295 ± 0.020

ø0.2 ø0.008

approx.

FD-EG1

7.5 ± 0.5

0.295 ± 0.020

ø0.3 ø0.012

approx.

FD-WG4/G4,

FD-G6X/G6

7.5 ± 0.5

0.295 ± 0.020

ø0.5 ø0.020

approx.

Finest spot

lens

FX-MR6

Extremely ﬁne spot of ø0.1 mm ø0.004 in

approx. achieved.

• Applicable ﬁbers: FD-WG4, FD-G4, FD-EG1,

FD-EG2, FD-EG3, FD-G6X, FD-G6

• Ambient temperature: –20 to +60 °C

–4 to +140 °F (Note 2)

Sensing range for FX-101□ (mm in) (Note 1)

Fiber model No. Distance to focal point Spot diameter

FD-EG3

7 ± 0.5

0.276 ± 0.020

ø0.1 ø0.004

approx.

FD-EG2

7 ± 0.5

0.276 ± 0.020

ø0.15 ø0.006

approx.

FD-EG1

7 ± 0.5

0.276 ± 0.020

ø0.2 ø0.008

approx.

FD-WG4/G4,

FD-G6X/G6

7 ± 0.5

0.276 ± 0.020

ø0.4 ø0.016

approx.

Zoom lens

Side-view

type

FX-MR5

FX-MR2 is converted into a side-view type

and can be mounted in a very small space.

• Applicable ﬁbers: FD-WG4, FD-G4

• Ambient temperature: –40 to +70 °C

–40 to +158 °F (Note 2)

Sensing range for FX-101□ (mm in) (Note 1)

Screw-in depth Distance to focal point Spot diameter

8 mm 0.315 in

13 0.512

approx.

ø0.5 ø0.020

10 mm 0.394 in

15 0.591

approx.

ø0.8 ø0.031

14 mm 0.551 in

30 1.181

approx.

ø3.0 ø0.118

Screw-in

depth

Spot diameter

Distance

to focal

point

Screw-in

depth

Spot diameter

Distance

to focal

point

Notes: 1) The sensing ranges are the values when used in combination with FX-101□ (standard type). Please contact our ofﬁce for details on sensing ranges for

other types of ampliﬁer.

2) For details on the ambient temperatures for the ﬁbers which being combined, refer to p.101~.

FIBER OPTIONS

The dimensions are on p.121~.
