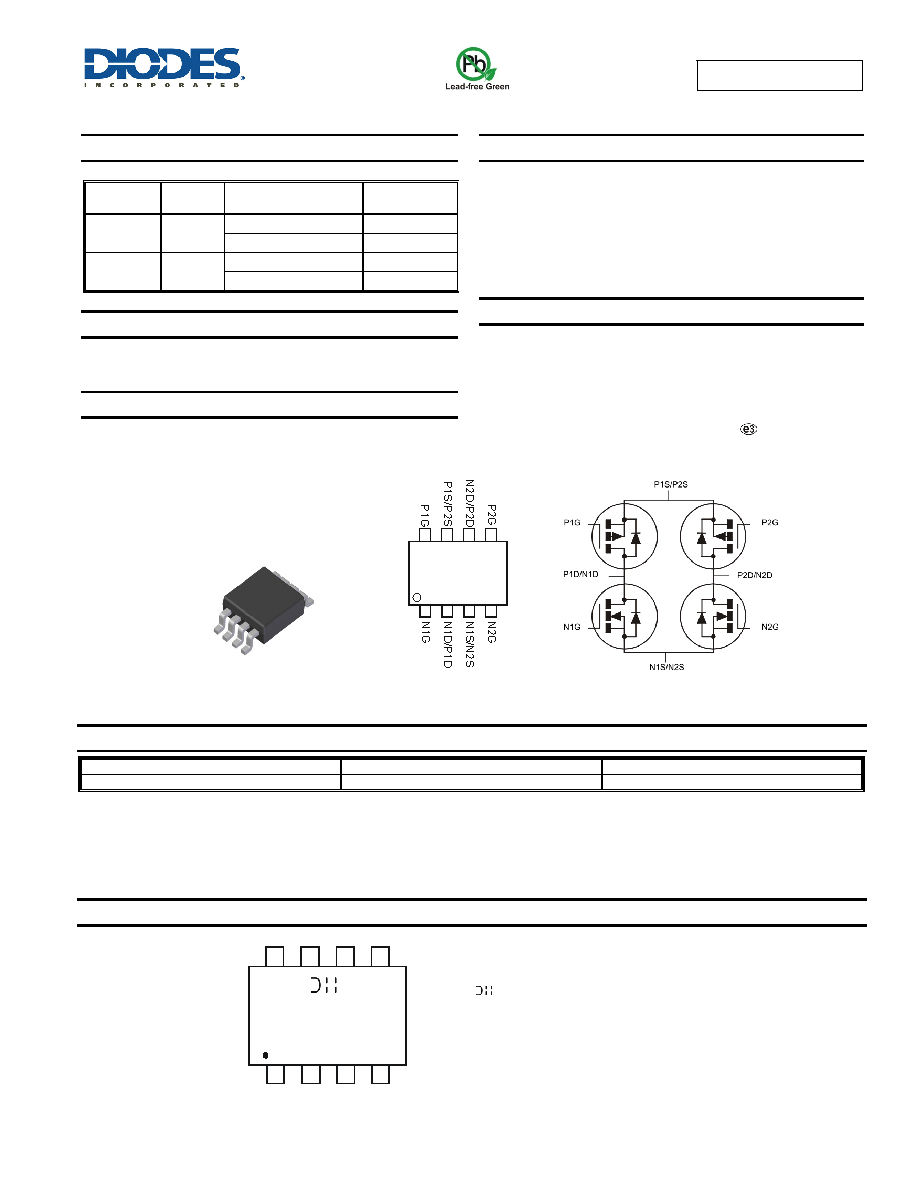

DMHC3025LSD

Document number: DS35821 Rev. 4 - 2

1 of 9

www.diodes.com

November 2013

© Diodes Incorporated

DMHC3025LSD

30V COMPLEMENTARY ENHANCEMENT MODE MOSFET H-BRIDGE

Product Summary

Device

N-Channel

30V

6.0

4.6

P-Channel

-30V

-4.2

-3.2

Description

This new generation complementary MOSFET H-Bridge features low

on-resistance achievable with low gate drive.

Applications



DC Motor control



DC-AC Inverters

Features



2 x N + 2 x P channels in a SOIC package



Low On-Resistance



Low Input Capacitance



Fast Switching Speed



Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)



Halogen and Antimony Free. “Green” Device (Note 3)



Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data



Case: SO-8



Case Material: Molded Plastic, "Green" Molding Compound.

UL Flammability Classification Rating 94V-0



Moisture Sensitivity: Level 1 per J-STD-020



Terminal Connections Indicator: See diagram



Terminals: Finish

 Matte Tin annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208



Weight: 0.008 grams (approximate)

Part Number

Case

Packaging

DMHC3025LSD-13

SO-8

2500/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

Top View

Internal Schematic

Top View

Pin Configuration

SO-8

H-Bridge

1

4

8

5

C3025LS

YY WW

= Manufacturer’s Marking

C3025LS = Product Type Marking Code

YYWW = Date Code Marking

YY = Year (ex: 09 = 2009)

WW = Week (01 - 53)
