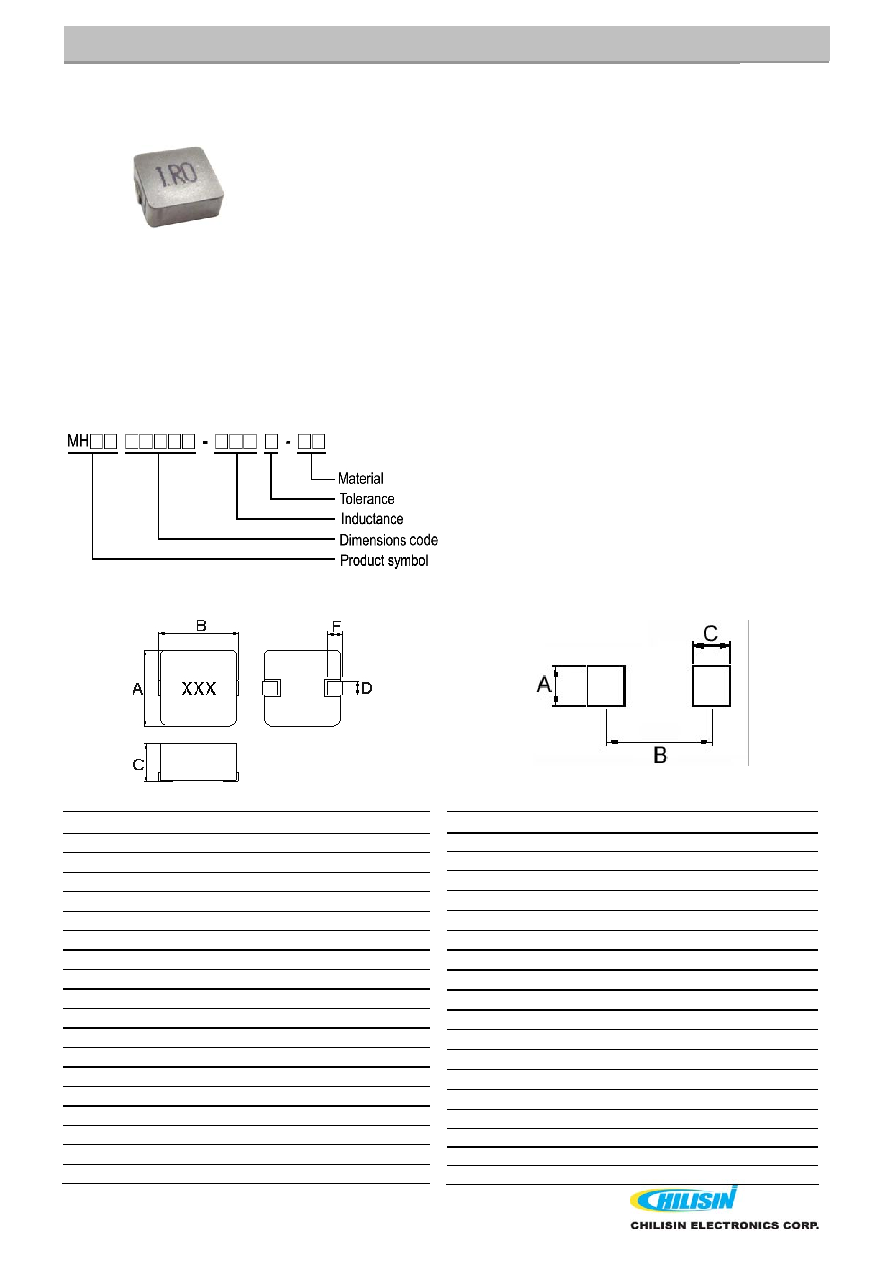

Molding Power Choke – MHCC/MHCI Series

MHCC、MHCI Series

MHCC series is designed for low profile type with low RDC and ultra

large current. Its molded magnetic shielded type is suitable for

high-density mounting and ultra low buzz noise. Soldering conditions

can be easily confirmed when mounting onto the board. This series

also provides customers with embossed carrier type packaging for

automatic mounting machine.

Features

Applications

 RoHS compliant

 Low profile type

 Shielded construction

 Ultra low buzz noise due to molding construction

 High density DC/DC converters

 POL converters

 High current VRM/VRD for notebook / Server / desktop CPUs

 High speed charger

 For thickness less than 1.2mm, suitable for low profile applications

e.g., Ultra thin NB/Monitor/TV/Tablet

Product Identification

Shape and Dimensions

Recommended Pattern

Dimensions in mm

TYPE

A

B Max

C Max

D

F

04012

4.1±0.2

4.6±0.2

1.2

1.5±0.3

1.0±0.5

04015

4.1±0.2

4.6±0.2

1.5

1.5±0.3

1.0±0.5

04020

4.1±0.2

4.6±0.2

2.0

1.5±0.3

1.0±0.5

05012

5.4±0.35 5.7±0.2

1.2

2.0±0.3

1.5±0.3

05015

5.4±0.35 5.7±0.2

1.5

2.0±0.3

1.5±0.3

05018

5.4±0.35 5.7±0.2

1.8

2.0±0.3

1.5±0.3

05020

5.4±0.35 5.7±0.2

1.8±0.2

2.0±0.3

1.5±0.3

05030

5.4±0.35 5.7±0.2

3.0

2.0±0.3

1.5±0.3

06012

6.6±0.2

7.3

1.2

2.9

1.6±0.5

06015

6.6±0.2

7.3

1.3±0.2

2.9

1.6±0.5

06018

6.6±0.2

7.3

1.6±0.2

2.9

1.6±0.5

06024

6.6±0.2

7.3

2.4

2.9

1.6±0.5

06030

6.6±0.2

7.3

3.0

2.9

1.6±0.5

10030

10.1±0.3

11.6

3.0

2.5±0.5

10040

10.1±0.3

11.6

4.0

3.0

2.5±0.5

12035

12.6±0.2

13.8

3.5

3.7

2.7±0.7

12050

12.6±0.2

13.8

5.0

3.7

2.7±0.7

12060

12.6±0.2

13.8

6.0

3.7

2.7±0.7

Dimensions in mm

TYPE

A

B

C

04012

2.5

3.7

1.5

04015

2.5

3.7

1.5

04020

2.5

3.7

1.5

05012

2.5

4.1

1.9

05015

2.5

4.1

1.9

05018

2.5

4.1

1.9

05020

2.5

4.1

1.9

05030

2.5

4.1

1.9

06012

3.5

6.05

2.35

06015

3.5

6.05

2.35

06018

3.5

6.05

2.35

06024

3.5

6.05

2.35

06030

3.5

6.05

2.35

10030

4.0

9.5

3.5

10040

4.0

9.5

3.5

12035

5.0

10.5

4.0

12050

5.0

10.5

4.0

12060

5.0

10.5

4.0
