Molding Power Choke – MHCC/MHCI Series

Electrical Characteristics

Inductance

Tolerance

Test

Frequency

Irms

Isat

RDC

Part Number

(uH)

(±%)

(KHz)

(A)Typ.

(A)Typ.

(mΩ)Max

MHCI05015-R68M-R8

0.68

20

100

6.0

10

23

MHCI05015-1R0M-R8

1.0

20

100

5.0

8.0

33

MHCI05015-1R5M-R8

1.5

20

100

4.0

6.0

50

MHCI05015-2R2M-R8

2.2

20

100

3.3

6.0

68

MHCI05015-3R3M-R8

3.3

20

100

3.0

5.0

84

MHCI05015-4R7M-R8

4.7

20

100

2.5

4.0

135

MHCI05015-5R6M-R8

5.6

20

100

2.2

3.5

175

MHCI05015-6R8M-R8

6.8

20

100

2.0

3.0

192

MHCI05015-100M-R8

10

20

100

1.5

2.0

195

 Irms

DC current (A) that will cause an approximate ΔT of 40℃

 Isat

DC current (A) that will cause L to drop approximately 30%



Tolerance：M= ±20%



L : WK 3260B, 100KHz 0.5V



Rdc : CHEN HWA 502



Operating temperature range from -55℃ to 125℃. (Including self - temperature rise)

Test Instruments：

WK3260B Impedance / Material Analyzer

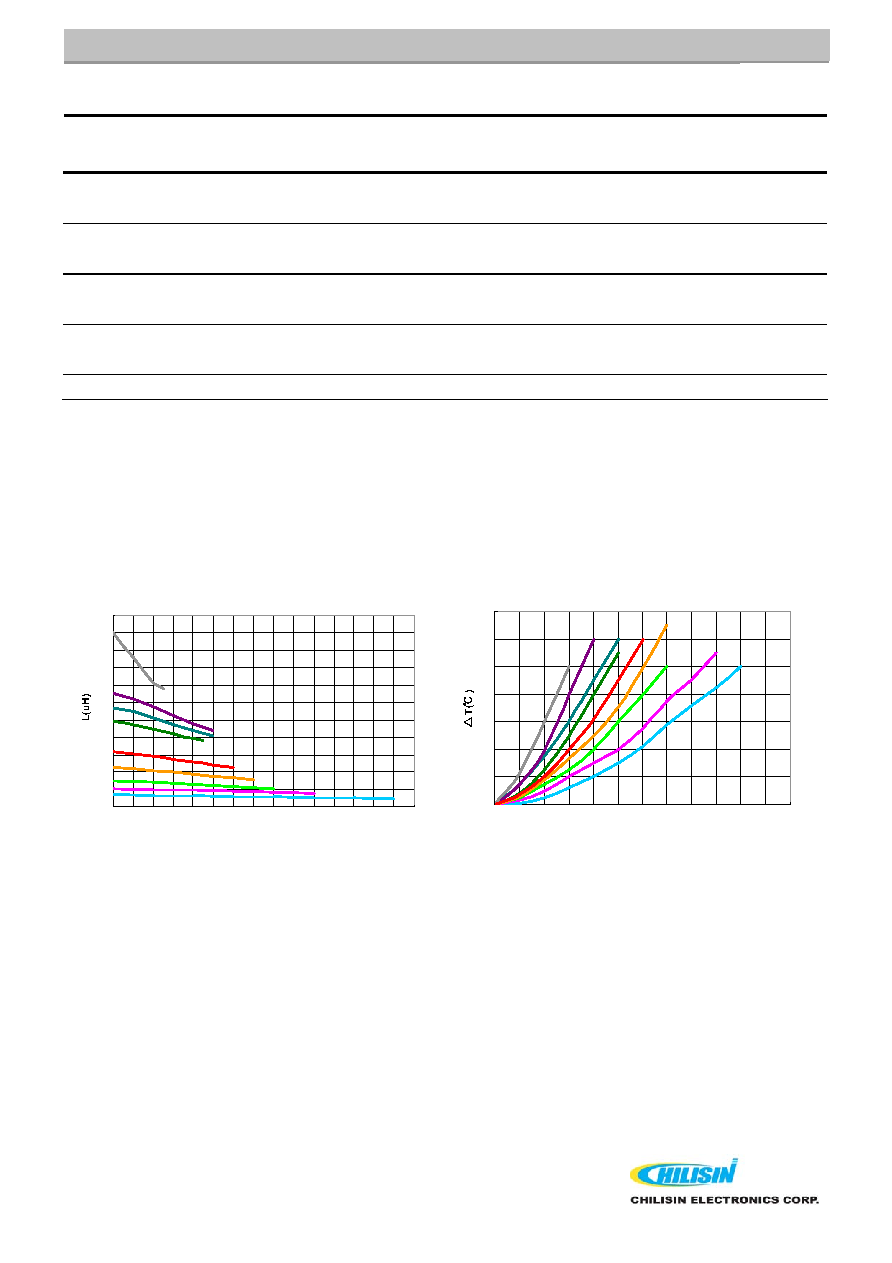

Inductance vs DC Current

0

1

2

3

4

5

6

7

8

9

10

11

0123

456789

10

11

12

13

14

15

DC Current(A)

100

6R8

5R6

4R7

3R3

2R2

1R5

1R0

R68

Tem perature Change v.s DC Current

0

20

40

60

80

100

120

140

012345

6789

10

11

12

DC Current(A)

100

6R8

5R6

4R7

3R3

2R2

1R5

1R0

R68
