Molding Power Choke – MHCC/MHCI Series

Electrical Characteristics

Inductance

Tolerance

Test

Frequency

Irms

Isat

RDC

Part Number

(uH)

(±%)

(KHz)

(A)Typ.

(A)Typ.

(mΩ)Max

MHCI06018-1R0M-R8

1.0

20

100

7.0

10.0

17

MHCI06018-1R5M-R8

1.5

20

100

5.0

10.5

28

MHCI06018-2R2M-R8

2.2

20

100

5.0

8.0

35

MHCI06018-3R3M-R8

3.3

20

100

3.5

8.0

60

MHCI06018-4R7M-R8

4.7

20

100

3.5

5.0

72

MHCI06018-6R8M-R8

6.8

20

100

2.8

3.5

110

 Irms

DC current (A) that will cause an approximate ΔT of 40℃

 Isat

DC current (A) that will cause L to drop approximately 30%



Tolerance：M= ±20%



L : WK 3260B, 100KHz 0.5V



Rdc : CHEN HWA 502



Operating temperature range from -55℃ to 125℃. (Including self - temperature rise)

Test Instruments：

WK3260B Impedance / Material Analyzer

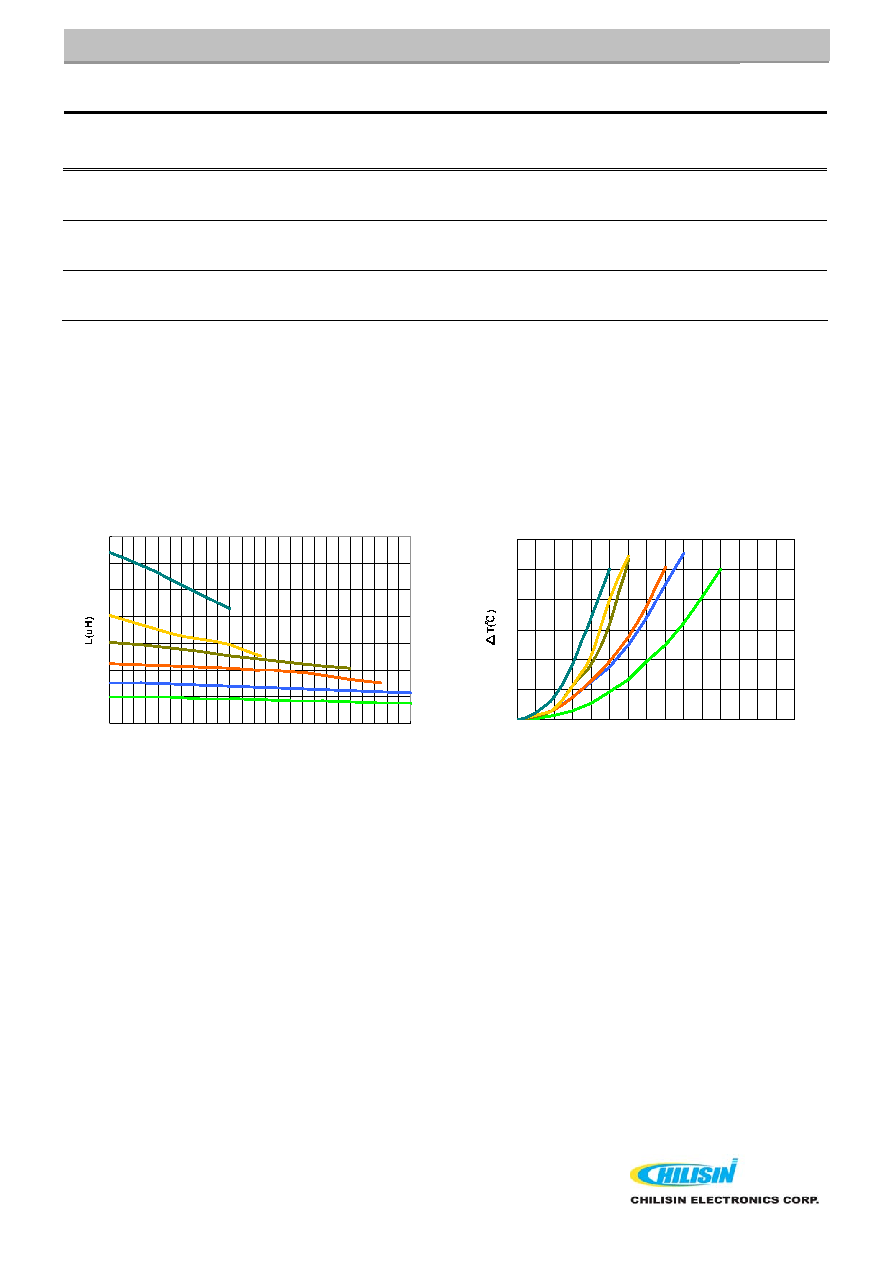

Inductance v.s DC Current

0

1

2

3

4

5

6

7

02

4

6

8

10

DC Current (A)

6R8

4R7

3R3

2R2

1R5

1R0

Tem perature Change v.s DC Current

0

20

40

60

80

100

120

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

DC Current (A)

6R8

4R7

3R3

2R2

1R5

1R0
