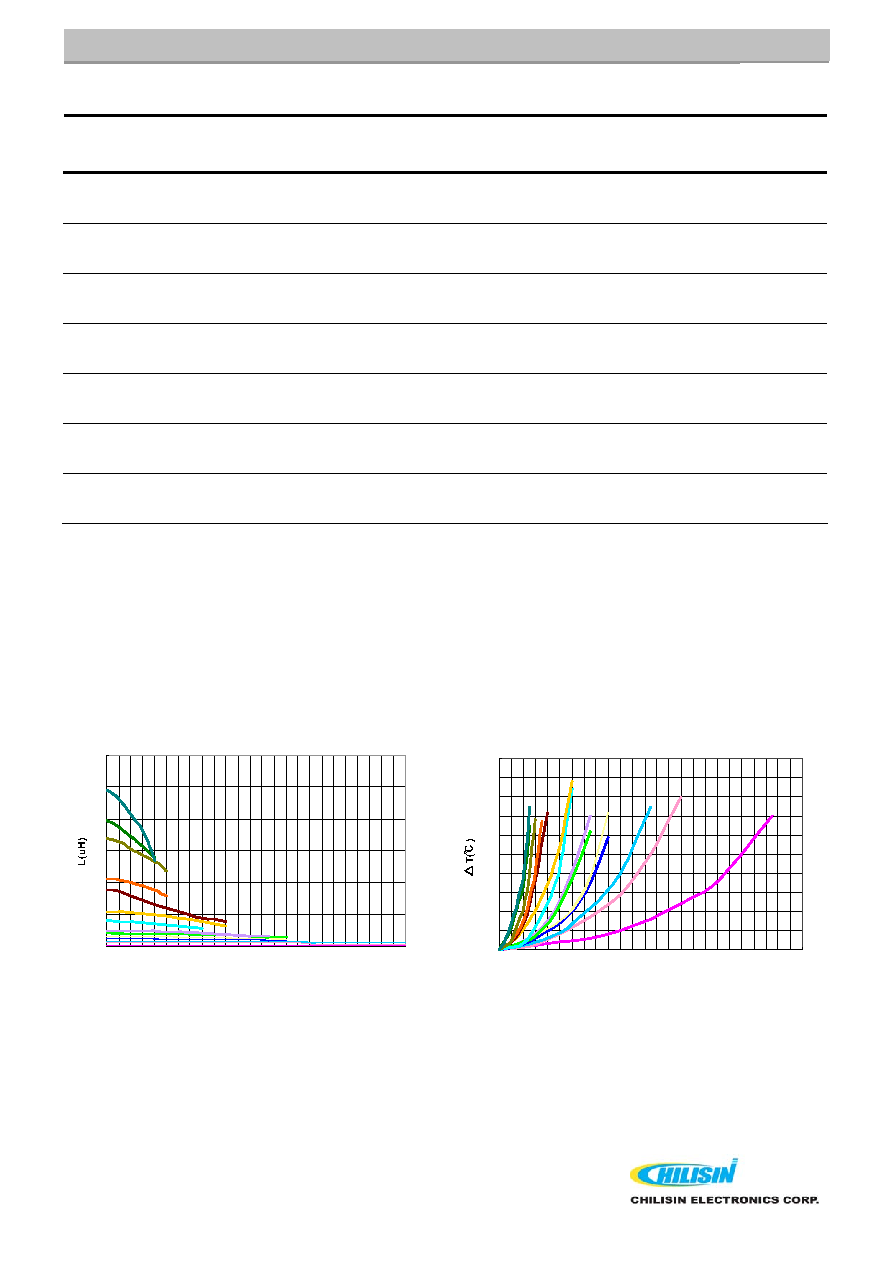

Molding Power Choke – MHCC/MHCI Series

Electrical Characteristics

Inductance

Tolerance

Test

Frequency

Irms

Isat

RDC

Part Number

(uH)

(±%)

(KHz)

(A)Typ.

(A)Typ.

(mΩ)Max

MHCI06030-R10M-R8

0.10

20

100

37

45

1.5

MHCI06030-R22M-R8

0.22

20

100

23

40

2.8

MHCI06030-R33M-R8

0.33

20

100

20

33

4.2

MHCI06030-R47M-R8

0.47

20

100

16.5

27

5.5

MHCI06030-R68M-R8

0.68

20

100

15

24

6.3

MHCI06030-R82M-R8

0.82

20

100

13

23

8.0

MHCI06030-1R0M-R8

1.0

20

100

12

22

10

MHCI06030-1R5M-R8

1.5

20

100

9.5

18

15

MHCI06030-2R2M-R8

2.2

20

100

8.5

14

20

MHCI06030-3R3M-R8

3.3

20

100

6.0

12

35

MHCI06030-4R7M-R8

4.7

20

100

5.5

9

40

MHCI06030-6R8M-R8

6.8

20

100

4.5

8

60

MHCC06030-8R2M-R7

8.2

20

100

4.5

6

60

MHCC06030-100M-R7

10

20

100

4.0

5.5

68

 Irms DC current (A) that will cause an approximate ΔT of 40°C

 Isat DC current (A) that will cause L to drop approximately 30%

 Tolerance：M= ±20%

 L : WK 3260B, 100KHz 0.5V

 Rdc : CHEN HWA 502

 Operating temperature range from -55℃ to 125℃. (Including self - temperature rise)

Test Instruments：WK3260B Impedance / Material Analyzer

Inductance v.s DC Current

0

2

4

6

8

10

12

0

1020

3040

50

DC Current (A)

100

6R8

4R7

3R3

2R2

1R5

R82

1R0

R68 R47 R33

R22 R10

8R2

Tem perature Change v.s DC Current

0

10

20

30

40

50

60

70

80

90

100

0

1020304050

DC Current (A)

100

8R2

6R8

4R7 3R3

2R2

1R5

R82

1R0

R68

R47

R33

R22

R10
