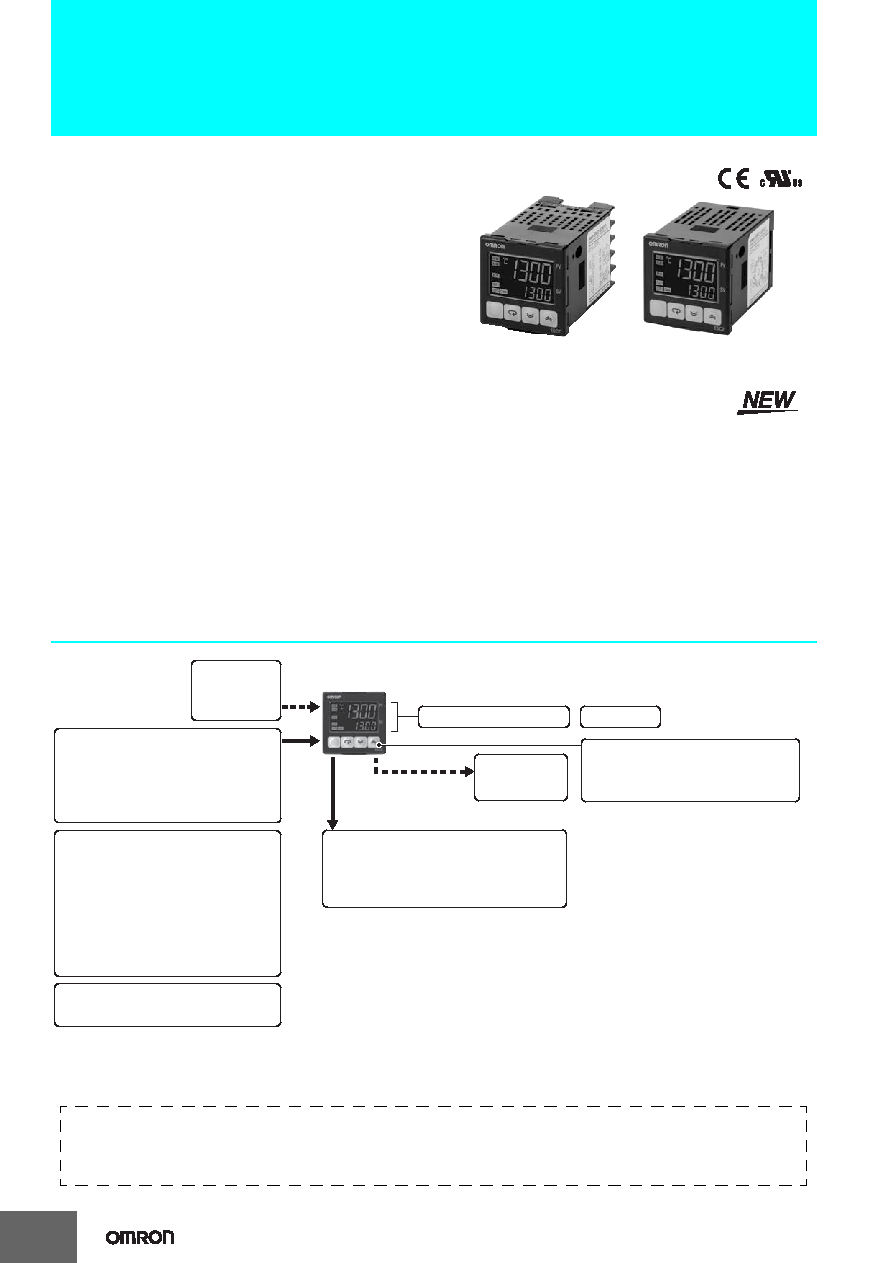

Digital Temperature Controllers

E5CZ/E5CZ-U

(48

× 48 mm)

This Best-selling General-purpose

×48-mm Temperature Controller

Is Now Even Better.

• Controllers now available with analog inputs.

• Faster sampling at 250 ms.

• Transfer output provided for easy output to recorders.

• Models available with a loop break alarm (LBA) and

heater short alarm (HS alarm).

• Easy setting with 11-segment displays.

• Setting protection indicator informs operator when

protection is enabled.

• Manual output provided.

• New protocol called Modbus is installed in the models

with communications.

• USB-Serial conversion cable is available.

Note: Refer to Precautions on page 33.

Note: Refer to page 30 for information on changes in comparison to

previous models.

Main I/O Functions

× 48 mm

E5CZ

× 48 mm

E5CZ-U

Event Inputs

• None

• Two

Sensor Inputs

• Universal thermocouple/Pt inputs

(Models with temperature inputs)

• Analog current/voltage inputs

(Models with analog inputs)

Indication Accuracy

E5CZ

• Thermocouple input:

±0.5% of PV

• Pt input:

±0.5% of PV

E5CZ-U

• Thermocouple input:

±1% of PV

• Pt input:

±0.5% of PV

• Analog input:

±0.5% FS

Sampling Period

• 250 ms

Control Output 1

• Relay output

• Voltage output (for driving SSR)

• Current output

Alarm Outputs

• Two

2-level Display: PV and SV

4-digit Display

E5CZ

• Auto/manual switching

• Models also available with RS-485

communications

This data sheet is provided as a guideline for selecting products. Be sure to refer to the following user manuals for application precautions

and other information required for operation before attempting to use the product.

E5CZ/E5CZ-U/E5AZ/E5EZ Digital Temperature Controllers User's Manual (Cat. No. H207)

E5CZ/E5CZ-U/E5AZ/E5EZ Digital Temperature Controllers Communications Manual (Cat. No. H208)
