SPI MODES DESCRIPTION

Multiple IS25LP256 devices can be connected on the SPI serial bus and controlled by a SPI Master, i.e.

microcontroller, as shown in Figure 4.1. The devices support either of two SPI modes:

Mode 0 (0, 0)

Mode 3 (1, 1)

The difference between these two modes is the clock polarity. When the SPI master is in stand-by mode, the

serial clock remains at “0” (SCK = 0) for Mode 0 and the clock remains at “1” (SCK = 1) for Mode 3. Please refer

to Figure 4.2 and Figure 4.3 for SPI and QPI mode. In both modes, the input data is latched on the rising edge

of Serial Clock (SCK), and the output data is available from the falling edge of SCK.

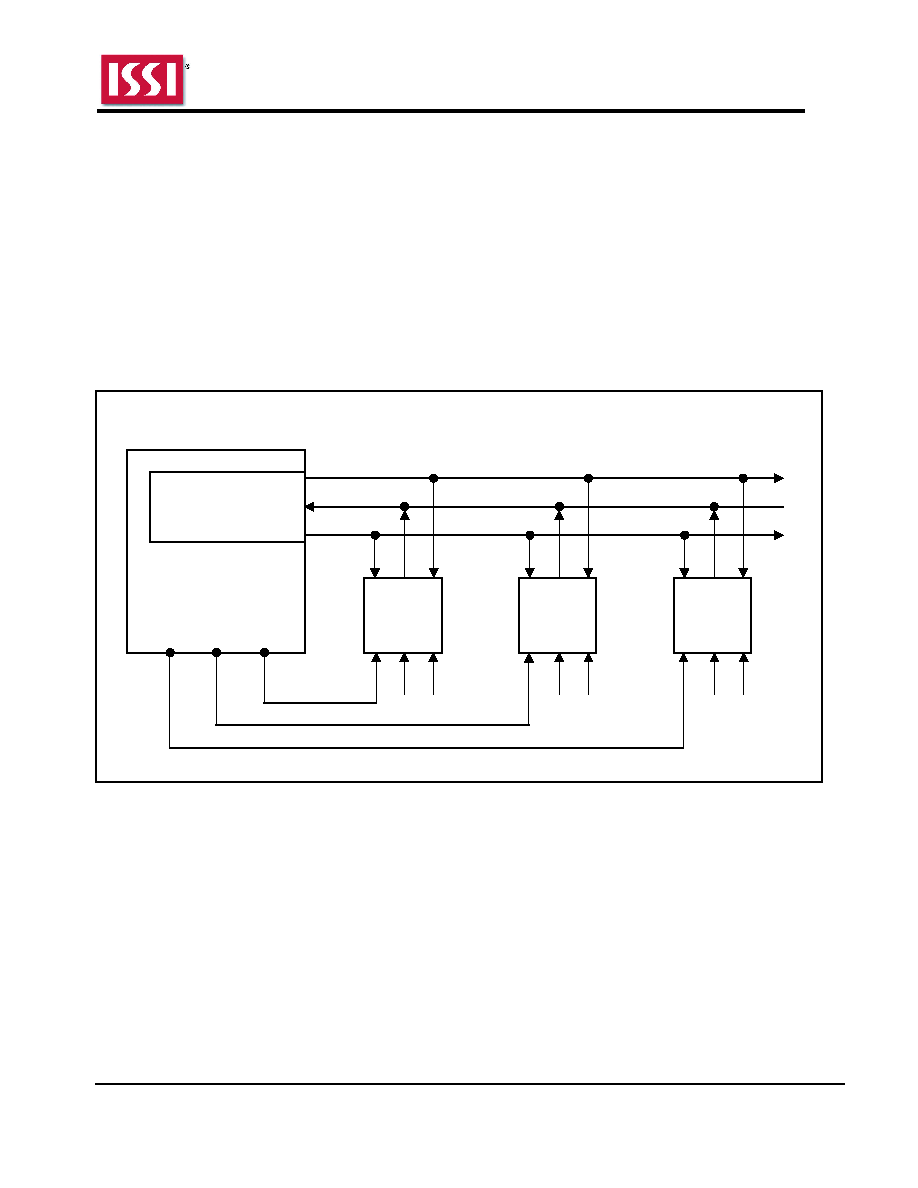

Figure 4.1 Connection Diagram among SPI Master and SPI Slaves (Memory Devices)

Notes:

1. In case of 16-pin SOIC package, RESET# pin will be added to another pin without sharing with HOLD# pin for the

dedicated parts. Call Factory for the additional RESET# pin option.

2. SI and SO pins become bidirectional IO0 and IO1, and WP# and HOLD# pins become IO2 and IO3 respectively

during QPI mode.
