AD8555
Rev. 0 | Page 14 of 28
TIME (100
µs/DIV)
5
6
4
3
2
1
0
SUPPLY VOLTAGE
VOUT

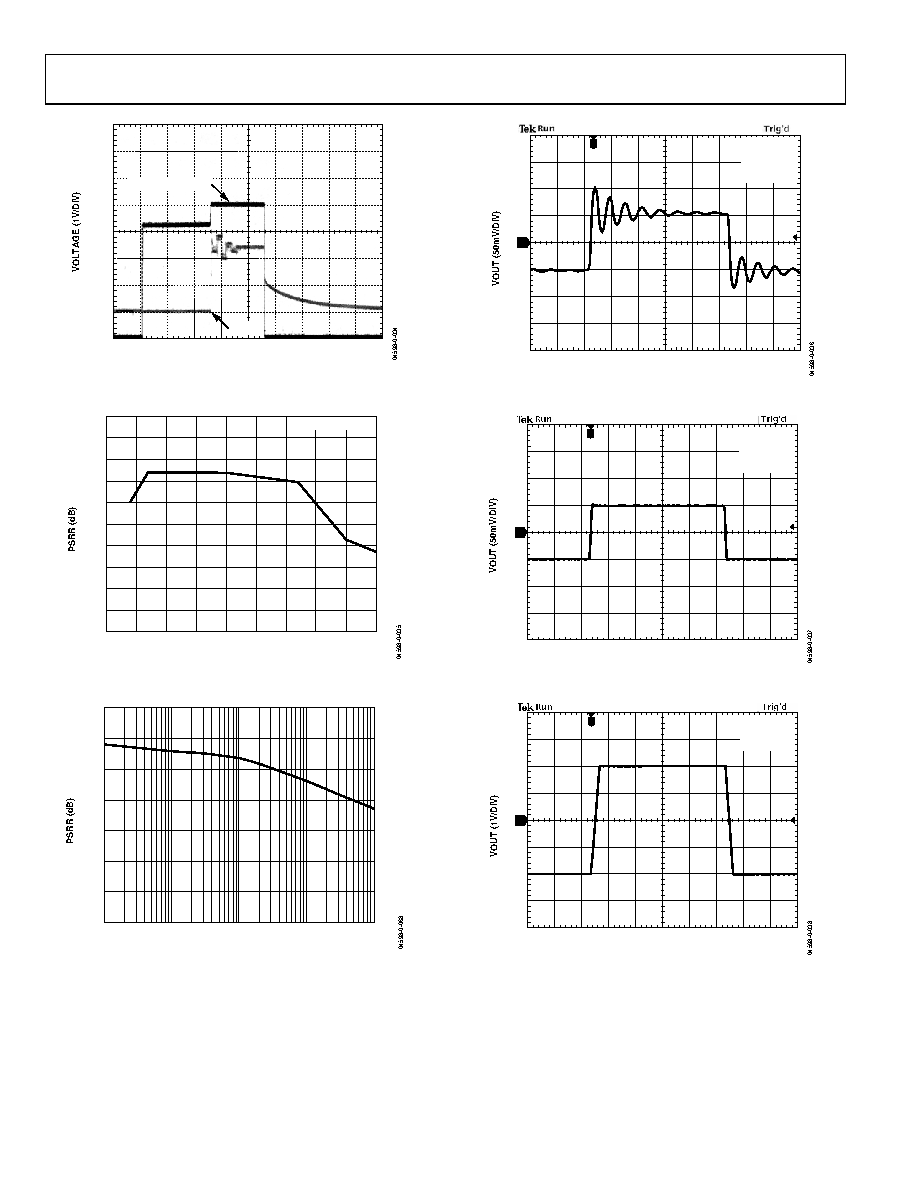

Figure 34. Power-On Response at −40°C
TEMPERATURE (°C)
150
–75
–50
–25
0
25
50
75
100
125
100
150
135
130
125
145
140
120
115
110
105
VS = 2.7V TO 5.5V
Figure 35. PSRR vs. Temperature
FREQUENCY (kHz)
100
0.01
0.1
1
10
140
120
100
80
60
40
20
0
Figure 36. PSRR vs. Frequency
TIME (100
µs/DIV)
2
T
VS = ±2.5V
GAIN = 70
CL = 0.1µF
FIN = 10kHz
Figure 37. Small Signal Response
TIME (100
µs/DIV)
T
2
VS = ±2.5V
GAIN = 70
CL = 100pF
FIN = 1kHz
Figure 38. Small Signal Response
TIME (10
µs/DIV)
2
T
VS = ±2.5V
GAIN = 70
CL = 100pF
Figure 39. Large Signal Response
