FT51A Advanced MCU with 8051 Compatible Core IC Datasheet

Version 1.5

Doc ument N o.: FT _000877

C learance N o.: FT DI#420

Future Technology Devices

FT51A

(Advanced Microcontroller with 8051

Compatible Core)

The FT51A is a multi-featured device that can be

targeted at

a wide range of functions or

applications:



Industry compatible 8051 core running at a

maximum frequency of 48MHz.



8 KB of data memory



16 KB of multi-time programmable (MTP) memory



16 KB of shadow memory for fast read access by

the core.



USB 2.0 Full Speed hub controller allowing

cascading of multiple FT51A devices



USB 2.0 Full Speed device controller compatible to

FT12 series



Supports up to 8 bi-directional endpoints with 2 x

1 KB USB endpoint buffers



Max packet size is 504 bytes for USB isochronous

endpoint and 64 bytes for control / bulk / interrupt

endpoint



Double buffer scheme for any endpoint, increases

data transfer throughput



Fully integrated clock generation with no external

crystal required



Data transfer rates from 300 baud to 3M baud

(RS422, RS485, and RS232) at TTL levels



PWM Controller



UART interface support for 7 or 8 data bits, 1 or 2

stop bits and odd / even / mark / space / no parity



USB Battery Charger Detection allowing optimized

charging profile



Supports DMA operation





SPI Master & Slave functionality



245 FIFO module provides a simple FIFO interface

to transmit and receive data



Timer and Watchdog



Up to 16 dedicated digital IO pins



Up to 16 multiplexed analogue / digital IO pins



Support ADC function on analogue IO pins



IO Mux control for maximum flexibility in pin

selection



Configurable IO pin output drive strength; 4 mA

(min) and 16 mA (max)



+5V Single Supply Operation



Internal 3.3V/1.8V voltage regulators



Integrated power-on-reset circuit



Low operating and suspend current; 20 mA

(active) and 150 uA (suspend)



Extended operating temperature range; -40 to

85⁰C



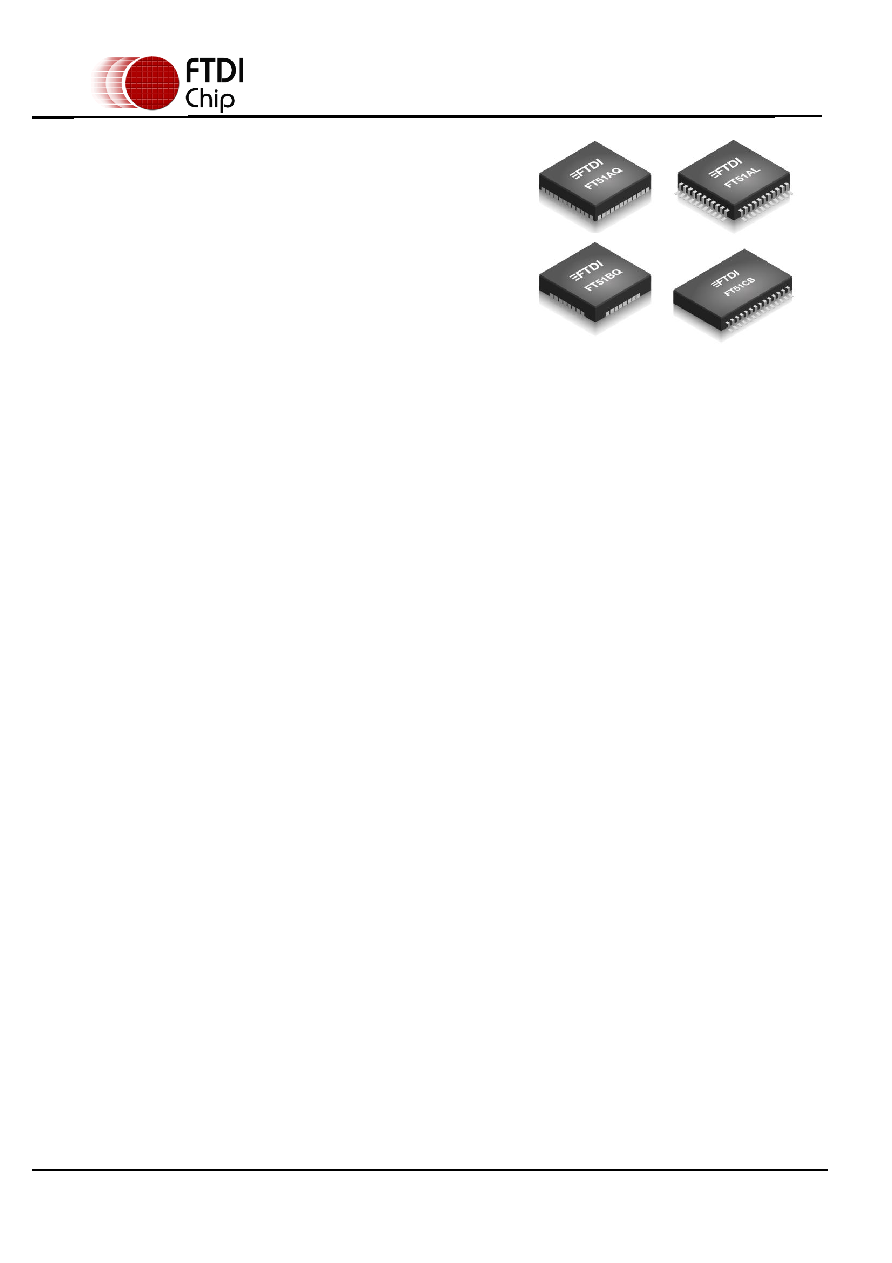

Available in compact Pb-free, RoHS compliant

packages:

•

48-pin WQFN

•

44-pin LQFP

•

32-pin WQFN

•

28-pin SSOP
