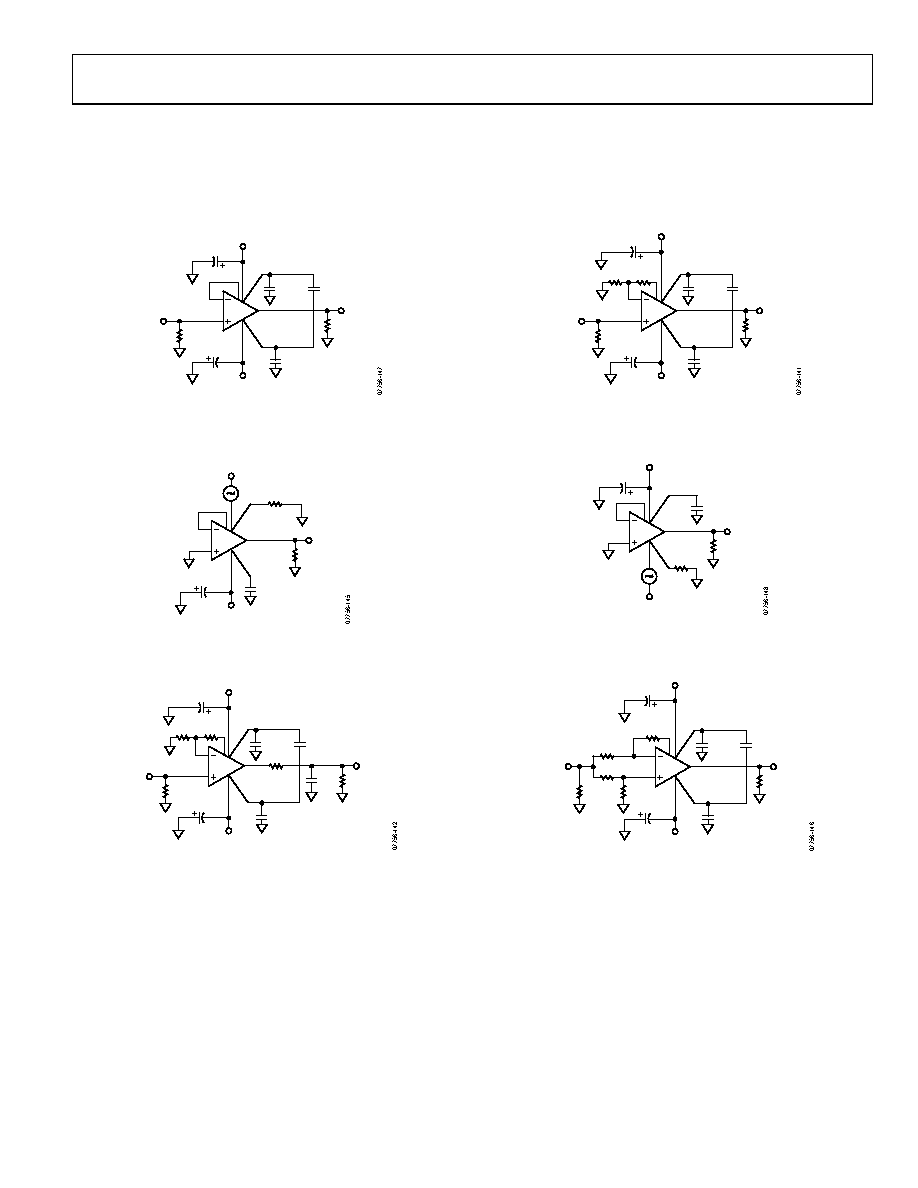

13 / 25 page ![]() Data Sheet ADA4817-1/ADA4817-2 Rev. C | Page 13 of 25 TEST CIRCUITS The output feedback pins are used for ease of layout as shown in Figure 35 to Figure 40. VIN VOUT 0.1µF 0.1µF 0.1µF 10µF +VS –VS 49.9Ω RL 10µF Figure 35. G = 1 Configuration VOUT 0.1µF 49.9Ω +VS –VS RL 10µF AC Figure 36. Positive Power Supply Rejection VIN VOUT 0.1µF 0.1µF 10µF +VS –VS 49.9Ω RL 0.1µF CL 10µF RF RSNUB RG Figure 37. Capacitive Load Configuration VIN VOUT 0.1µF 0.1µF 0.1µF 10µF +VS –VS 49.9Ω RL 10µF RF RG Figure 38. Noninverting Gain Configuration 0.1µF VOUT +VS –VS RL 10µF AC 49.9Ω Figure 39. Negative Power Supply Rejection VIN VOUT 0.1µF 0.1µF 0.1µF 10µF +VS –VS 1kΩ 1kΩ 1kΩ 1kΩ 53.6Ω RL 10µF Figure 40. Common-Mode Rejection |
|
|
