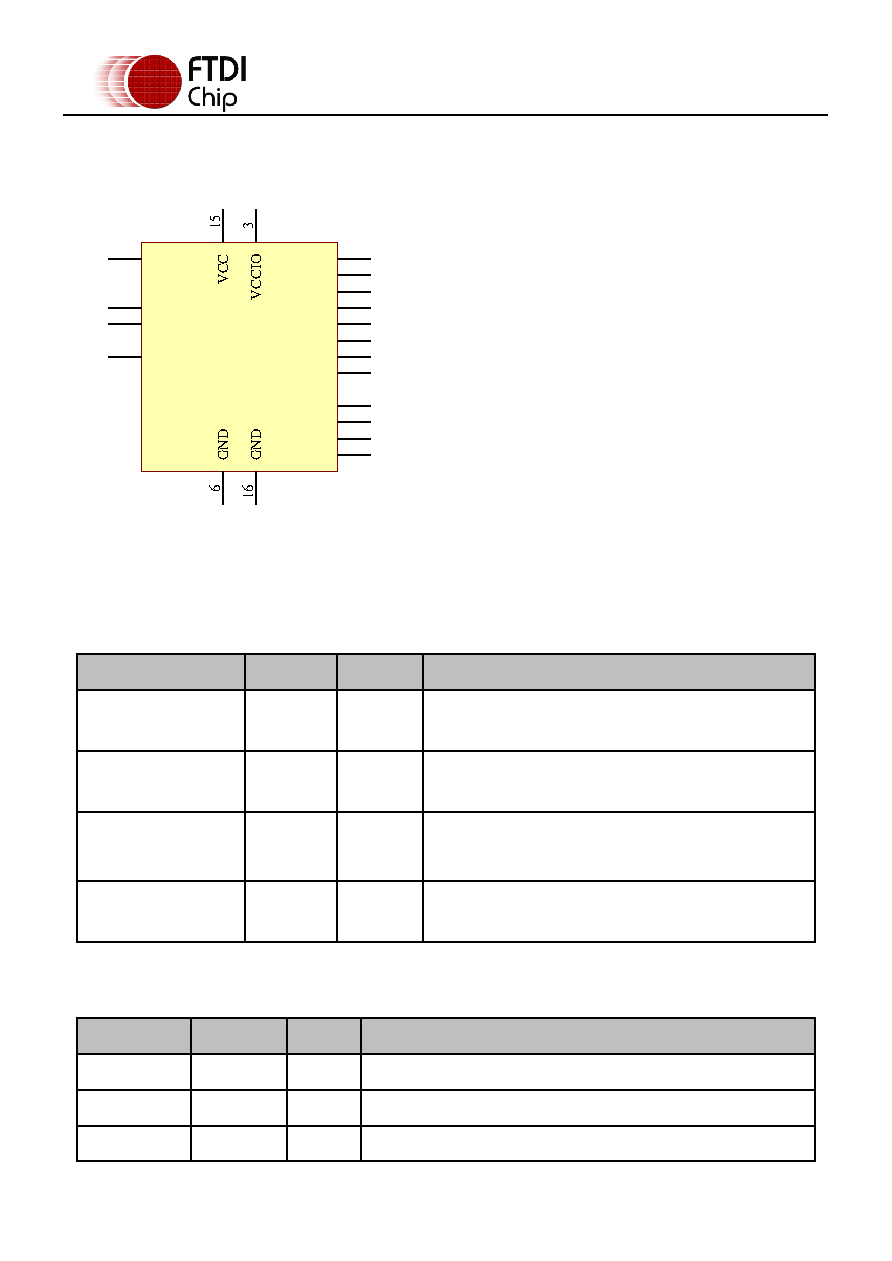

9 / 44 page ![]() Copyright © 2013 Future Technology Devices International Limited 9 FT231X USB TO FULL HANDSHAKE UART IC Datasheet Version 1.2 Document No.: FT_000565 Clearance No.: FTDI# 261 3.2 20-LD SSOP Package RXD 4 RI# 5 DSR# 7 DCD# 8 CTS# 9 CBUS2 10 USBDP 11 USBDM 12 3V3OUT 13 RESET# 14 CBUS1 17 CBUS0 18 CBUS3 19 TXD 20 DTR# 1 RTS# 2 Figure 3.2 SSOP Schematic Symbol 3.2.1 SSOP Package PinOut Description Note: # denotes an active low signal. Pin No. Name Type Description 15 ** VCC POWER Input 5 V or 3V3 supply to IC 3 VCCIO POWER Input 1V8 – 3V3 supply for the IO cells 13 ** 3V3OUT POWER Output 3V3 output at 50mA. May be used to power VCCIO. When VCC is 3V3, pin 13 is an input pin. 6, 16 GND POWER Input 0V Ground input. Table 3.4 Power and Ground ** If VCC is 3V3 then 3V3OUT must also be driven with 3V3 input Pin No. Name Type Description 12 USBDM INPUT USB Data Signal Minus. 11 USBDP INPUT USB Data Signal Plus. 14 RESET# INPUT Reset input (active low). Table 3.5 Common Function pins |
|
