Copyright © 2013 Future Technology Devices International Limited

1

FT231X USB TO FULL HANDSHAKE UART IC

Datasheet

Version 1.2

Document No.: FT_000565 Clearance No.:

FTDI# 261

Future Technology

FT231X

The FT231X is a USB to serial UART

interface with full modem control and

the following advanced features:



Single chip USB to asynchronous serial data

transfer interface.



Entire USB protocol handled on the chip. No

USB specific firmware programming required.



Fully

integrated

2048

byte

multi-time-

programmable (MTP) memory, storing device

descriptors and CBUS I/O configuration.



Fully integrated clock generation with no

external crystal required plus optional clock

output selection enabling glue-less interface

to external MCU or FPGA.



Data transfer rates from 300 baud to 3 Mbaud

(RS422, RS485, and RS232 ) at TTL levels.



512 byte receive buffer and 512 byte transmit

buffer utilising buffer smoothing technology to

allow for high data throughput.



FTDI’s royalty-free Virtual Com Port (VCP)

and Direct (D2XX) drivers eliminate the

requirement for USB driver development in

most cases.



Configurable CBUS I/O pins.



Transmit and receive LED drive signals.



UART interface support for 7 or 8 data bits, 1

or 2 stop bits and odd / even / mark / space

no parity



Synchronous and asynchronous bit bang

interface options with RD# and WR# strobes.



USB Battery Charger Detection. Allows for USB

peripheral devices to detect the presence of a

higher

power

source

to

enable

improved

charging.



Device supplied pre-programmed with unique

USB serial number.



USB

Power

Configurations;

supports

bus-

powered, self-powered and bus-powered with

power switching



Integrated +3.3V level converter for USB I/O.



True 3.3V CMOS drive output and TTL input;

Operates down to 1V8 with external pull-ups.

Tolerant of 5V input.



Configurable I/O pin output drive strength; 4

mA(min) and 16 mA(max).



Integrated power-on-reset circuit.



Fully integrated AVCC supply filtering - no

external filtering required.



UART signal inversion option.



+ 5V Single Supply Operation.



Internal 3V3/1V8 LDO regulators

Low operating and USB suspend current; 8mA

(active-typ) and 125uA (suspend-typ).



UHCI/OHCI/EHCI host controller compatible



USB 2.0 Full Speed capable.



Extended operating temperature range; -40 to

85⁰C.



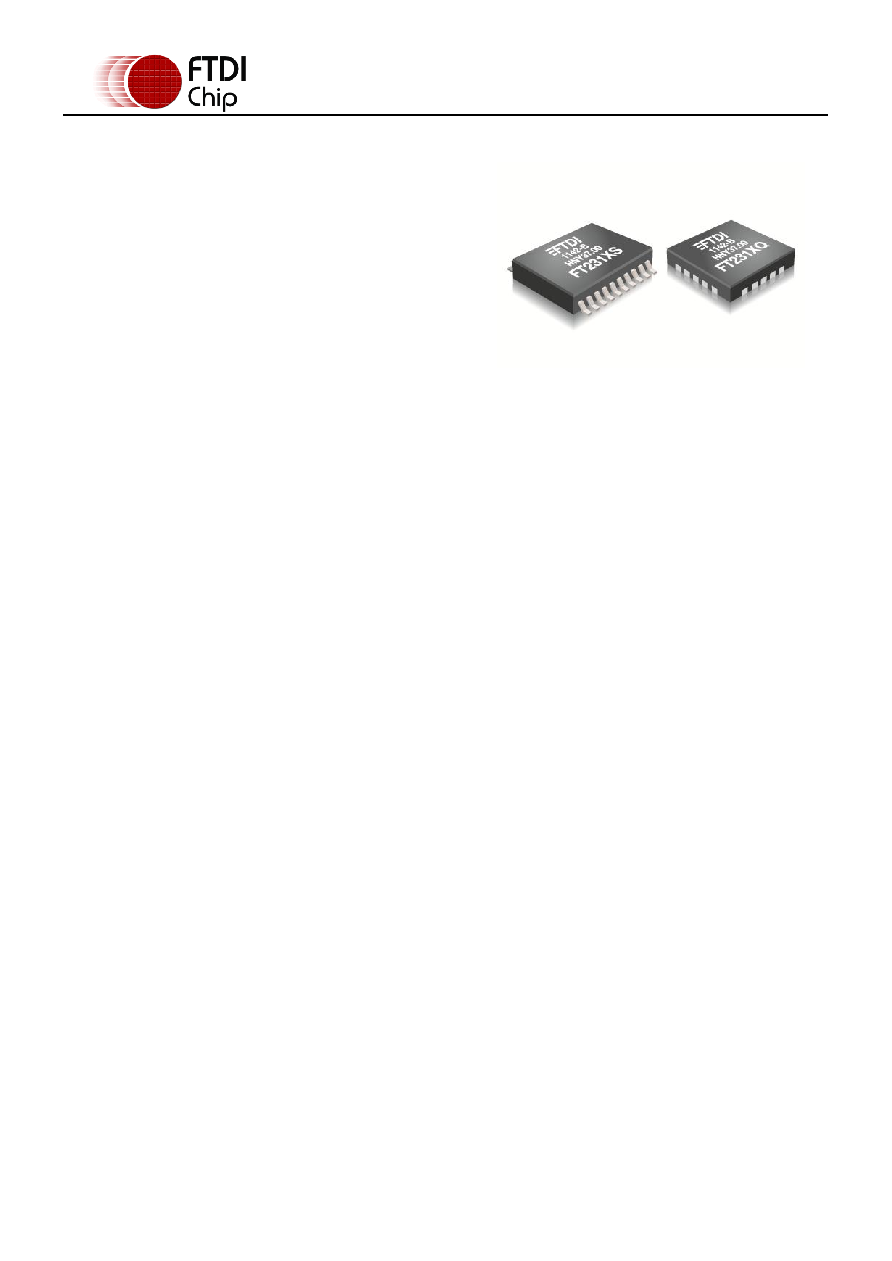

Available in compact, Pb-free, 20 Pin SSOP and

QFN packages (both RoHS compliant).
