FT240X USB 8-BIT FIFO IC Datasheet
Version 1.3
Document No.: FT_000626 Clearance No.:
FTDI# 259

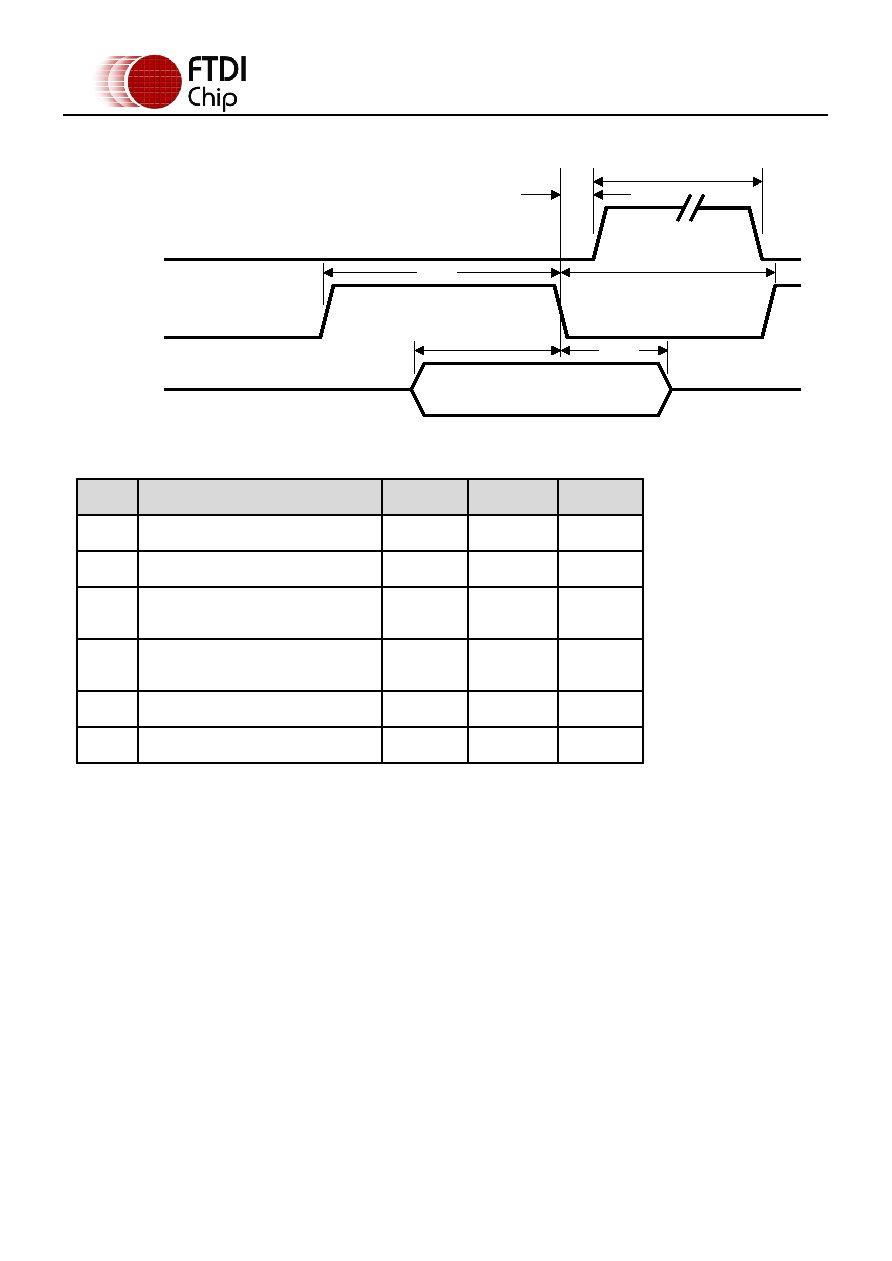

3.7 FT240X FIFO WRITE Timing Diagrams
Figure 3.4 FIFO Write Cycle
Time
Description
Minimum
Maximum Unit
T7
WR Active Pulse Width
50
-
ns
T8
WR to WR Pre-Charge Time
50
-
ns
T9
Valid data setup to WR falling
edge*
20
-
ns
T10
Valid Data Hold Time from WR
Inactive*
0
-
ns
T11
WR Inactive to TXE#
5
25
ns
T12
TXE# Inactive After WR Cycle
80
-
ns
Table 3.11 FIFO Write Cycle
*Load = 30pF
Valid Data
D[7...0]
WR
TXE#
T7
T12
T11
T8
T9
T10
