FT240X USB 8-BIT FIFO IC Datasheet

Version 1.3

Document No.: FT_000626 Clearance No.:

FTDI# 259

Future Technology

FT240X

(USB 8-BIT FIFO IC)

The FT240X is a USB to parallel FIFO

interface with the following advanced

features:



Single chip USB to parallel FIFO bidirectional

data transfer interface.



Entire USB protocol handled on the chip. No

USB specific firmware programming required.



Fully integrated 2048 byte multi-time-

programmable (MTP) memory, storing device

descriptors and FIFO I/O configuration.



Fully integrated clock generation with no

external crystal required plus optional clock

output selection enabling glue-less interface to

external MCU or FPGA.



Data transfer rates up to 1Mbyte / second.



512 byte receive buffer and 512 byte transmit

buffer utilising buffer smoothing technology to

allow for high data throughput.



FTDI’s royalty-free Virtual Com Port (VCP) and

Direct (D2XX) drivers eliminate the

requirement for USB driver development in

most cases.



Configurable FIFO interface I/O pins.



Synchronous and asynchronous bit bang

interface options.



USB Battery Charger Detection. Allows for USB

peripheral devices to detect the presence of a higher

power source to enable improved charging.



Device supplied pre-programmed with unique USB

serial number.



USB Power Configurations; supports bus- powered,

self-powered and bus-powered with power

switching.



Integrated +3.3V level converter for USB I/O.



True 3.3V CMOS drive output and TTL input;

operates down to 1V8 with external pull-ups.

Tolerant of 5V input.



Configurable I/O pin output drive strength; 4

mA(min) and 16 mA(max).



Integrated power-on-reset circuit.



Fully integrated AVCC supply filtering - no external

filtering required.



+5V Single Supply Operation.



Internal 3V3/1V8 LDO regulators



Low operating and USB suspend current; 8mA

(active-typ) and 125uA (suspend-typ).



UHCI/OHCI/EHCI host controller compatible.



USB 2.0 Full Speed capable.



Extended operating temperature range; -40 to 85⁰C.



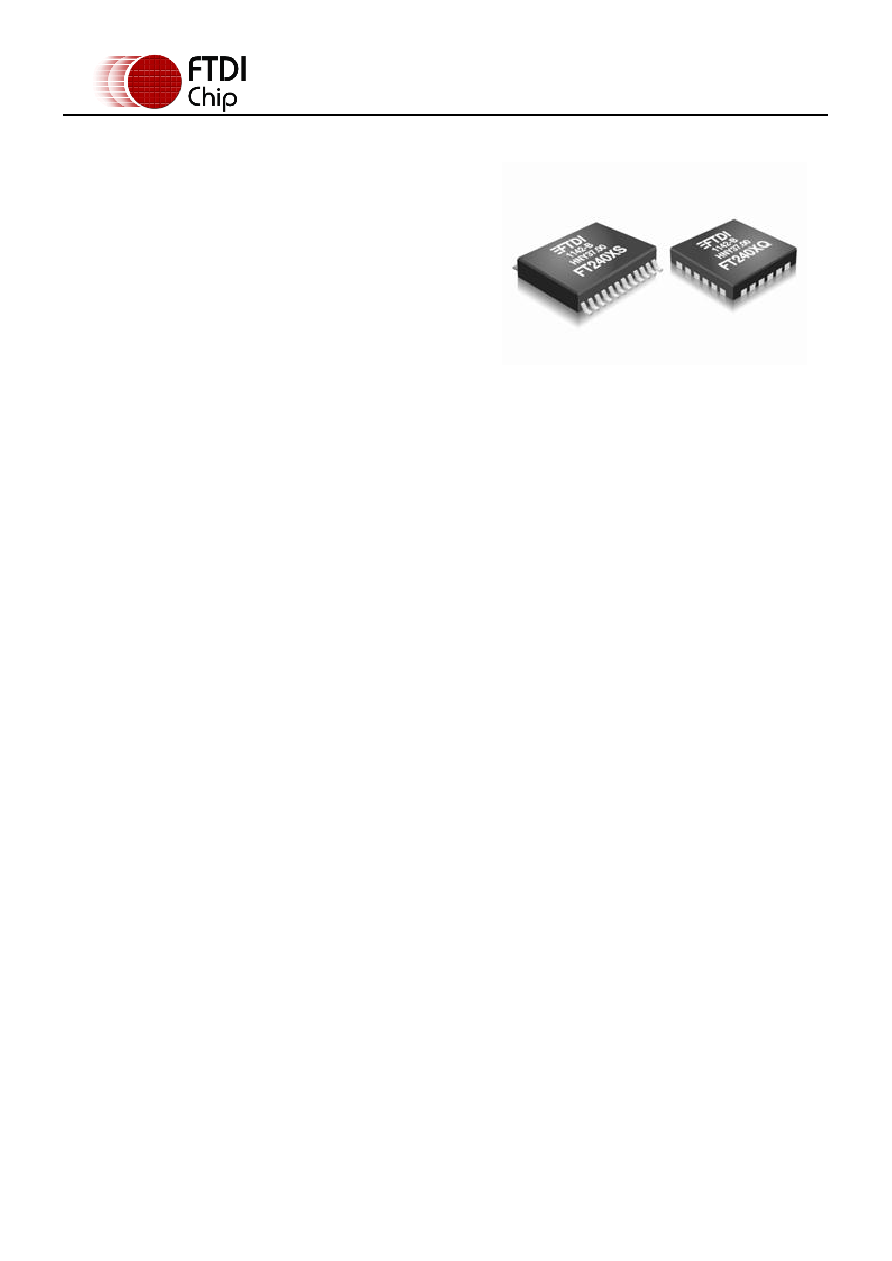

Available in compact Pb-free 24 Pin SSOP and QFN-

24 packages (both RoHS compliant).
