○ Assembly Instruction（（1）

A

Ferrule

Outer Conductor

Sheath

Ferrule

B

C

B

C

Center Conductor

（Pre-soldering）

Center Conductor

（Pre-soldering）

Body end face

Contact

No gap

Soldering

Insulator

Dies：Ｂ

Cable

Body Assembly

Heat-shrinkable tube

Heat-shrinkable tube

Part Number

A

B

C

27DS-P-1.5-CF

6.4

2.4

1.6

27DS-P-196U-CF

5.4

2.4

1.6

27DS-BJ-1.5-CF

8.0

2.4

2.4

■ Dimension table interfere

0

-0.4

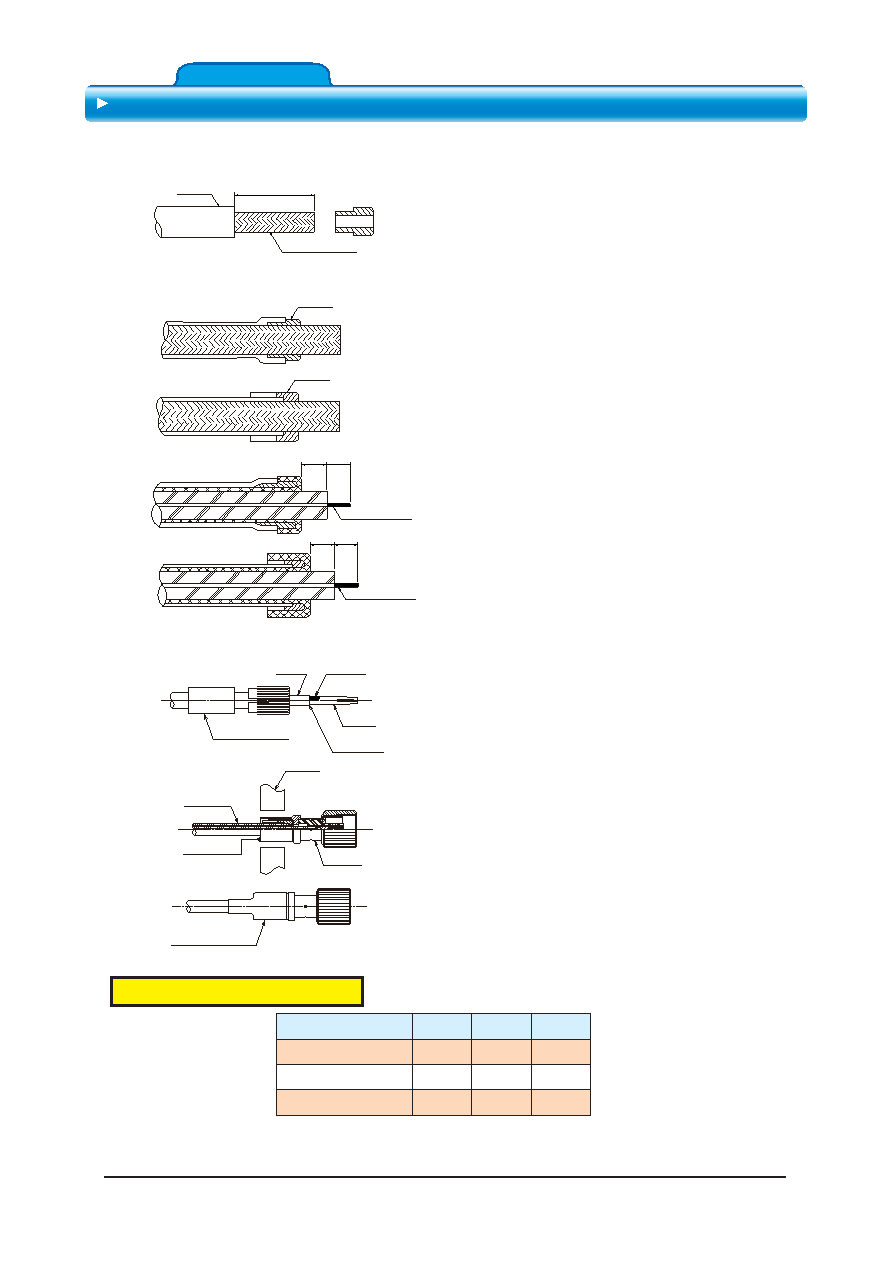

① Cut the cable as fig.1.

　

Cut off in the A size from an end face of a cable.

　Please be careful to not damage the outer

conductor.

② Insert Ferrule

1）At 1.5D-2V and 1.5D-QEV, an application cable

puts a ferrule in inside outside covering.

2）Application cable is RG-196A/U, a ferrule inserts

until bump against covering outside the cable.

④ Soldering of Central Contact

　Solder up the contact with the center conductor.

Please be careful to not deform the insulator by heat.

When the solder is stick out, please shave the extra

solder.　No gap between contact and insulator ofthe

　cable. Let the cable through the shrinkage tube.

to Trim the outer ferrule wrap.

Next Dimension B, C (see Table interfere dimension)

so that, except off to adhere to the wound center

conductor of the cable insulation.　

Central Conductor soldered.

assembled, make sure the position of the contact center.

Crimp the edge according to dies assembled body

and face as shown on left and then using a special

tool.

cover, heat and fix heat-shrinkable tubing like a left figure.

①

②

③

④

⑤

⑥
