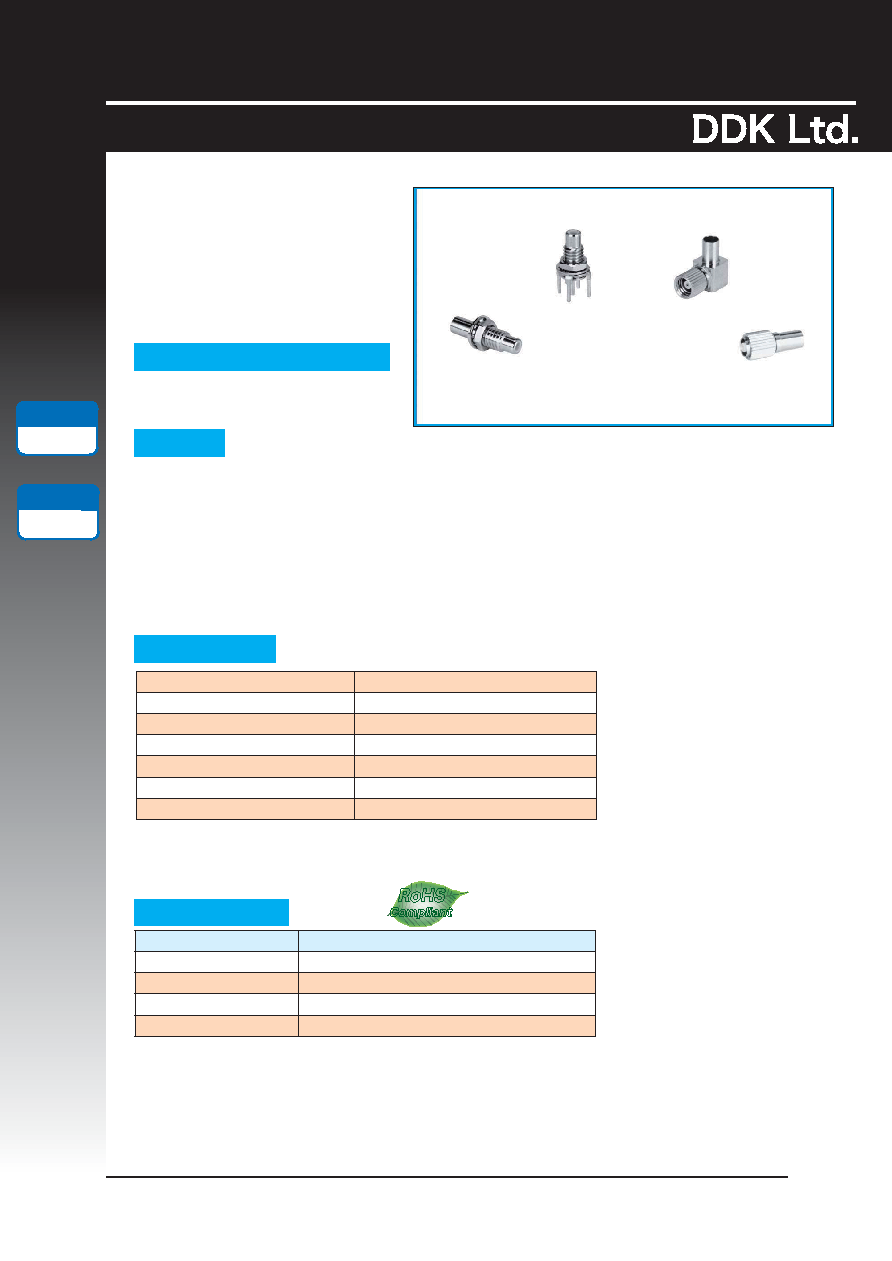

27DS Series

SMC Type Coaxial Connector

RoHS

Compliant

RoHS

Compliant

121226

Frequency

Range

DC to 1GHz

Characteristic

Impedance

50 Ω

FEATURE

SPECIFICATIONS

MATERIAL/FINISH

＊ The specifications are typical but may not apply to all connectors. Please check

　 the specifications on each item with its drawing from us when you use.

　Characteristic Impedance

　50 Ω

　Rated Voltage

335VAC(r.m.s.)　

　Dielectric Withstanding Voltage 　1,000V AC(r.m.s.) for 1minute

　Insulation Resistance

　1,000M Ω min. at 500V DC

　Contact Resistance

　6m Ω max.

　V.S.W.R.

　1.2 max. at DC to 1GHz

Operating Temperature

-40 〜 +85℃

CONFORMING STANDARD

MIL−PRF−39012

◆ 27DS series are connectors produced based on

SMC type (Sub miniature type C) specified inMIL-PRF-39012.

◆ Super small size coaxial cable connectors for 50 Ω group corresponding

to minimization of communication equipment.

◆ Recommendation coupling torque : 24.5 ～ 35.3 N･cm

Item

Material / Finish

Shell (Body)

Copper Alloy / Ni or Au Plating

Contact (Male)

Copper Alloy / Au Plating

Contact (Female)

Copper Alloy / Au Plating

Insulator

PTFE

※ Please ask us for the cable assemblies to assure its performance.
