Unit：mm

http://www.ddknet.co.jp

27DS Series

5

◎ Specifications and/or dimensions in this catalog are subject to change without notice.

　Your checking the latest specifications with our drawings would be highly appreciated.

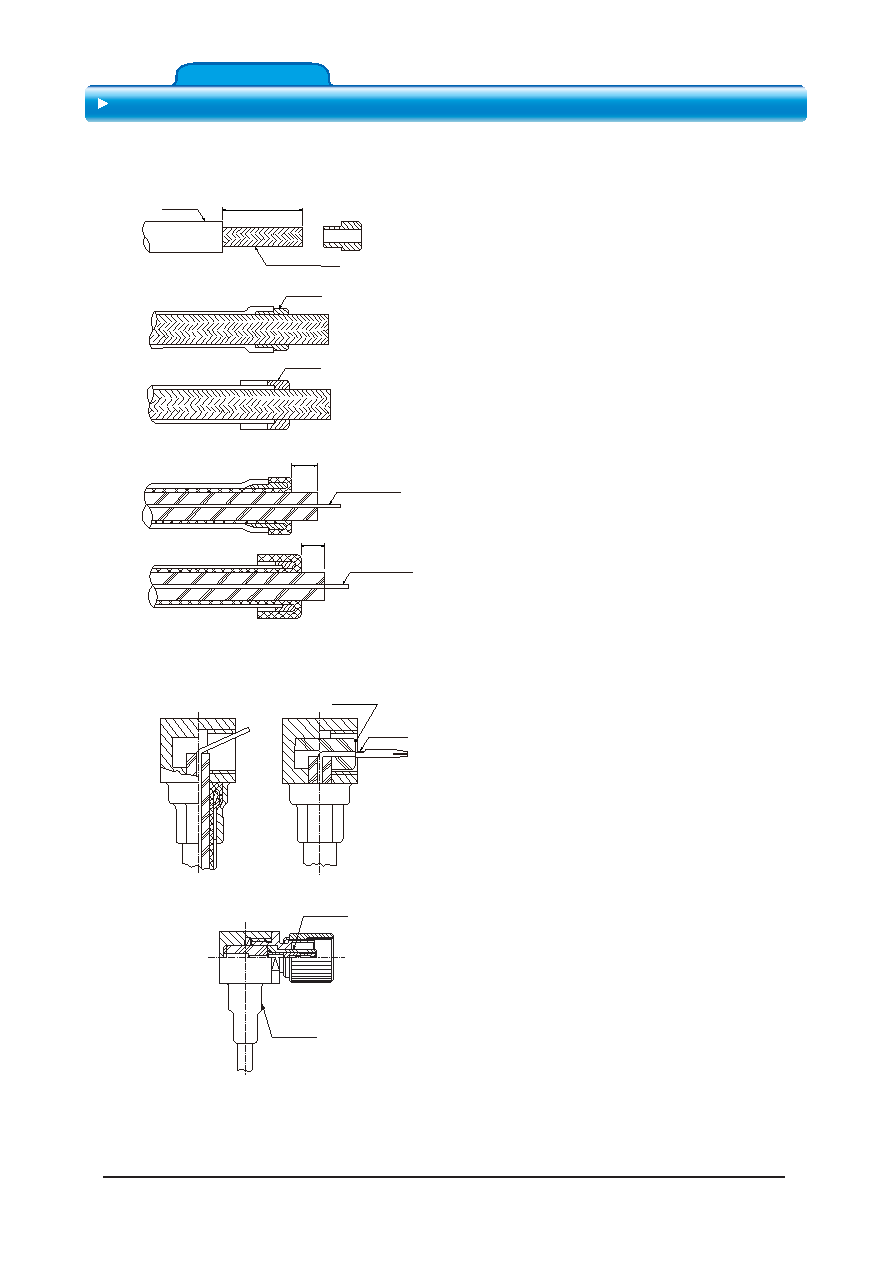

○ Assembly Instruction（2）

23

Ferrule

Ferrule

2.5

2.5

Sheath

 Outer Conductor

Center Conductor

Center Conductor

Soldering

Insulator ①

Insulator ②

Boot

① Remove outer covering.

Insert the boot into the cable and　cut the cable as fig.1.

　Please be careful to not damage the outer conductor.

② Insert Ferrule

(1) 1.5D-2V and 1.5D-QEV, an application cable

puts a ferrule in inside outside covering.

(2)Application cable is RG-196A/U, a ferrule inserts

until bump against covering outside the cable.

③ Stretched to loosen the cable braid, covers the extent

to Trim the outer ferrule wrap.

　Central Conductor isn't damaged, the insulator of the

　cable is cut and removed like next becoming the size as

fig.3.

　

　cable　Put the tip of the center conductor through

　the hole of the main body of connector.The part

　where covered a ferrule with and braiding is inserted

　until bump in the connector body, crimp in the same

　way as the above using an exclusive tool.

cable and inserted in the connector, and makes sure

that the of the Insulator(1) will fit into the insulator of

the cable.

sure that pulling the loose end of the center conductor

　length of 1.5mm to be the size of the tip Cut the pre-

　soldering.

　Central contact is forced and pays attention and 　　

　solders so that I may hit an insulator(1) closely.

of combination department on the top protests and

tightens it with a spanner firmly.　

Cover it with a heatshrinkage Boot like a left-hand

figure and fix it.　

①

②

③

④

⑤

⑥
