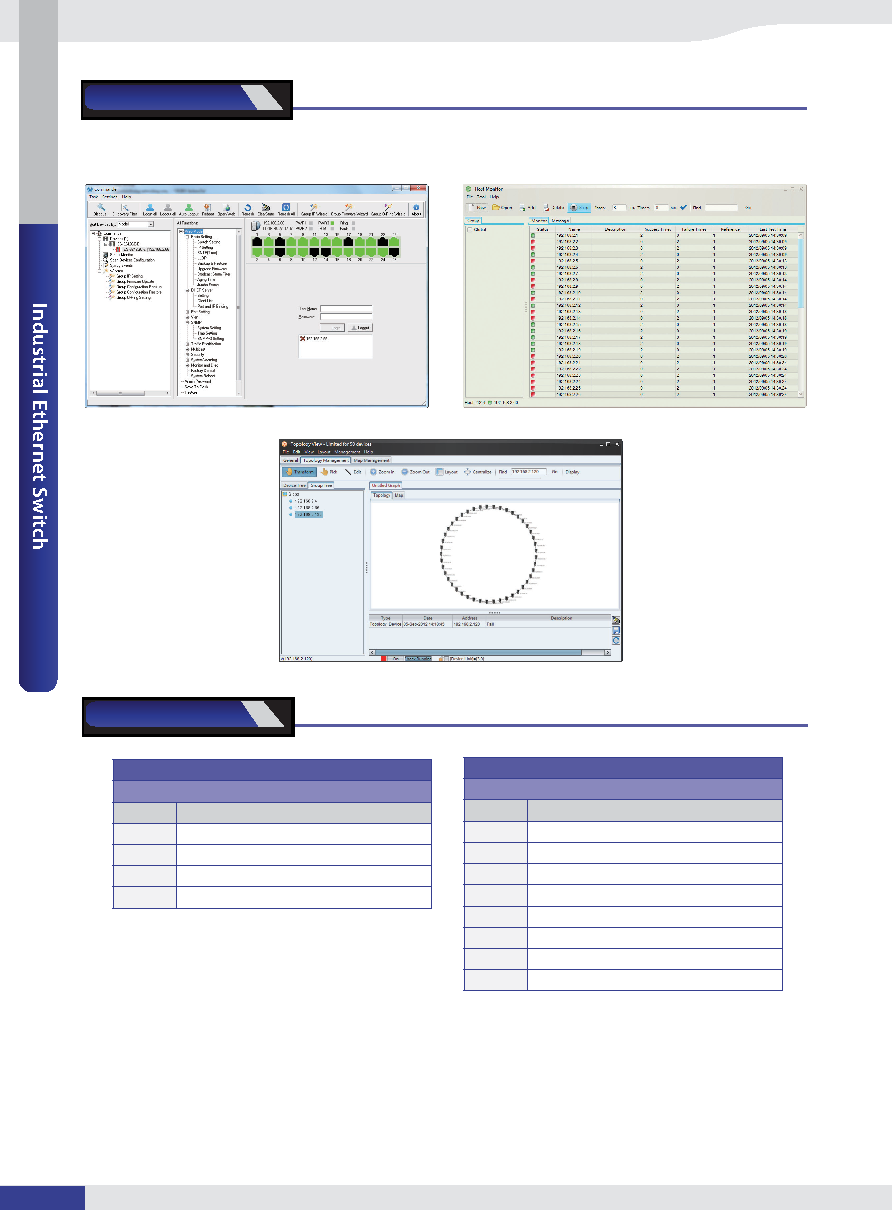

ORing's switches are intelligent switches. Different from other traditional redundant switches, ORing provides a set of Windows utility (Open-Vision) for

user to manage and monitor all of industrial Ethernet switches on the industrial network.

Open-Vision

Commander

TopologyView

Host Monitor

PoE Pin Definition

10/100Base-T(X) P.S.E. RJ-45 Port

RJ-45 Pin Definition

Pin No.

Description

#1

TD+ with PoE Power input +

#2

TD- with PoE Power input +

#3

RD+ with PoE Power input -

#6

RD- with PoE Power input -

1000Base-T P.S.E. RJ-45 Port

RJ-45 Pin Definition

Pin No.

Description

#1

BI_DA+ with PoE Power input +

#2

BI_DA- with PoE Power input +

#3

BI_DB+ with PoE Power input -

#4

BI_DC+

#5

BI_DC-

#6

BI_DB- with PoE Power input -

#7

BI_DD+

#8

BI_DD-

Industrial Ethernet Switch Rack-Mount Managed Gigabit PoE Ethernet Switch

v1.1a/ Apr, 2014
