IS25LP032D

IS25WP032D

Integrated Silicon Solution, Inc.- www.issi.com

Rev. A12

08/04/2020

8.27 READ EXTENDED READ PARAMETERS OPERATION (RDERP, 81h)

Prior to, or after setting Extended Read Register, the data of the Extended Read Register can be confirmed by the

RDERP command. The instruction is only applicable for the volatile Extended Read Register, not for the non-

volatile Extended Read Register.

During the execution of a Program, Erase or Write Non-Volatile Register operation, the RDERP instruction will be

executed, which can be used to check the progress or completion of an operation by reading the WIP bit.

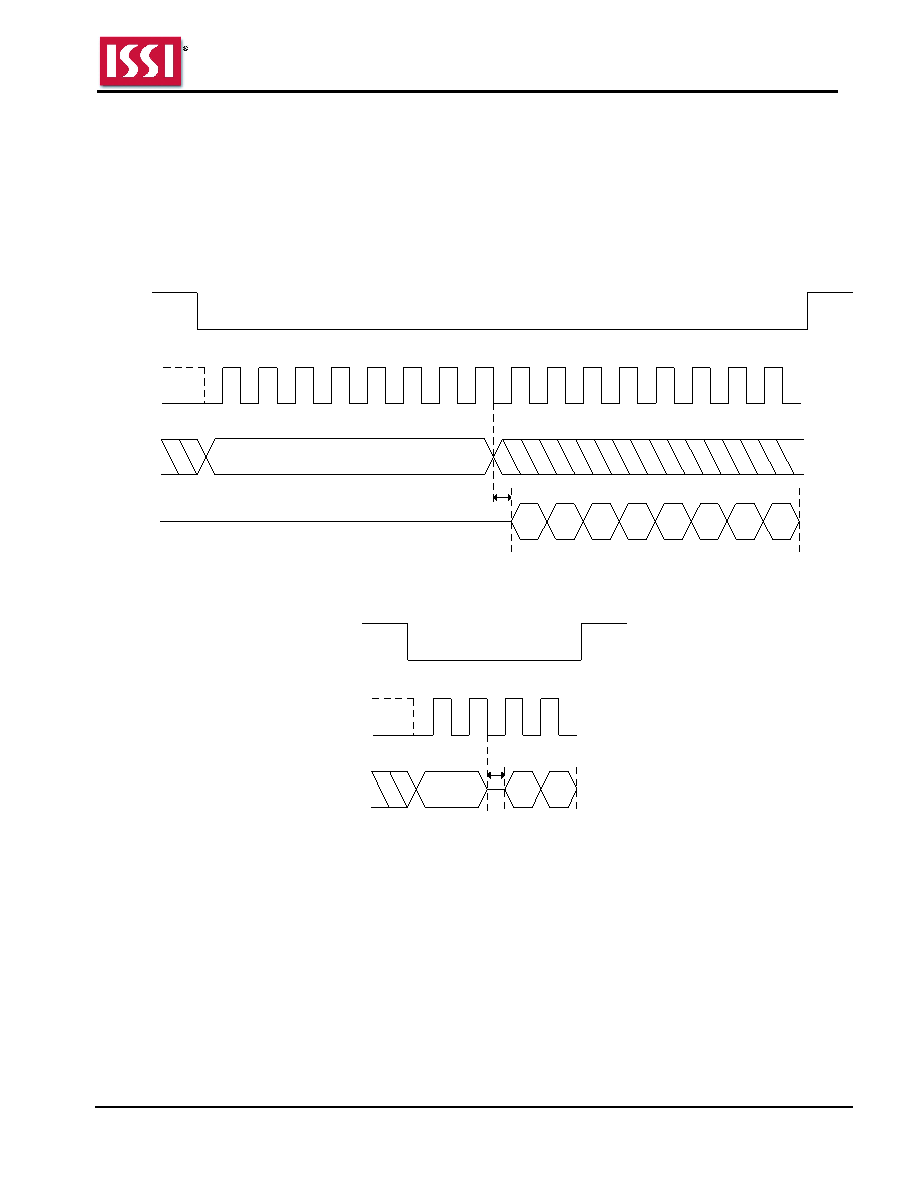

Figure 8.46 Read Extended Read Parameters Sequence In SPI Mode

Instruction = 81h

CE #

SCK

Data Out

Mode 3

Mode 0

Figure 8.47 Read Extended Read Parameters Sequence In QPI Mode

81h

Mode 3

Mode 0

7:4

3:0

CE#

SCK

IO[3:0]

Data Out
