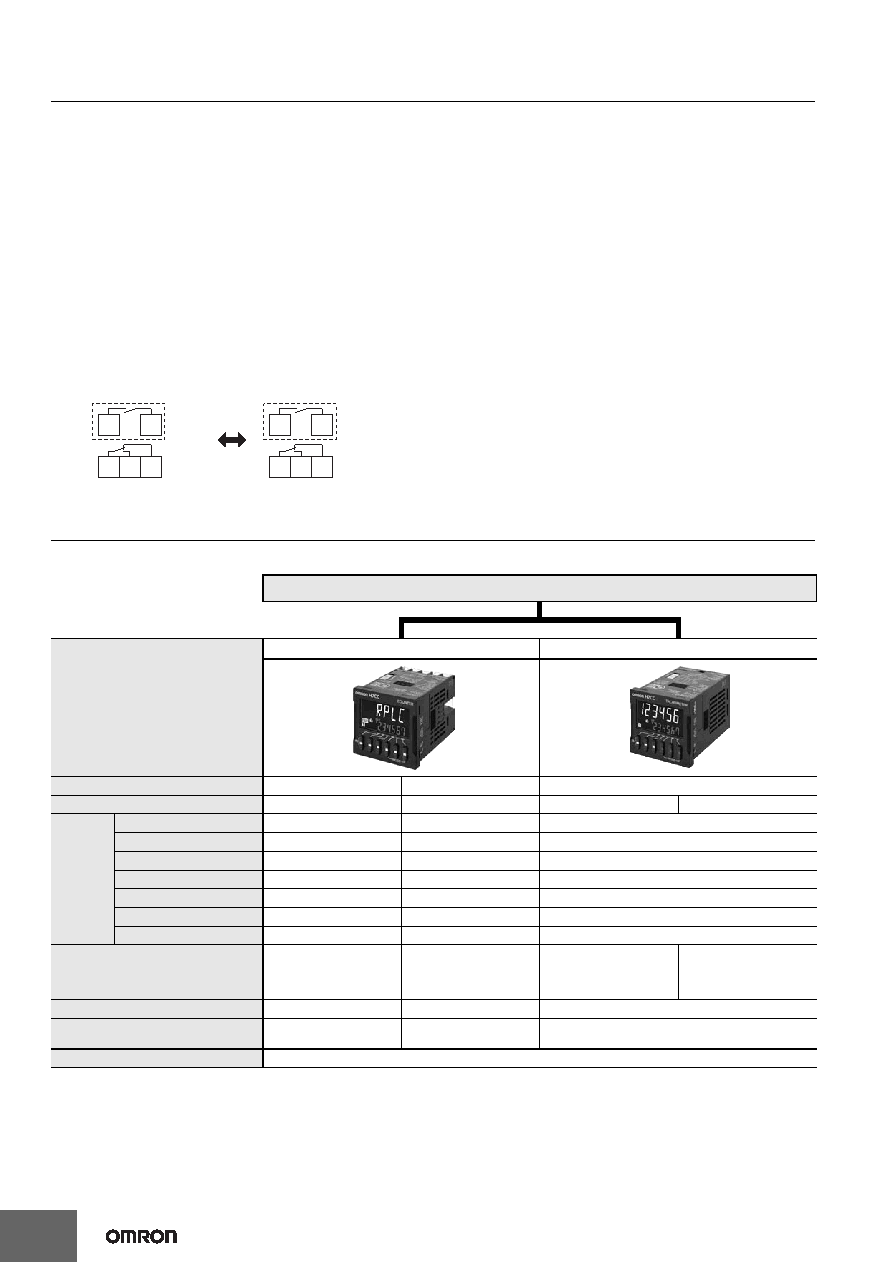

H7CC

Other Features

Equipped with a Key Protect Function

Any abnormality in the device due to malfunctioning or setting errors

can be prevented.

Follows the Ratings, Characteristics, and

Functionality of the H7CX-N

The H7CC follows the ratings, characteristics, and functionality of the

H7CX-N. Other than the H7CC-A8

@, all models are equipped with

power supply to external devices, which reduces the load on wiring.

Output Allocation Function

The allocation of outputs 1 and 2 (OUT1 and OUT2) can be changed.

In the conventional 2-stage output models, output 1 (OUT1) was fixed

as SPST, and output 2 (OUT2) was fixed as SPDT, however, in the

H7CC, the allocation of outputs 1 and 2 (OUT1 and OUT2) can be

changed to SPST or SPDT, which reduces the man-hours involved

when it is necessary to change the wiring.

Output ON/OFF Inversion Function

Conventionally, the output turns ON when the set value is reached,

however, when this function is used, the output can be turned OFF

when the set value is reached. As a result, the man-hours involved in

checking the wiring can be reduced.

Memory Backup Function

Conversion from the H7CN/H7AN is supported by enabling the

setting of the present value and the output state memory backup.

H7AN Compatibility Function

Conversion from the H7AN is supported by enabling the setting to

start counting from 999999 when the present value being

decremented exceeds 0.

Model Number Structure

Model Configuration

* Set the tachometer input mode from the function setting mode to switch to the tachometer function.

Output 1

(OUT1)

Output 2

(OUT2)

Output 2

(OUT2)

Output 1

(OUT1)

345

H7CC Series

Model

H7CC-A Series Digital Counter

H7CC-R Series Digital Tachometer

Classification

Preset counter

Preset counter/Tachometer

Tachometer

Model

H7CC-A

H7CC-AW

@/AU@

H7CC-R11

H7CC-R11W

Function

1-stage preset counter

Yes

2-stage preset counter

Yes

Total and preset counter

Yes

Batch counter

Yes

Dual counter

Yes

Twin counter

Yes

Tachometer

Yes

Tachometer Input

---

1 input or 2 inputs

(independent measurements,

differential, absolute ratio

value and error ratio value)

Yes

1 input

Yes

2 inputs

(independent measurement

only)

Settings

1-stage

2-stage

1-stage

External connections

8-pin socket, 11-pin socket,

Screw terminals

11-pin socket

Display digits

6 digits
