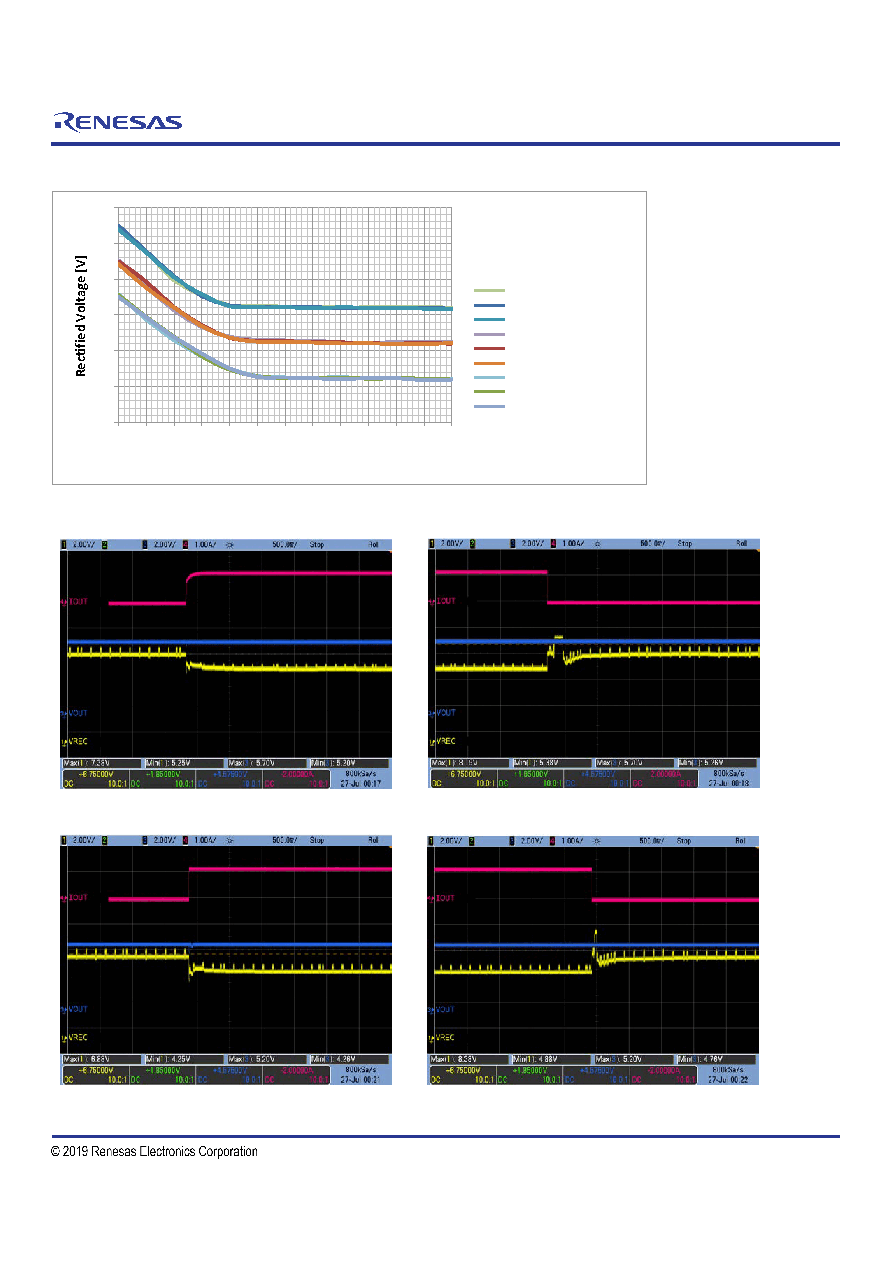

Figure 8. Rectified Voltage vs Output Load

Figure 9. Load Transient: VOUT = 5.5V, 0A  1.2A Figure 10. Load Transient: VOUT = 5.5V, 1.2A  0A

Figure 11. Load Transient: VOUT = 5V, 0A  1.2A

Figure 12. Load Transient: VOUT = 5V, 1.2A  0A

4

4.5

5

5.5

6

6.5

7

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2

Output Load [A]

Vout = 5.5V [WPC mode] Ta=0C

Vout = 5.5V [WPC mode] Ta=26C

Vout = 5.5V [WPC mode] Ta=85C

Vout = 5V [WPC mode] Ta=0C

Vout = 5V [WPC mode] Ta=26C

Vout = 5V [WPC mode] Ta=85C

Vout = 4.5V [WPC mode] Ta=0C

Vout = 4.5V [WPC mode] Ta=26C

Vout = 4.5V [WPC mode] Ta=85C
