Project

data

Import

Export

Concurrent development of ladder and HMI

Device data of the NA Series can be imported from and exported to the project file.

When the controller designer and HMI designer develop a machine concurrently, the screen data can be merged

with the controller project.

Controller design

(ladder program)

Project master data management.

NA device data is merged with

project data.

Integrated development environment

Displaying editors on one screen

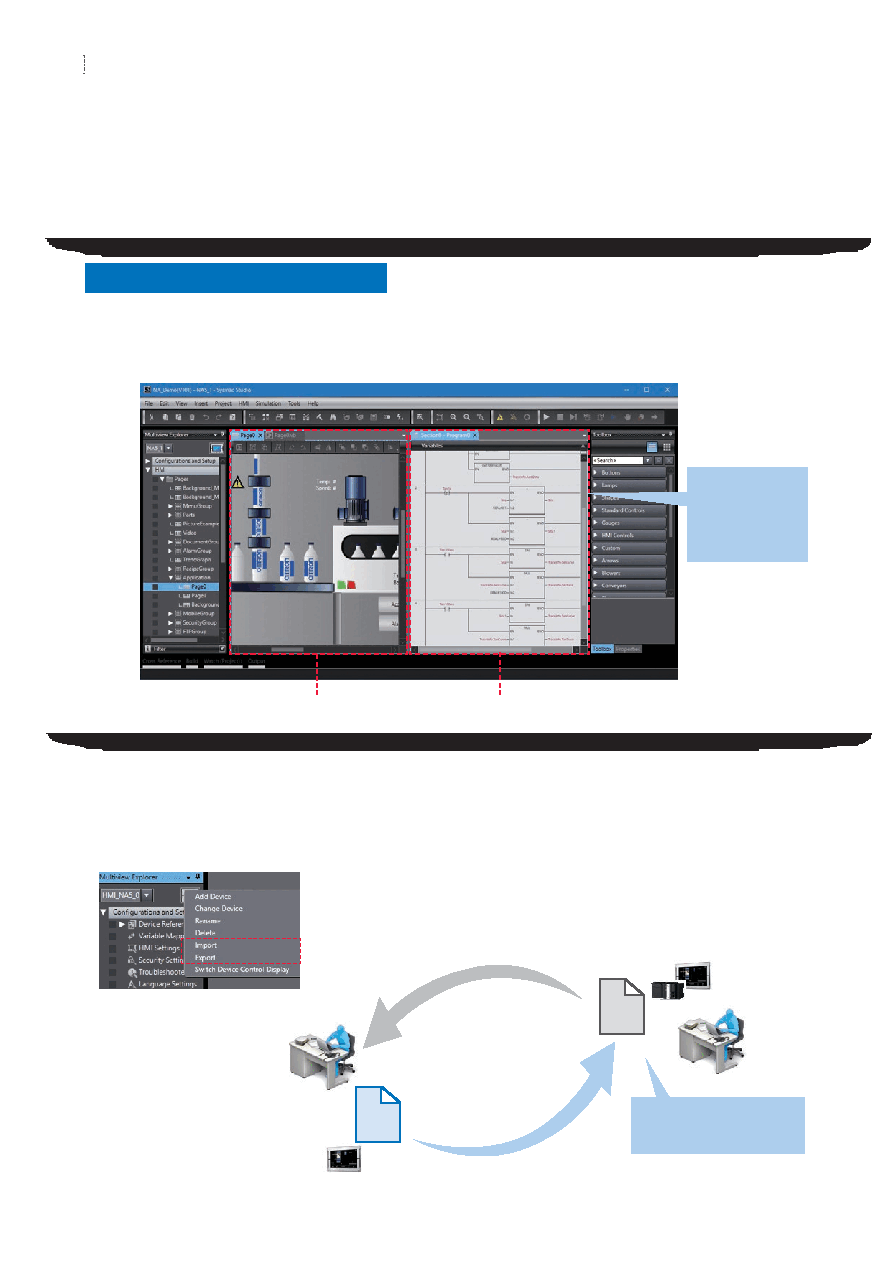

The NA HMI Editor and NJ/NX/NY Controller Editor can be displayed on one screen.

This eliminates the need to switch between screens, making the design easier and faster.

Edit the screen while

checking controller

settings.

• I/O allocation

• Variable table

• Data type

HMI Editor

Controller Editor

Usability: Design

- Simple screen design

Sharing data between the NA Series and the NJ/NX/NY Series in real time

on the Sysmac Studio increases design productivity.

Programming after sharing

merged project data

Updated

NA device

data

HMI design
