NA series

31

*1. The serial port is for future expansion.

Note: 1. For information on the product whose model number does not end with -V1, refer to the Programmable Terminal NA Series Datasheet

(Cat. No. V413).

Supported Devices

No.

Name

Description

(a)

Battery cover

Open this cover to replace the Battery.

(b)

ID information label

You can check the ID information of the NA Unit.

(c)

SD Memory Card connector

Insert an SD Memory Card here.

(d)

Protective ground terminal

Use for protective grounding.

(e)

Ethernet port 1

Connect a device other than the Sysmac Studio.

Ethernet port 2

Connect mainly the Sysmac Studio.

(f)

Serial port

*1

For future expansion.

(g)

USB host port

Connect this port to a USB Memory Device, keyboard, mouse, etc.

(h)

USB slave port

Connect the Sysmac Studio or other devices.

(i)

Reset switch

Use this switch to reset the NA Unit.

(j)

DC input terminals

These are the power supply terminals. Connect the accessory power supply connector and supply power.

(k)

Battery connector

Connect the connector on the backup Battery here.

(l)

DIP switch

Used for system recovery. (The DIP switch is on a PCB that is accessed by opening the Battery cover.)

In other cases, do not change any of the factory settings of the pins on the DIP switch.

(m)

Battery

This is the battery to backup the clock information in the NA Unit.

Manufacturer

Models

Connection method

Communications driver

OMRON

CK3E-1

@10

CK3M-CPU1

@1

Built-in Ethernet port

Modbus/TCP

NX701-

@@@@

NY512-

@@@@

NX102-

@@@@

NY532-

@@@@

NX1P2-

@@@@

NJ501-

@@@@

NX-CSG320

NJ301-

@@@@

NJ101-

@@@@

Built-in EtherNet/IP port

Ethernet

CJ2H-CPU64/65/66/67/68-EIP

CJ2M-CPU31/32/33/34/35

Built-in EtherNet/IP port

CIP Ethernet

CJ2H-CPU64/65/66/67/68-EIP

CJ2M-CPU31/32/33/34/35

CJ1W-EIP21

CJ2H-CPU64/65/66/67/68-EIP

CJ2M-CPU31/32/33/34/35

Built-in EtherNet/IP port

FINS Ethernet

CJ1H-CPU65H/66H/67H

CJ1H-CPU65H/66H/67H-R

CJ1G-CPU42H/43H/44H/45H

CJ1M-CPU11/12/13/21/22/23

CJ2H-CPU64/65/66/67/68(-EIP)

CJ2M-CPU11/12/13/14/15

CJ2M-CPU31/32/33/34/35

CJ1W-ETN21

CJ1W-EIP21

12

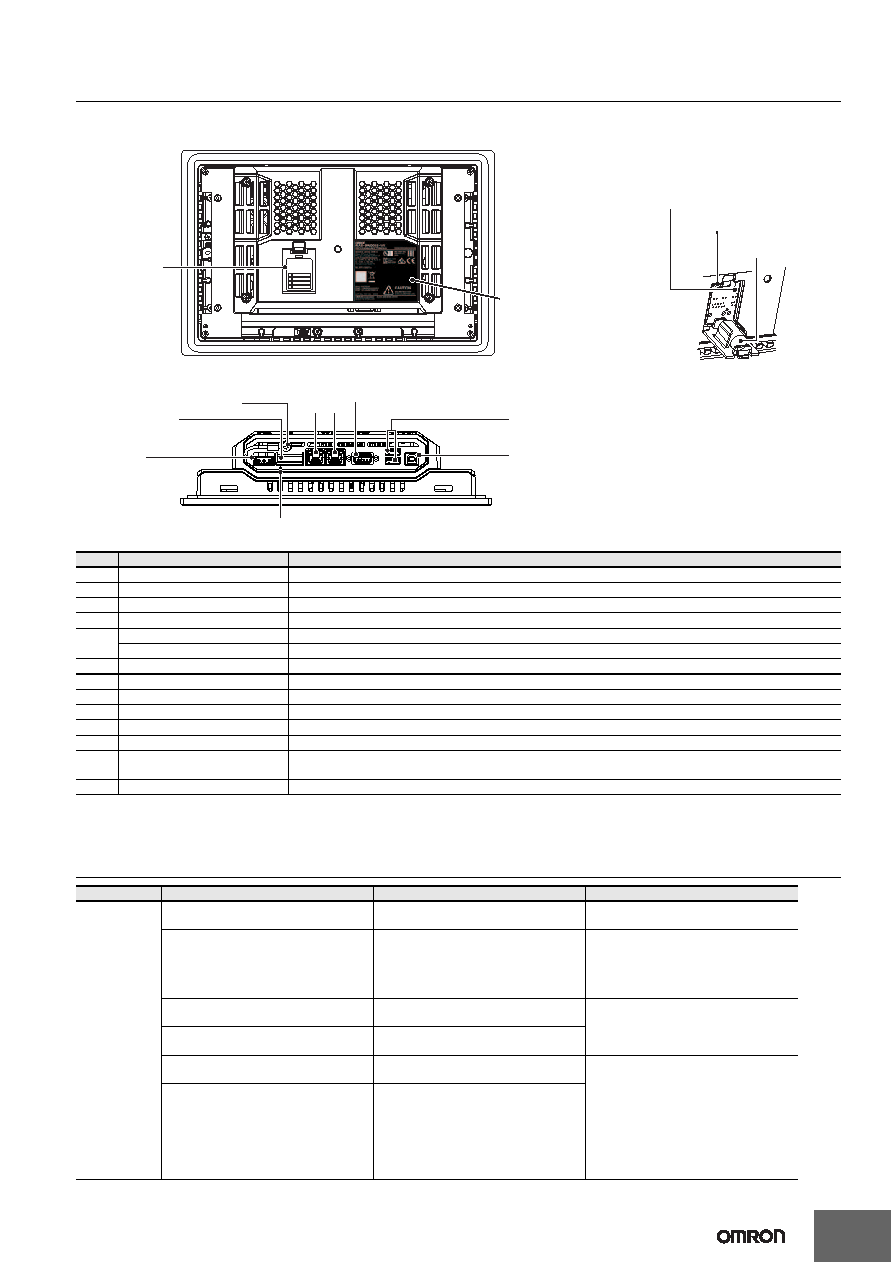

(b) ID information label

(a) Battery cover

Back Panel

Bottm Panel

(c) SD Memory

Card connector

(j) DC input

terminals

(d) Protective ground connector

(e) Ethernet ports

(i) Reset switch

(f) Serial port (for future expansion)

(g) USB host port

(h) USB slave port

(k) Battery connector

(m) Battery

(l) DIP switch

(Appearance

with the Battery Cover Open)
