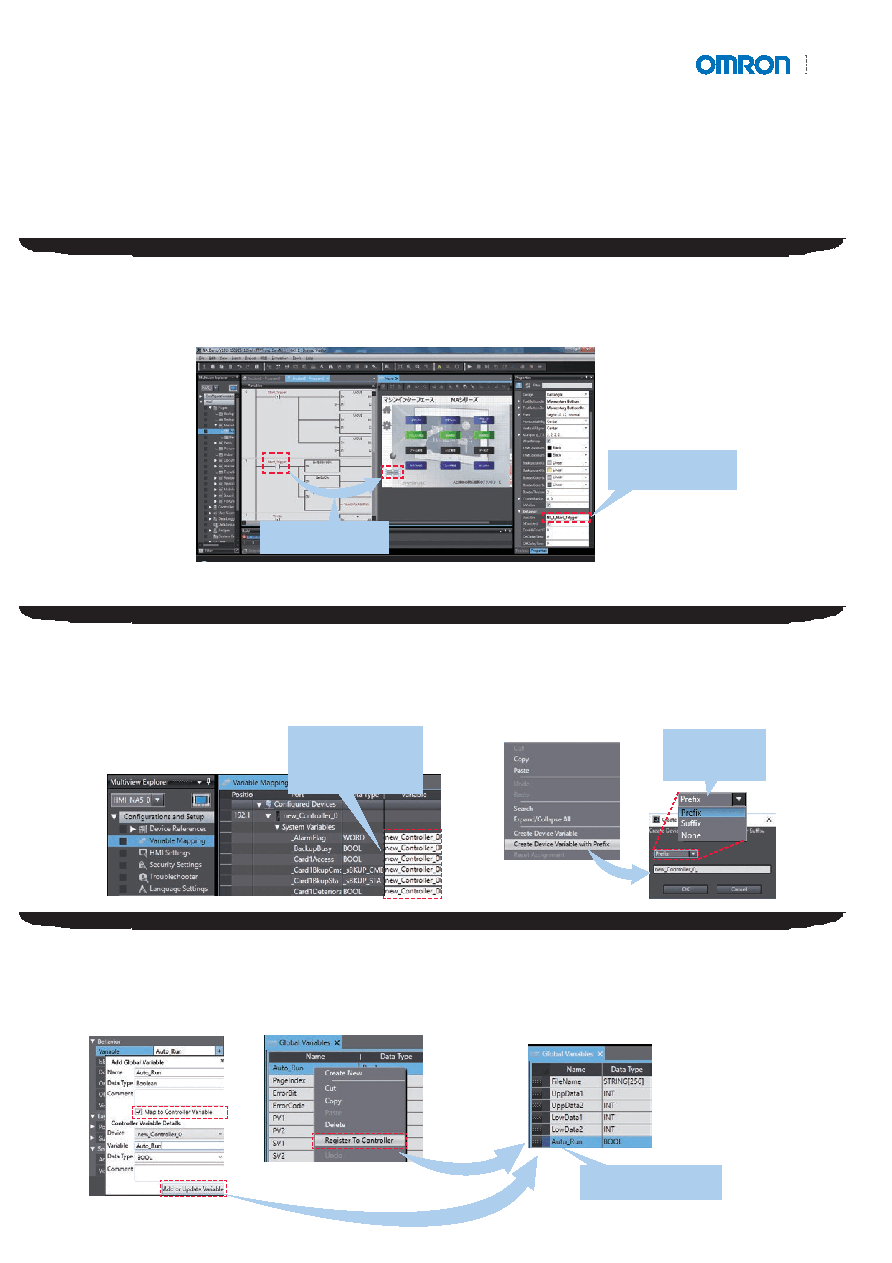

Adding an object by drag & drop

Just drag a variable from the Ladder Editor in the NA Page Editor to add an object. The variable is automatically set

in the property of the added object.*

This eliminates the need to create and allocate HMI variables, which facilitates design work.

* When an input is selected, a Button object is added automatically.

When an output is selected, a Lamp object is added automatically.

The selected variable is

set in the added object

An object is automatically

added by drag & drop

Improved mapping of controller variables to NA Series

・NJ/NX/NY Controller variables can be automatically mapped to the NA HMI.

This improves design efficiency and ensures that all added variables are mapped.

・The device name generation rule can be customized in manual mapping. Variables can be mapped according to

　your desired rule.

Easy to add NA variables to controller

Variables added to the NA HMI can be registered and mapped to the controller variable table from the properties

for objects or the NA global variable table.

Going back to the controller global variable table to add variables is no longer required, saving your design time.

From NA properties

From NA global variable table

Add to the controller global

variable table

Device names can

be customized in

manual mapping.

・Adding controller

・Adding global variable

・Adding HMI

Automatically mapped.
