the TX_OCL bit of the transmitter settings register (the default

upon reset). If only external terminations are provided (if the

internal terminations are disabled), set the output current level

to 10 mA by programming the TX_OCL bit of the transmitter

settings register. The high speed outputs must be disabled if

there are no output termination resistors present in the system.

The output pre-emphasis can be manually configured to provide

one of four different levels of high frequency boost. The specific

boost level is selected by programming the TX_PE bits of the

transmitter settings register. No specific cable length is suggested

for a particular pre-emphasis setting because cable performance

varies widely between manufacturers.

SWITCHING MODE

The AD8196 behaves like a 2:1 HDMI/DVI link multiplexer by

routing groups of four TMDS input channels to the four

channel output. In this mode, the user selects the group of high

speed source signals (A or B) that is routed to the output by

programming the HS_CH bit of the high speeds modes register

as shown in Table 7. The group of low speed auxiliary source

signals (AUX_A or AUX_B) that is routed to the common

output is separately set by programming the AUX_CH bit of the

auxiliary device register as shown in Table 9.

AUXILIARY LINES SWITCHING

The auxiliary (low speed) lines have no amplification. They are

routed using a passive switch that is bandwidth compatible with

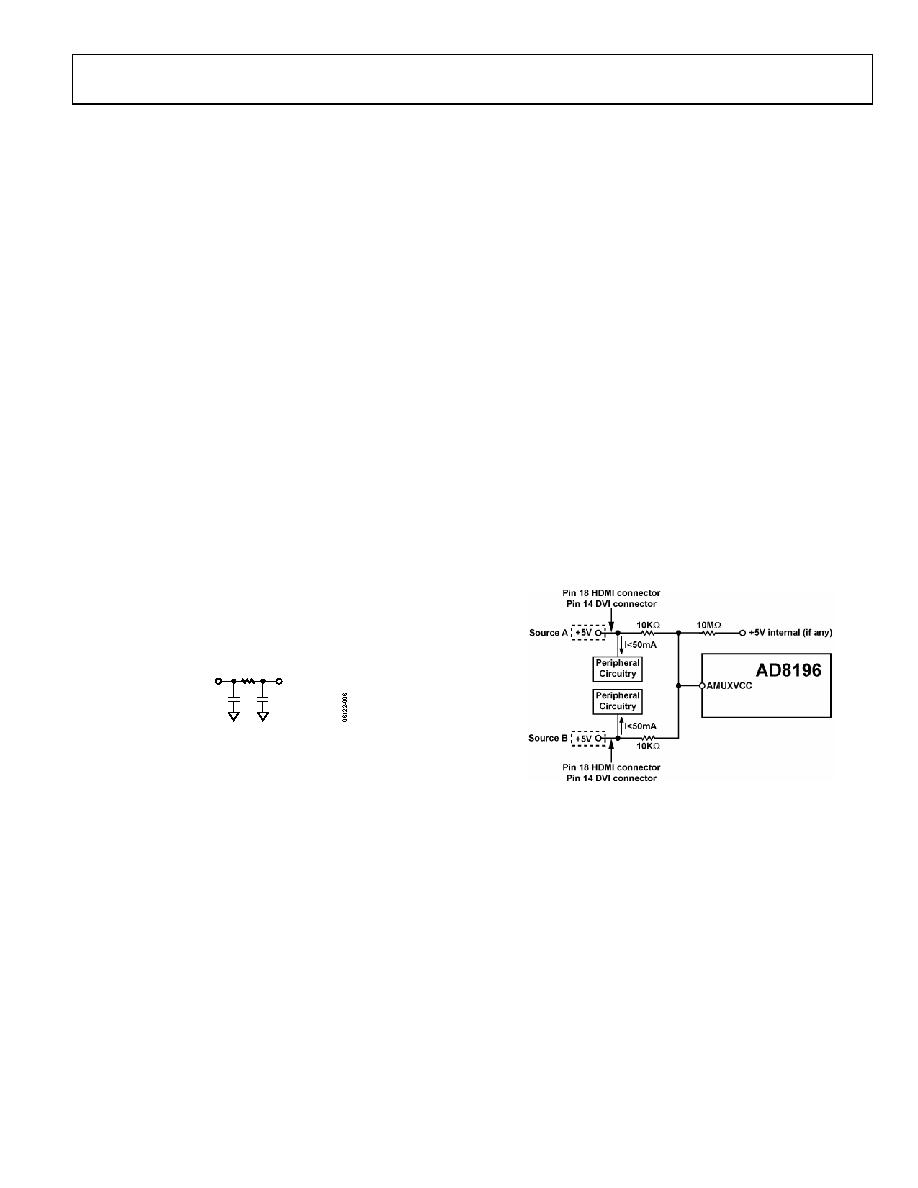

connection is shown in Figure 27.

AUX_COM0

AUX_A0

Figure 27. Auxiliary Channel Simplified Schematic

Showing AUX_A0 to AUX_COM0 Routing

When turning off the AD8196, care needs to be taken with

the AMUXVCC supply to ensure that the auxiliary multiplexer

pins are in a high impedance state. A scenario that illustrates

this requirement is one where the auxiliary multiplexer is used

to switch the display data channel (DDC) bus. In some applica-

tions, additional devices can be connected to the DDC bus

(such as an EEPROM with EDID information) upstream of the

AD8196. Extended display identification data (EDID) is a VESA

standard-defined data format for conveying display configuration

information to sources to optimize display use. EDID devices

may need to be available via the DDC bus, regardless of the

state of the AD8196 and any downstream circuit. For this

configuration, the auxiliary inputs of the powered down

AD8196 need to be in a high impedance state to avoid pulling

down on the DDC lines and preventing these other devices

from using the bus.

When the AD8196 is powered from a simple resistor network,

as shown in Figure 28, it uses the 5 V supply that is required

from any HDMI/DVI source to guarantee high impedance of

the auxiliary multiplexer pins. The AMUXVCC supply does not

draw any static current; therefore, it is recommended that the

resistor network tap the 5 V supplies as close to the connectors

as possible to avoid any additional voltage drop.

This precaution does not need to be taken if the DDC

peripheral circuitry is connected to the bus downstream of

the AD8196.

Figure 28. Suggested AMUXVCC Power Scheme
