TYPICAL PERFORMANCE CHARACTERISTICS

VS = 5 V, ZO = 50 Ω, single-ended input drive, VOUT connected to VSET, VTGT = 0.8 V, CLPF = 0.1 μF, TA = +25°C (black), −40°C (blue),

+85°C (red), +125°C (orange) where appropriate. Error referred to the best fit line (linear regression) from − 10 dBm to − 40 dBm, unless

otherwise indicated. Input RF signal is a sine wave (CW), unless otherwise indicated.

–6

–5

–4

–3

–2

–1

0

1

2

3

4

5

6

0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

–60

–50

–40

–30

–20

–10

0

10

PIN (dBm)

TADJ = 0.5V

CALIBRATION AT 0dBm, –45dBm, AND –60dBm

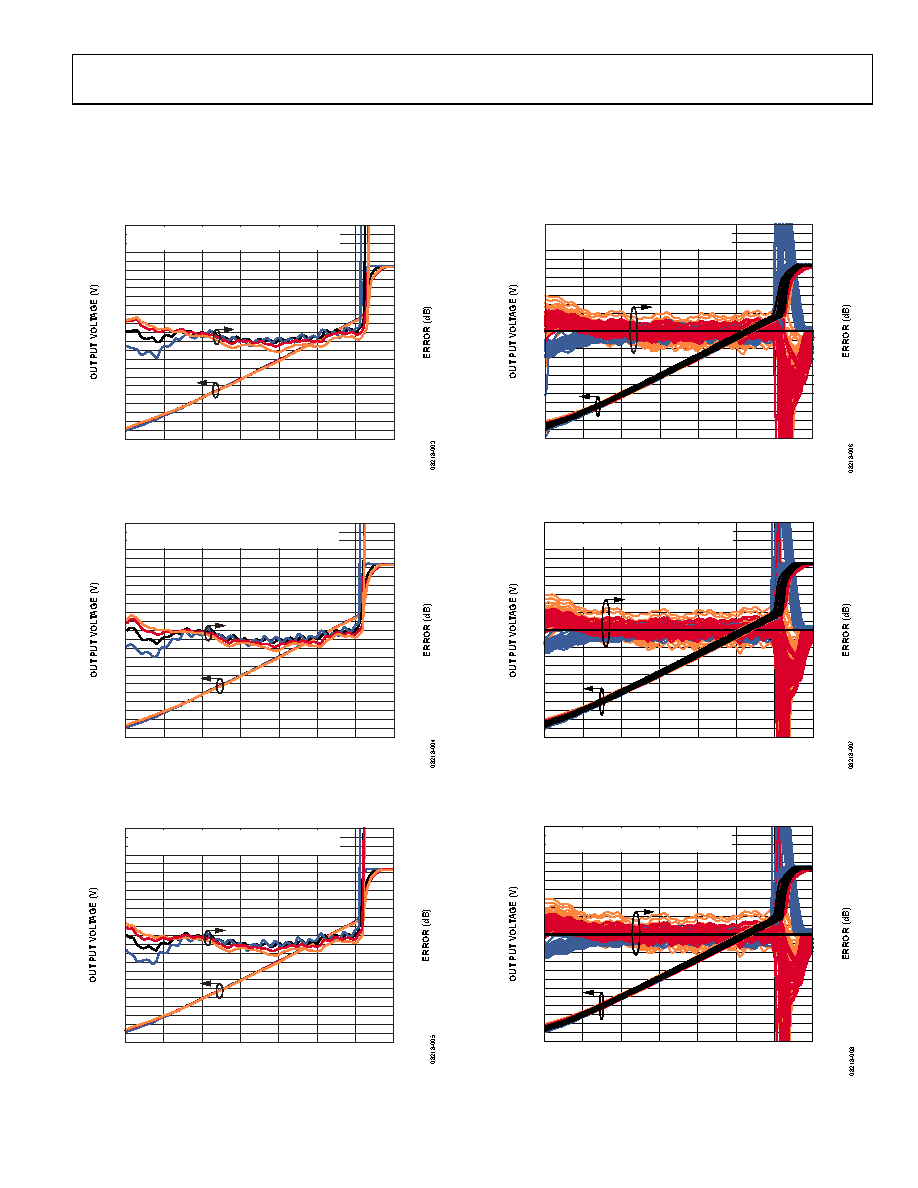

Figure 3. Typical VOUT and Log Conformance Error with Respect to 25°C Ideal

Line over Temperature vs. Input Amplitude at 100 MHz, CW

–6

–5

–4

–3

–2

–1

0

1

2

3

4

5

6

0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

–60

–50

–40

–30

–20

–10

0

10

PIN (dBm)

TADJ = 0.4V

CALIBRATION AT 0dBm, –45dBm, AND –60dBm

Figure 4. Typical VOUT and Log Conformance Error with Respect to 25°C Ideal

Line over Temperature vs. Input Amplitude at 700 MHz, CW

–6

–5

–4

–3

–2

–1

0

1

2

3

4

5

6

0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

–60

–50

–40

–30

–20

–10

0

10

PIN (dBm)

TADJ = 0.4V

CALIBRATION AT 0dBm, –45dBm, AND –60dBm

Figure 5. Typical VOUT and Log Conformance Error with Respect to 25°C Ideal

Line over Temperature vs. Input Amplitude at 900 MHz, CW

–6

–5

–4

–3

–2

–1

0

1

2

3

4

5

6

0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

–60

–50

–40

–30

–20

–10

0

10

PIN (dBm)

VTADJ = 0.5V

REPRESENTS 55 DEVICES FROM 2 LOTS

Figure 6. Distribution of Error with Respect to 25°C over Temperature vs.

Input Amplitude, CW, Frequency = 100 MHz

–6

–5

–4

–3

–2

–1

0

1

2

3

4

5

6

0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

–60

–50

–40

–30

–20

–10

0

10

PIN (dBm)

VTADJ = 0.4V

REPRESENTS 55 DEVICES FROM 2 LOTS

Figure 7. Distribution of Error with Respect to 25°C over Temperature vs.

Input Amplitude, CW, Frequency = 700 MHz

–6

–5

–4

–3

–2

–1

0

1

2

3

4

5

6

0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

–60

–50

–40

–30

–20

–10

0

10

PIN (dBm)

VTADJ = 0.4V

REPRESENTS 55 DEVICES FROM 2 LOTS

Figure 8. Distribution of Error with Respect to 25°C over Temperature vs.

Input Amplitude, CW, Frequency = 900 MHz
