Features

•

Half-bridge topology featuring the STDRIVEG611 GaN gate driver with

integrated LDOs, separated sink/source, overcurrent protection, integrated

bootstrap diode, standby

•

Equipped with 75 mΩ typ., 650 V e-mode HEMT GaN

•

Tunable hard-on and hard-off dV/dt, set at 10 V/ns typ. for motor control

applications

•

10.6 to 18 V (12 V typ.) VCC supply voltage

•

Onboard adjustable deadtime generator to convert a single PWM signal in

independent high-side and low-side inputs with deadtime

•

Separated inputs with external deadtime can also be used

•

Programmable overcurrent protection with SmartShutDown, set at 9.5 A

•

Footprint for, optional, additional high-voltage bulk capacitor and bootstrap

diode

•

Onboard 3.3 V regulator for external circuitry supply

•

RoHS compliant.

Description

The STDRIVEG611 is a high-speed, half-bridge gate driver optimized to drive high-

voltage, enhanced mode, GaN HEMTs.

It features separated high current sink/source gate driving pins, integrated LDOs,

undervoltage, bootstrap diode, overcurrent protection with SmartShutDown,

overtemperature, fault and shutdown pins, and standby to fully support hard

switching topologies in a 4x5mm QFN package.

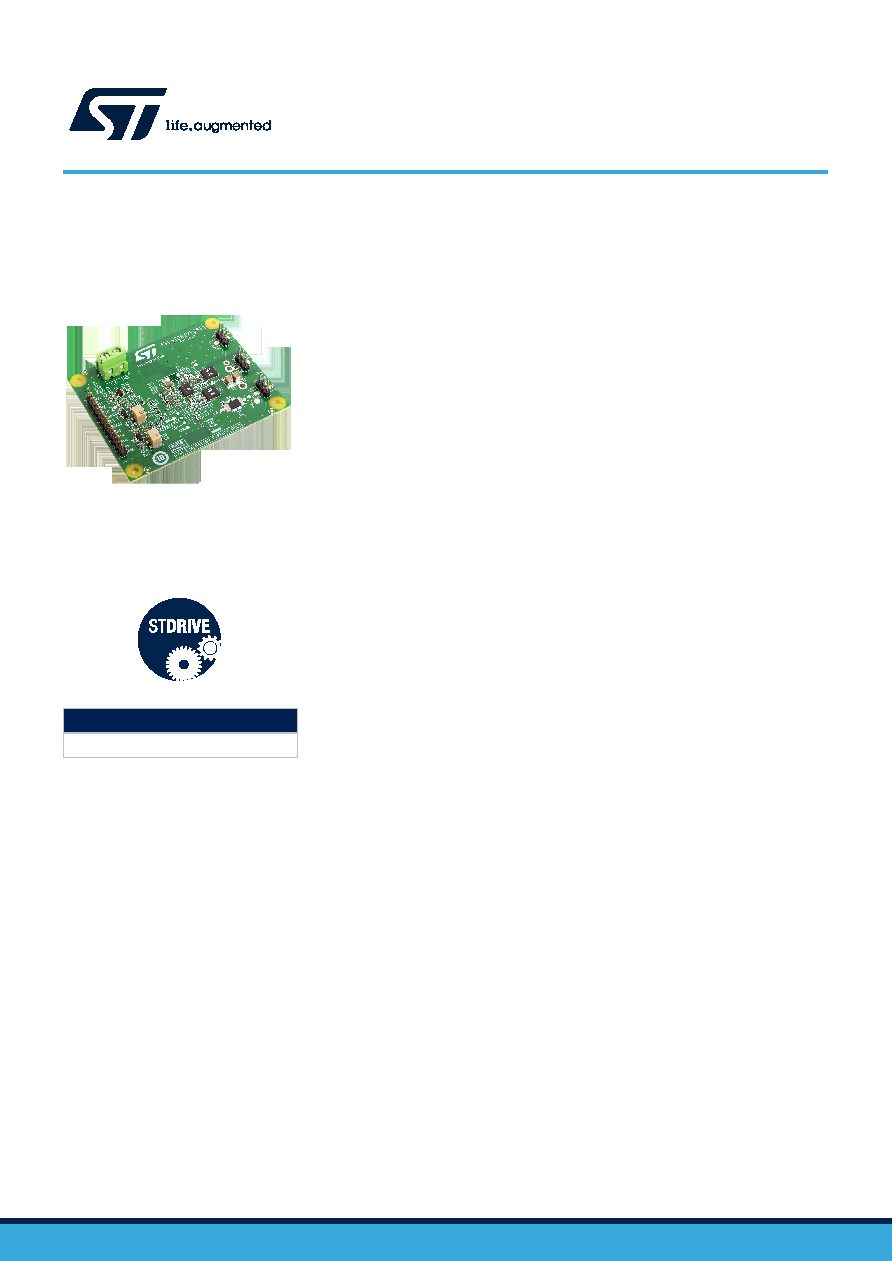

The EVLSTDRIVEG611 board is easy to use and quick and adapt for evaluating the

characteristics of the STDRIVEG611 driving the SGT120R65AL 75 mΩ typ., 650 V E-

Mode GaN switches in the 5x6 mm QFN package.

It provides an onboard programmable deadtime generator and a 3.3 V linear voltage

regulator to supply external logic like microcontrollers.

Spare footprints are also included to allow customizing the board for the final

application, such as separate LIN and HIN input signals or single PWM signal.

The EVLSTDRIVEG611 is 56 x 70 mm wide, 2 layers, 2 Oz, FR-4 PCB, resulting in

23 °C/W Rth(J‑A) (equivalent to 46 °C/W for each GaN) in still air to evaluate high

power applications.

Product status link

EVLSTDRIVEG611

Evaluation board for STDRIVEG611 600 V high-speed half-bridge gate driver

with SGT120R65AL e-mode GaN HEMT

EVLSTDRIVEG611

Data brief

DB5115 - Rev 1 - September 2024
