EV-RADAR-MMIC2 User Guide

UG-866

Rev. B | Page 11 of 28

EVALUATION AND TEST PROCEDURES

To evaluate and test the performance of the ADF5901,

ADF5904, and ADF4159, use the following procedure:

1. Install the EV-RADAR-MMIC2 evaluation software.

2. Connect the EV-ADAR-D2S board to the EV-RADAR-

MMIC2 evaluation board.

3. Connect the SDP board to the EV-RADAR-MMIC2.

4. Connect the dc blocked TX_OUT2 connector (J9) to the

spectrum analyzer.

5. Connect the 24.026 GHz, −50 dBm dc blocked signal from

the signal source to the RX4_RFIN connector (J6).

6. Run the EV-RADAR-MMIC software.

7. Select the SDP board and the EV-RADAR-MMIC2

(ADF5901, ADF5904, and ADF4159) device in the Select

Device and Connection tab of the software window.

8. The software is set with default settings for the

following setup:

a. Lock the ADF4159 to 12.0125 GHz (24.025 GHz on the

ADF5901).

b. Calibrate the ADF5901 to 24.125 GHz.

9. In the ADF5904 Controls tab, click Initialize to power up

the ADF5904.

10. In the ADF4159 Controls tab under the Main Controls

section, click Write All Registers to power up the ADF4159.

11. In the ADF5901 Controls tab, click Initialize ADF5901 to

power up and calibrate the ADF5901. See Figure 7 for a

typical setup.

12. Measure a 24.025 GHz signal on TX_OUT2 (J9) on the

spectrum analyzer

13. Measure a 1 MHz baseband output signal on the

O5 connector on the EV-ADAR-D2S board.

SDP

ADAPTOR

BOARD

POWER

SUPPLY

+5V

OSCILLOSCOPE/

SPECTRUMANALYZER

POWER

SUPPLY

+9V

–9V

SIGNAL

SOURCE

BLOCK

SPECTRUM

ANALYZER

BLOCK

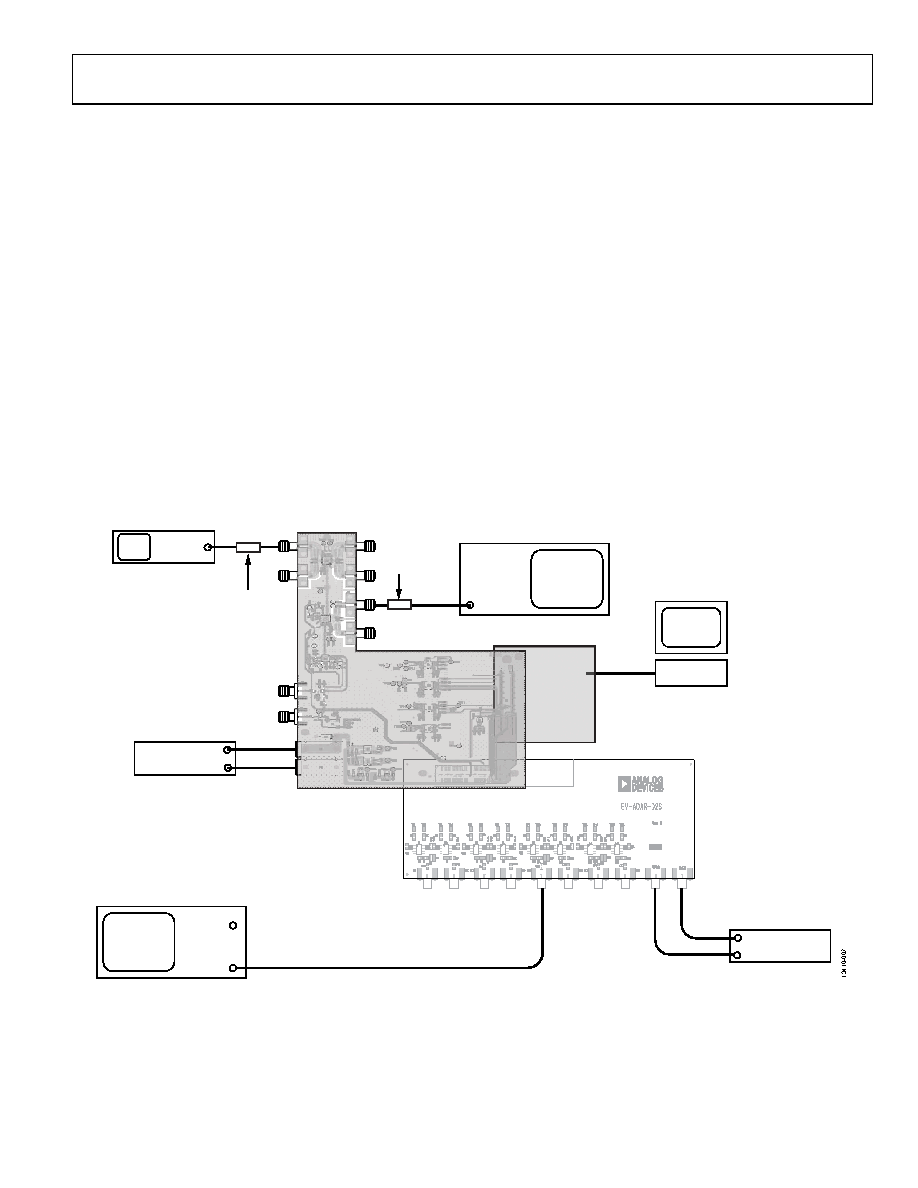

Figure 7. Typical Evaluation Setup
