AD8531/AD8532/AD8534
Rev. F | Page 6 of 20

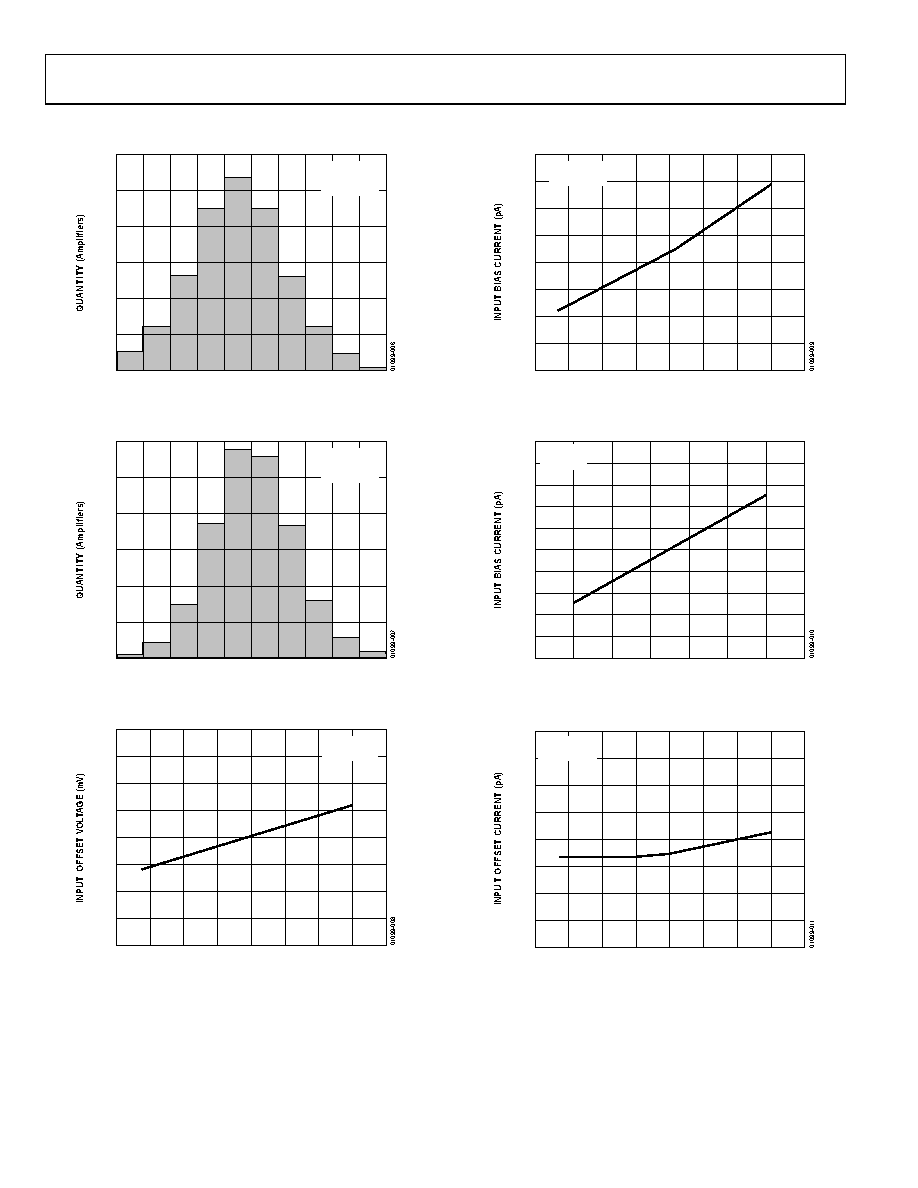

TYPICAL PERFORMANCE CHARACTERISTICS
INPUT OFFSET VOLTAGE (mV)
500
400
300
200
100
–12
–10
–8
–6
–4
–2
0
2
4
VS = 2.7V
VCM = 1.35V
TA = 25°C
Figure 6. Input Offset Voltage Distribution
INPUT OFFSET VOLTAGE (mV)
500
400
300
200
100
–12
–10
–8
–6
–4
–2
0
2
4
VS = 5V
VCM = 2.5V
TA = 25°C
Figure 7. Input Offset Voltage Distribution
TEMPERATURE (°C)
–2
–3
–4
–5
–6
–7
–8
–35
–15
5
25
45
65
85
VS = 5V
VCM = 2.5V
Figure 8. Input Offset Voltage vs. Temperature
TEMPERATURE (°C)
8
7
6
5
4
3
2
–35
–15
5
25
45
65
85
VS = 5V, 3V
VCM = VS/2
Figure 9. Input Bias Current vs. Temperature
COMMON-MODE VOLTAGE (V)
8
7
6
5
4
3
2
01
2
3
4
5
VS = 5V
TA = 25°C
Figure 10. Input Bias Current vs. Common-Mode Voltage
TEMPERATURE (°C)
5
4
3
2
1
0
–1
–2
6
–35
–15
5
25
45
65
85
VS = 5V, 3V
VCM = VS/2
Figure 11. Input Offset Current vs. Temperature
