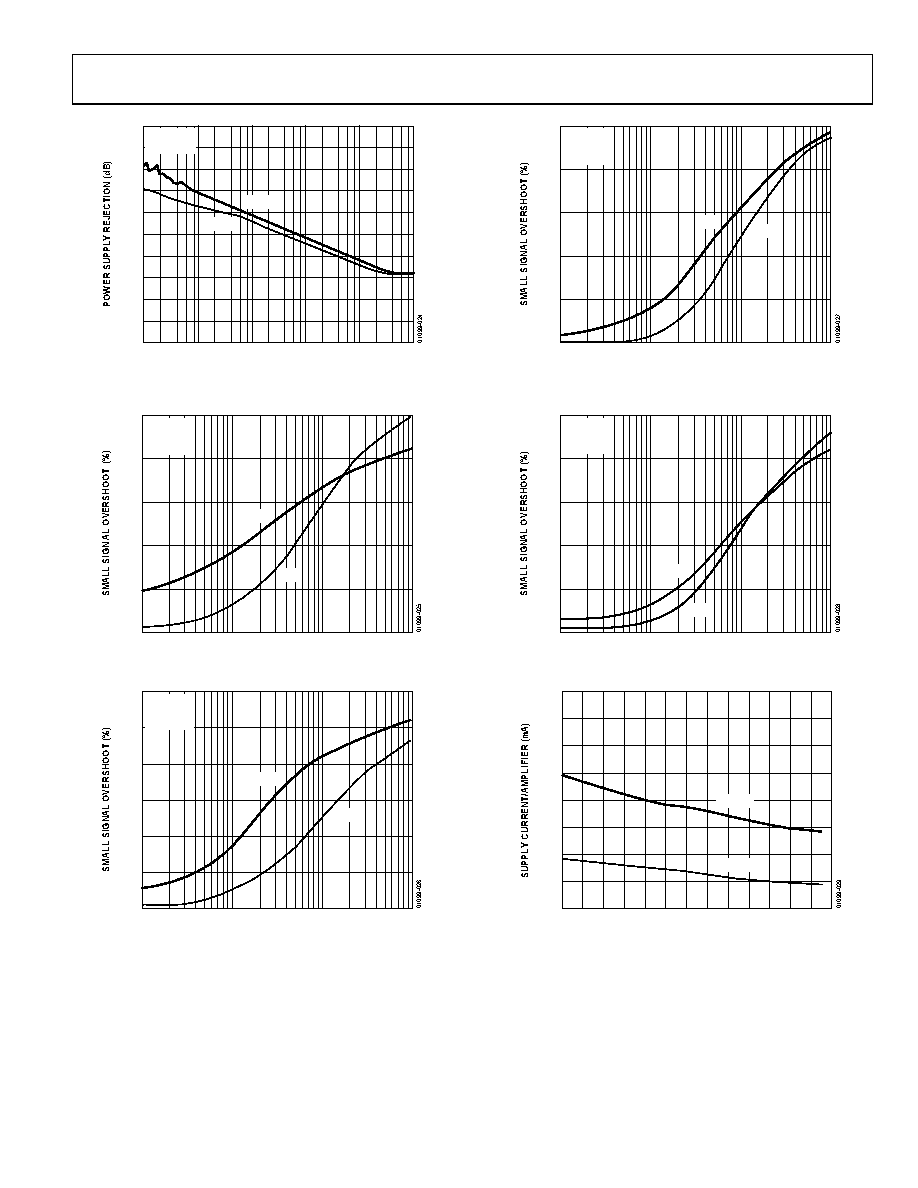

AD8531/AD8532/AD8534
Rev. F | Page 9 of 20
FREQUENCY (Hz)
140
120
40
60
80
100
20
0
–20
–40
–60
100
1k
10k
100k
1M
10M
VS = 5V
TA = 25°C
PSSR+
PSSR–
Figure 24. Power Supply Rejection vs. Frequency
CAPACITANCE (pF)
50
40
30
10
20
0
10
100
1000
10000
VS = 2.7V
TA = 25°C
RL = 2kΩ
–OS
+OS
Figure 25. Small Signal Overshoot vs. Load Capacitance
CAPACITANCE (pF)
60
50
40
30
10
20
0
10
100
1000
10000
VS = 5V
TA = 25°C
RL = 2kΩ
–OS
+OS
Figure 26. Small Signal Overshoot vs. Load Capacitance
CAPACITANCE (pF)
50
40
30
10
20
0
10
100
1000
10000
VS = 5V
TA = 25°C
RL = 600Ω
–OS
+OS
Figure 27. Small Signal Overshoot vs. Load Capacitance
CAPACITANCE (pF)
50
40
30
10
20
0
10
100
1000
10000
VS = 2.7V
TA = 25°C
RL = 600Ω
–OS
+OS
Figure 28. Small Signal Overshoot vs. Load Capacitance
TEMPERATURE (°C)
0.85
0.80
0.75
0.70
0.65
0.60
0.55
0.50
0.90
–20
–40
0
20
40
60
80
VS = 5V
VS = 3V
Figure 29. Supply Current per Amplifier vs. Temperature
