Package information

In order to meet environmental requirements, ST offers these devices in ECOPACK®

packages. These packages have a lead-free second level interconnect. The category of

second level interconnect is marked on the package and on the inner box label, in

compliance with JEDEC standard JESD97. The maximum ratings related to soldering

conditions are also marked on the inner box label. ECOPACK is an ST trademark.

ECOPACK specifications are available at: www.st.com.

Figure 22.

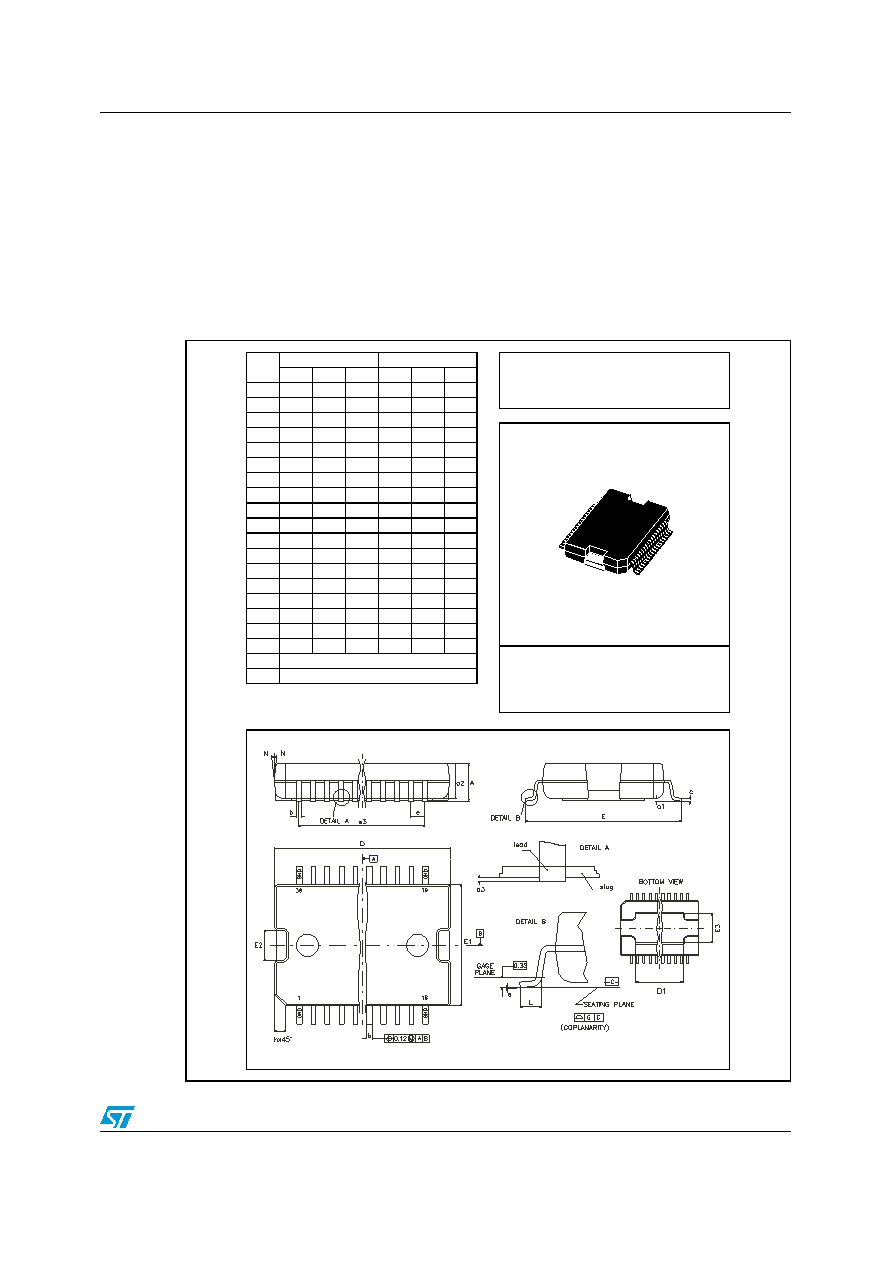

PowerSO36 mechanical data and package dimensions

OUTLINE AND

MECHANICAL DATA

DIM.

mm

inch

MIN.

TYP.

MAX.

MIN.

TYP.

MAX.

A

3.60

0.1417

a1

0.10

0.30

0.0039

0.0118

a2

3.30

0.1299

a3

0

0.10

0.0039

b

0.22

0.38

0.0087

0.0150

c

0.23

0.32

0.0091

0.0126

D

15.80

16.00 0.6220

0.6299

D1

9.40

9.80

0.3701

0.3858

E

13.90

14.5

0.5472

0.5709

E1

10.90

11.10 0.4291

0.4370

E2

2.90

0.1142

E3

5.80

6.20

0.2283

0.2441

e

0.65

0.0256

e3

11.05

0.4350

G

0

0.10

0.0039

H

15.50

15.90 0.6102

0.6260

h

1.10

0.0433

L

0.8

1.10

0.0315

0.0433

N

10˚ (max)

s

8˚ (max)

Note: “D and E1” do not include mold flash or protusions.

- Mold flash or protusions shall not exceed 0.15mm (0.006”)

- Critical dimensions are "a3", "E" and "G".

PowerSO-36
